The area of the panel or mounting surface where the gasket comes into
contact must be flat and free of scratches, pits, and other features that
prevent the gasket from sealing properly. If the panel or mounting
surface is not uniform, thick, flat, stiff, or smooth enough, then a sealant
such as silicone may be required.
NOTE: Clean and deburr the panel cutout before the HMI is installed.
Warning: The HMI requires a stiff, flat, smooth mounting
surface free of blemishes to seal properly to NEMA 4.
Mount the HMI to the Panel

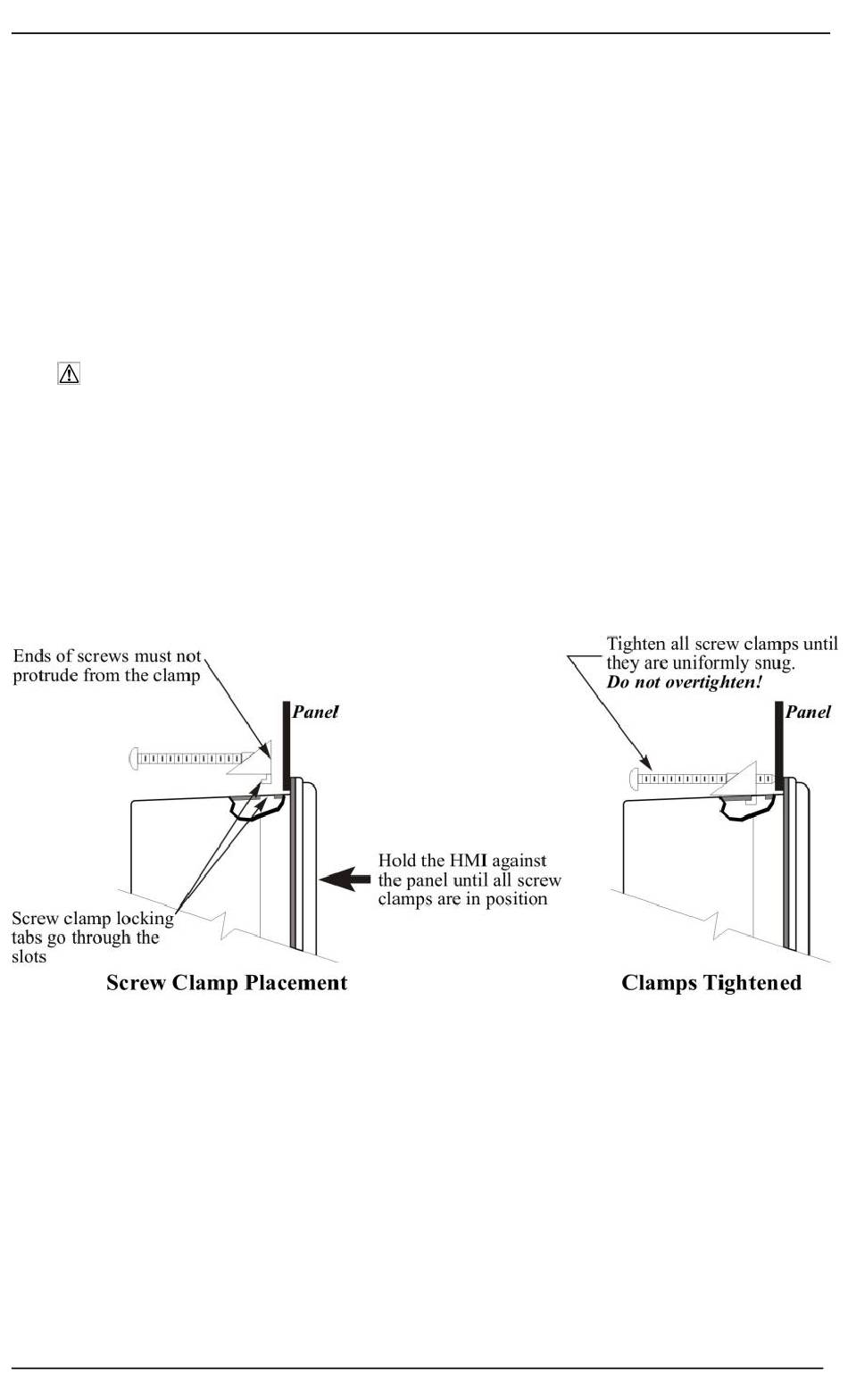

Figure 5: Installing Screw Clamps to the HMI
Note: The clamps for your model may be slightly different than shown
here, but essentially work in the same way.
STEPS:
1. Prepare the clamps for the HMI by inserting the screws into the
clamp as shown above. Position the screws so that the ends don‟t
protrude through the clamp‟s hole.
