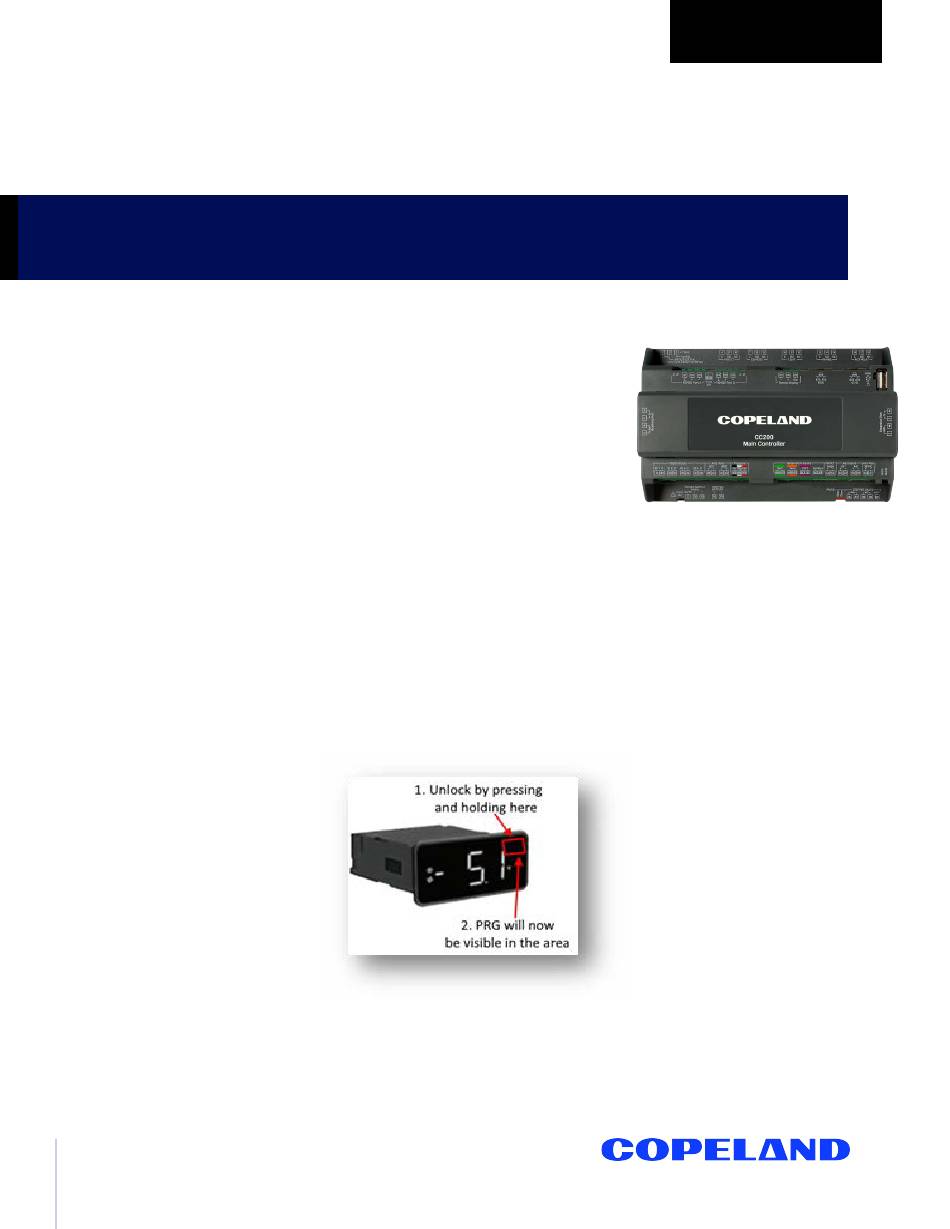

CC200 to E3 via Modbus
Configure the CC200 Modbus Settings with the Full Touch Display
For Modbus Devices Connecting to an E3, Set the Following Parameters:
•
Modbus Address (Adr) - set this to an address that is unique from any other
Modbus device located on the same RS-485 connection.
•
Modbus Baud rate (bAU) - default is 19.2k. The Baud Rate must match
on both the E3 Com Port and CC200.
•
IP address octet 1 (iP1) - default is 10. Change to 192 if your network setup
requires this.
•
Rack id (rid) - default is A. Change the Rack ID per the Site Install documents.
•
Circuit lineup id (Lid) - default is 99. Change the Lineup ID per the Site Install
documents
•
Case id (Cid) - default is A. Change the Case ID per the Site install documents.
•
Cases in lineup (CiL) - default is 1. For Standalone cases use 1. For Lineups enter the total number of cases in this
particular Lineup.
•
Modbus Data Bits (dAt) - default is 8. Recommended to leave this at the default value.
•
Modbus Parity (PAr) - default is nOn. Recommended to leave this at the default value.
•
Modbus Stop Bits (StP) - default is 1. Recommended to leave this at the default value.
•
Save All Changes (SAv) - Saves all changes and writes them to the CC200. Changes to any other Modbus parameter
shown above will not be saved unless this is set to Yes.
026-4729 R0
©2025 Copeland LP.
QUICK START GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the CC200 and is the answer not in the manual?

Questions and answers

Related Manuals for Copeland CC200

Summary of Contents for Copeland CC200

  • Page 1 Modbus Stop Bits (StP) - default is 1. Recommended to leave this at the default value. • Save All Changes (SAv) - Saves all changes and writes them to the CC200. Changes to any other Modbus parameter shown above will not be saved unless this is set to Yes.
  • Page 2 Swipe up/down to select the circuit number. ○ Once selected push and hold PRG for 3 seconds to save the edit. ○ Once saved the value will flash, display will beep and return to the Lid parameter label. 026-4729 R0 ©2025 Copeland LP.
  • Page 3 Once saved the value will flash, the display will beep and return to SAv. • The CC200 will automatically reboot to initialize Modbus settings. • Press and hold the Back Arrow (upper left-hand corner) for 3 seconds to return to the Main Display.
  • Page 4 COM Port 1 baud - set to match the CC200 Modbus Baud Rate (CC200 default is 19200). ○ If you have previously changed the CC200 Modbus Baud Rate via the Full Touch display then ensure that this E3 side value matches with the CC200 side.
  • Page 5 Click the box icon to access the Control Inventory screen. ○ If the blue Refrigeration group is not displayed, click on the Show Empty Group button. From the Add Control menu select CC200 Modbus. 026-4729 R0 ©2025 Copeland LP.
  • Page 6 12. The E3 will automatically populate the next available free Modbus address. If this is different than the Modbus Address that the CC200 is set to, change this field to match the CC200 Modus Address, then click the checkbox to the right of the CC200 to save the settings.
  • Page 7 13. The E3 will attempt to communicate with the CC200; during this time the Online status is Unknown. 026-4729 R0 ©2025 Copeland LP.
