Johnson Controls ZL Series Installation Manual page 15

Table 4: ZL08-14 unit accessory weights
Unit accessory
Powered convenience outlet factory installed
Non-powered convenience outlet factory installed
Vertical flow dry bulb economizer large footprint
Horizontal flow dry bulb economizer large footprint tall
Power exhaust vertical flow large footprint
Power exhaust horizon flow large footprint
Hail Guard kit large tall factory installed
Flue extension kit (1FE0416)
Curb rigid 14 in. large footprint
Curb rigid 24 in. large footprint

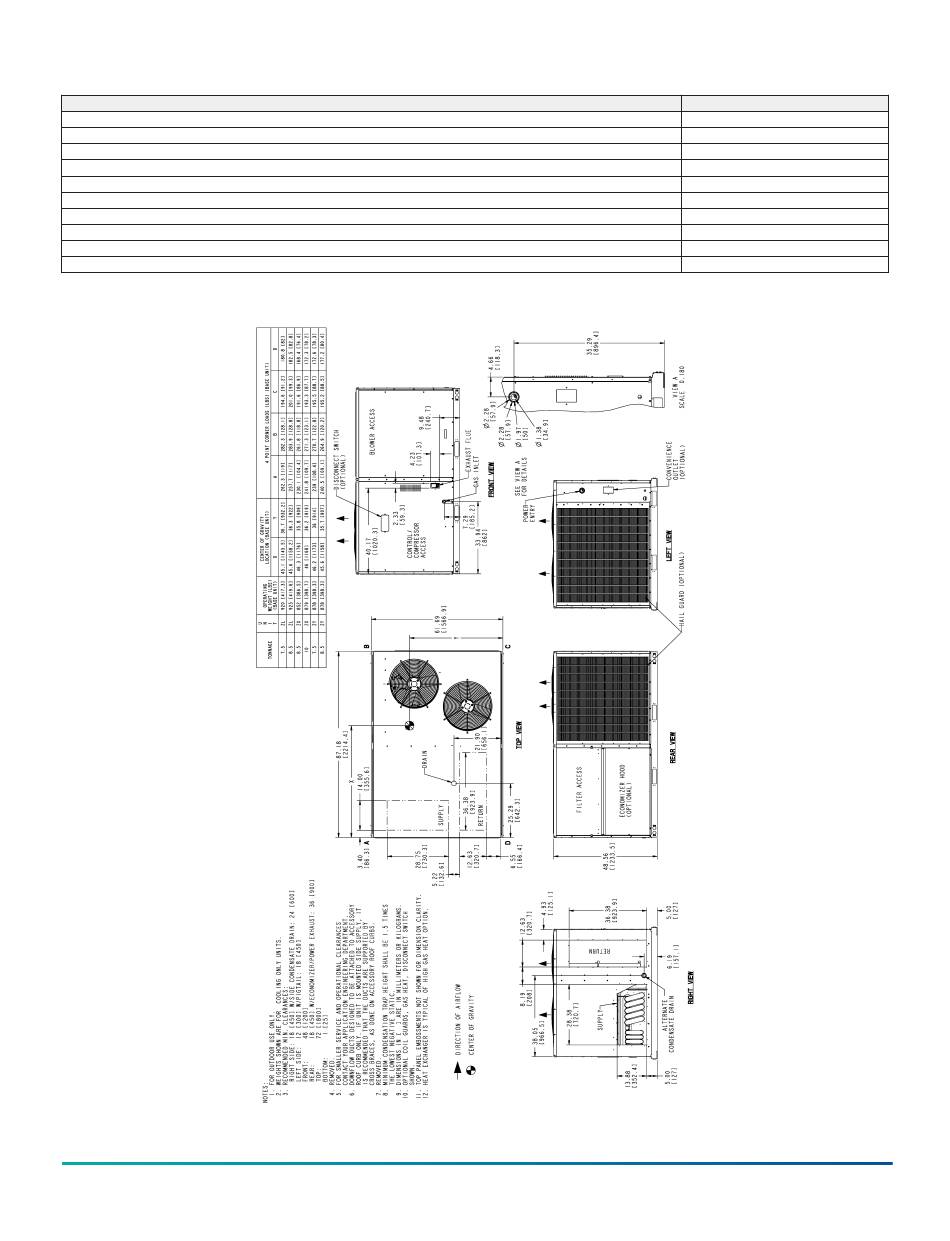

Figure 11: ZL 08 to ZL 09 unit dimensions
Installation Manual ZL Series 7.5- 12.5 Ton 60 Hertz R-410A
Johnson Controls Ducted Systems
Weights (lb.)
35
10
96
102
39
39
50
19
135
135
15
