28
Sun-3/75
Hardware
Installation
Manual
Table
2-2
Figure
2-1
Ethernet Cabling
Limitations
MAXIMUM
contiguous
length
of
coaxial cable
segments
500.0 meters
Distance
between
transceivers?
25
meter
multiples*
MAXIMUM
length
of
transceiver
cable
50.0 meters
•Transceivers
must
be placed
at
25
meter
intervals
along
the coaxial cable.
That
is,
you
could connect
transceivers
25
meters
apart,
but not
2.0 meters;
you
could
connect
transceivers 7.5
meters
apart,
but not 7.0 meters
(see figure
below).

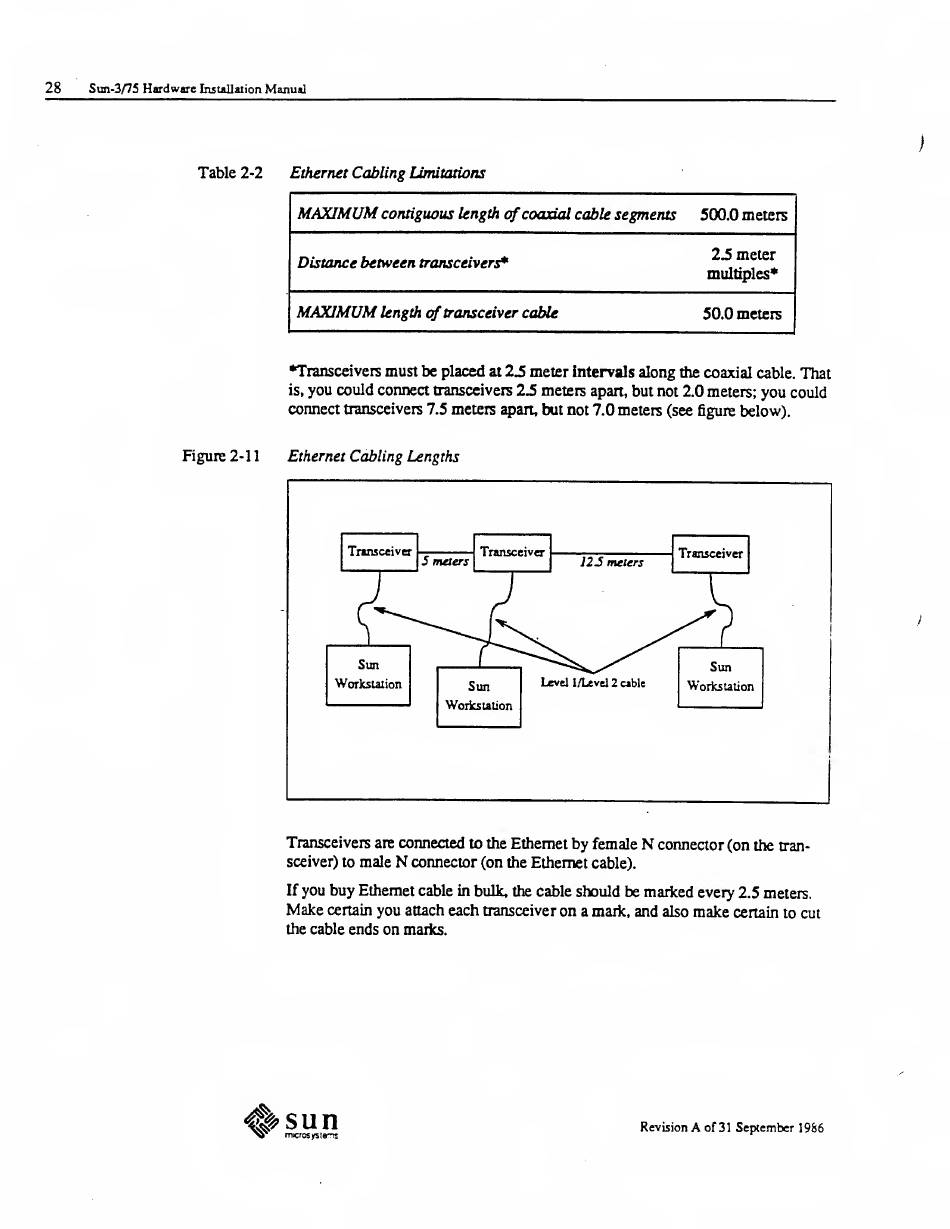

Ethernet Cabling Lengths
Transceivers
are
connected
to the
Ethernet
by
female
N
connector (on
the
tran-
sceiver) to
male
N
connector (on
the
Ethernet
cable).
If
you
buy
Ethernet cable
in
bulk, the
cable should be
marked
every
2.5 meters.
Make
certain
you
attach
each
transceiver
on
a
mark, and
also
make
certain to cut
the
cable
ends
on
marks.
#sun
V
micros
ystamt
Revision
A
of 31
Sepcember 1986
