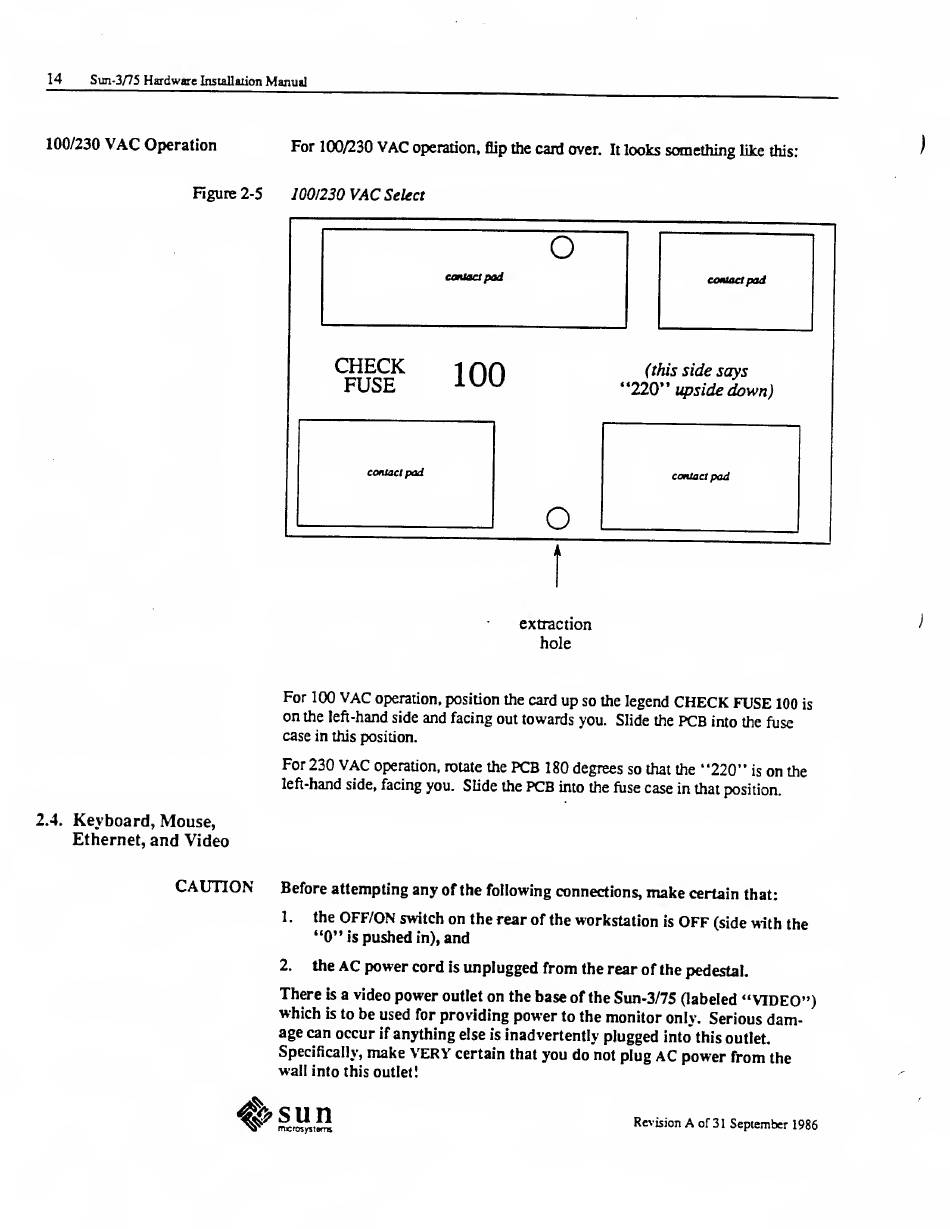

Sun-3/75
Hardware
Installation
Manual
100/230
VAC
Operation
For 100/230
VAC
operation,
flip
the
card
over.
It
looks
something
like
this:
i
Figure 2-5
100/230
VAC
Select
hole
For 100
VAC
operation, position the
card
up
so
the
legend
CHECK
FUSE
100
is
on
the left-hand side
and
facing out
towards
you. Slide the
PCB
into the fuse
case
in
this position.
For
230
VAC
operation,
rotate
the
PCB
180
degrees
so
that
the
'
*220"
is
on
the
left-hand
side,
facing you. Slide the
PCB
into the
fuse
case
in that position.
2.4.
Keyboard, Mouse,
Ethernet,
and
Video
C AUTION
Before attempting
any
of the following connections,
make
certain that
1
.
the
OFF/ON
switch
on
the
rear of
the
workstation
is
OFF
(side
with
the
"0"
is
pushed
in),
and
2.
the
AC
power
cord
is
unplugged from
the rear
of
the pedestal.
There
is
a video
power
outlet
on
the
base of
the
Sun-3/75
(labeled
"VIDEO")
which
is
to
be used
for
providing
power
to
the
monitor
only.
Serious
dam-
age can occur
if
anything
else
is
inadvertently
plugged
into this outlet.
Specifically,
make
VERY
certain that
you do
not
plug
AC
power from
the
wall into
this outlet!
Revision
A
of 31
September 1986
