Chapter 2
—
Basic
Component
Set-up
1
120/240
VAC
Operation
Below
is
a
diagram of
the
120/240
VAC
side
of
the
voltage
select
PCB. For 120
VAC
operation,
slide
the voltage
select
PCB
into
the fuse
case with
this side
up
(with the legend
CHECK
FUSE
120
on
the left-hand side
and facing out towards
you).

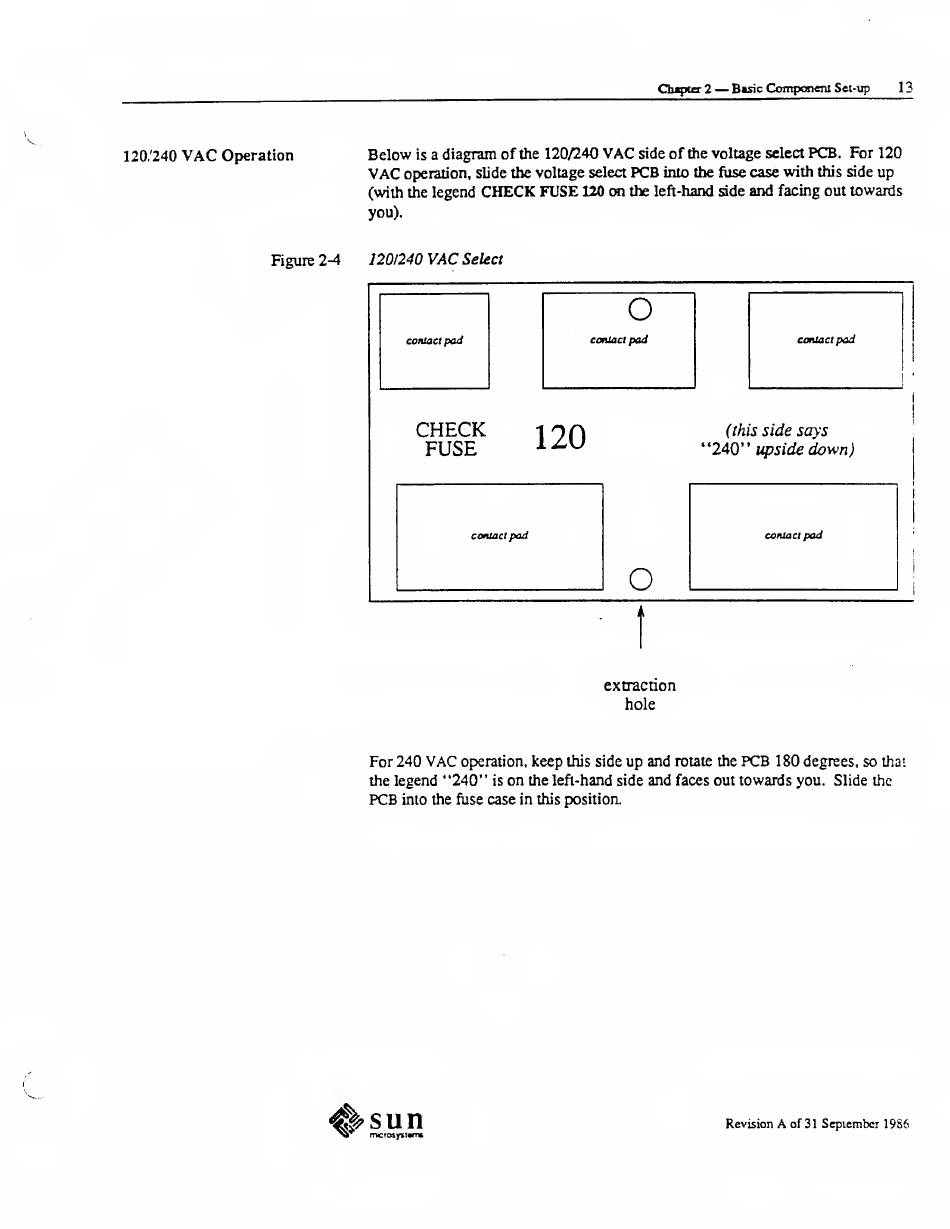

Figure 2-4
1201240
VAC
Select
extraction
hole
For 240
VAC
operation,
keep
this side
up
and
rotate
the
PCB
180
degrees, so
that
the
legend
"240"
is
on
the left-hand side
and faces out
towards
you.
Slide the
PCB
into the fuse
case
in this
positioa
