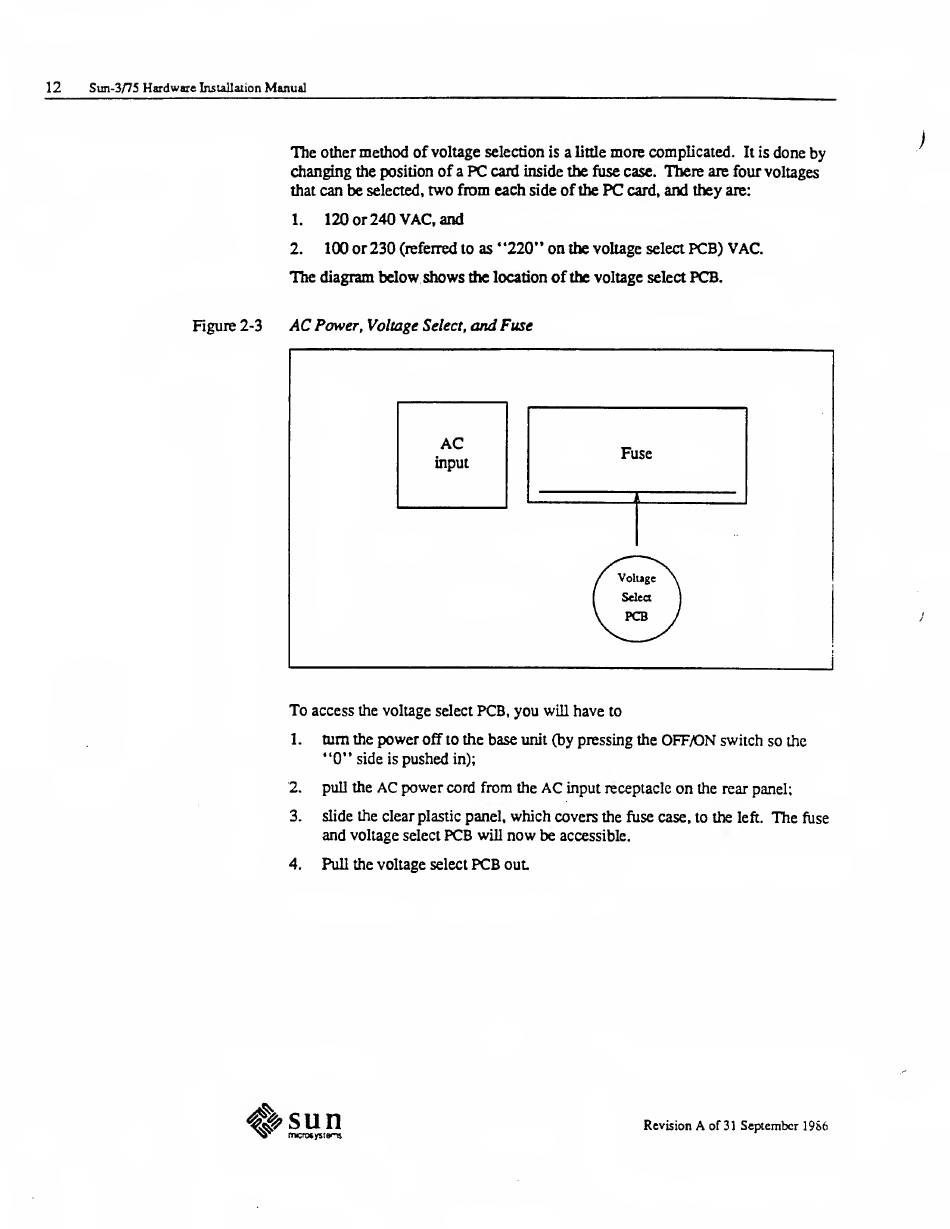

Figure 2-3
The
other
method
of
voltage
selection
is
a
little
more
complicated.
It is
done by
changing
the position
of
a
PC
card
inside
the fuse
case.
There
are
four voltages
that
can be
selected,
two from
each
side
of
the
PC
card,
and
they
are:
1.
120
or
240
VAC,
and
2.
100 or
230
(referred to
as
"220"
on
the voltage
select
PCB) VAC.
The
diagram below
shows
the location
of
the voltage select
PCB.
AC
Power,
Voltage
Select,
and
Fuse
To
access
the
voltage
select
PCB, you
will
have
to
1.
turn the
power
off
to
the
base
unit
(by pressing
the
OFF/ON
switch so
the
"0"side
is
pushed
in);
2.
pull
the
AC
power
cord
from
the
AC
input receptacle
on
the rear panel;
3.
slide
the clear plastic panel,
which
covers
the fuse case, to the
left.
The
fuse
and
voltage
select
PCB
will
now
be
accessible.
4.
Pull the
voltage
select
PCB
out
4sun
V
mcrosysterTs
Revision
A
of 31
September
1986
