Installation
Removable Front Panel
Instructions
Payment Device
NOTE: When removing the front panel, the payment device is connected to the power
supply unit by a cable.
If a Mounting Post or Pedestal will be Used
1. Prepare the ground and place the mounting post in the desired location.
2. Make sure the power supply cable and the ethernet cable (if required), are fed
upward through the post or pedestal and exit through one of the apertures. Seal
other apertures with the provided blanking panels.
3. Secure the post into place with fixings that are appropriate for the mounting
surface.
Tap & Charge Remote Contactless Payment Terminal
Page 9 of 12

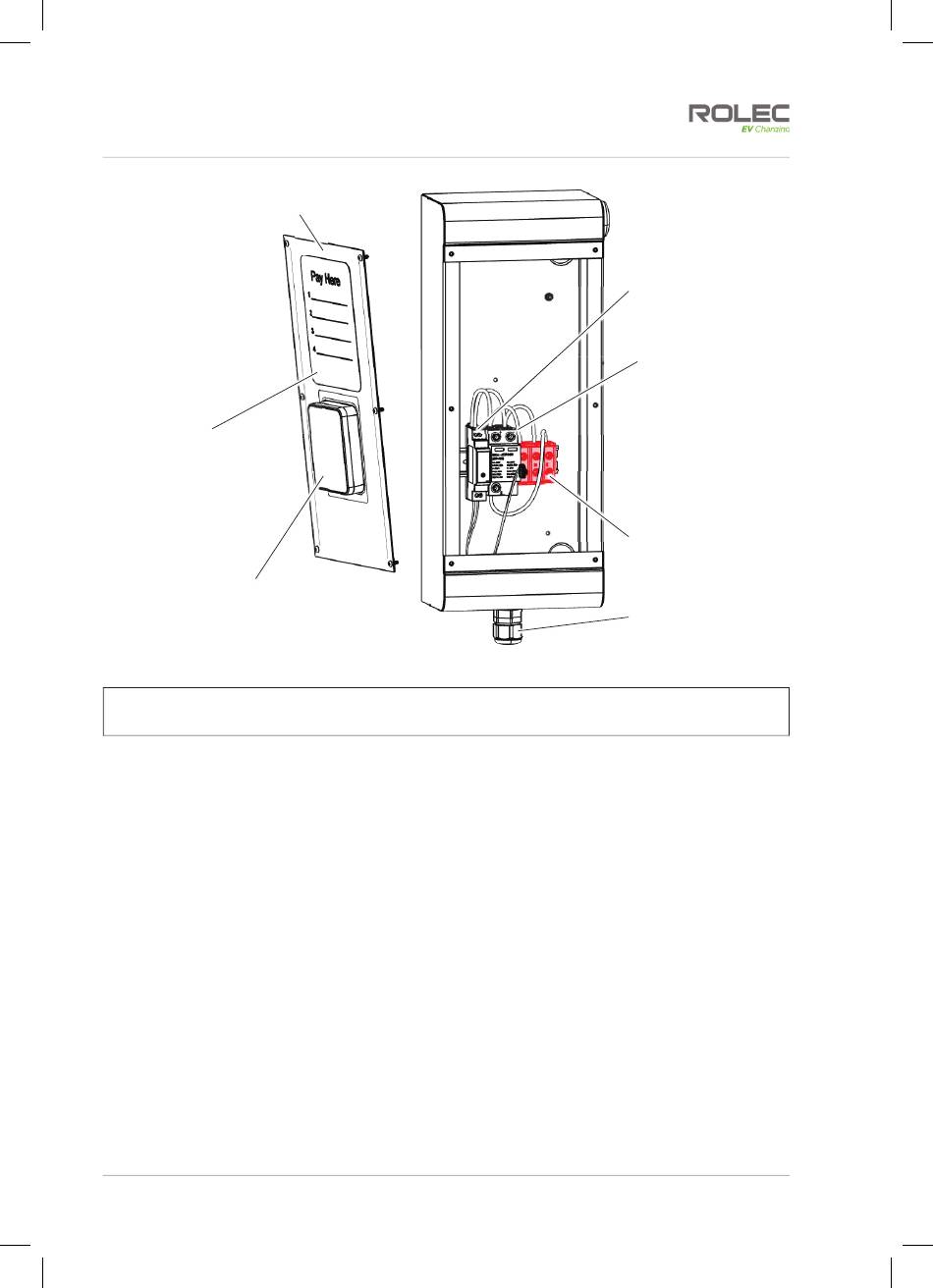

Figure 2 Main Components
Power Supply Unit
Surge Protection
Incoming Power Terminals
Cable Entry Gland
EVTCM-V01-R0 Installation Manual
November 2024
