Johnson & Starley J70-90 MK2 Installation, Commissioning And Servicing Instructions

Advertisement

Installation, Commissioning and Servicing Instructions
Models covered by these instructions
Leave these Instructions with the User or with the appliance
WARM AIR HEATER
MODAIRFLOW and Conventional Control
INSTALLATION INSTRUCTIONS
This appliance has been tested and certificated by British Gas for use with natural gas.
1. COMPONENTS CHECK

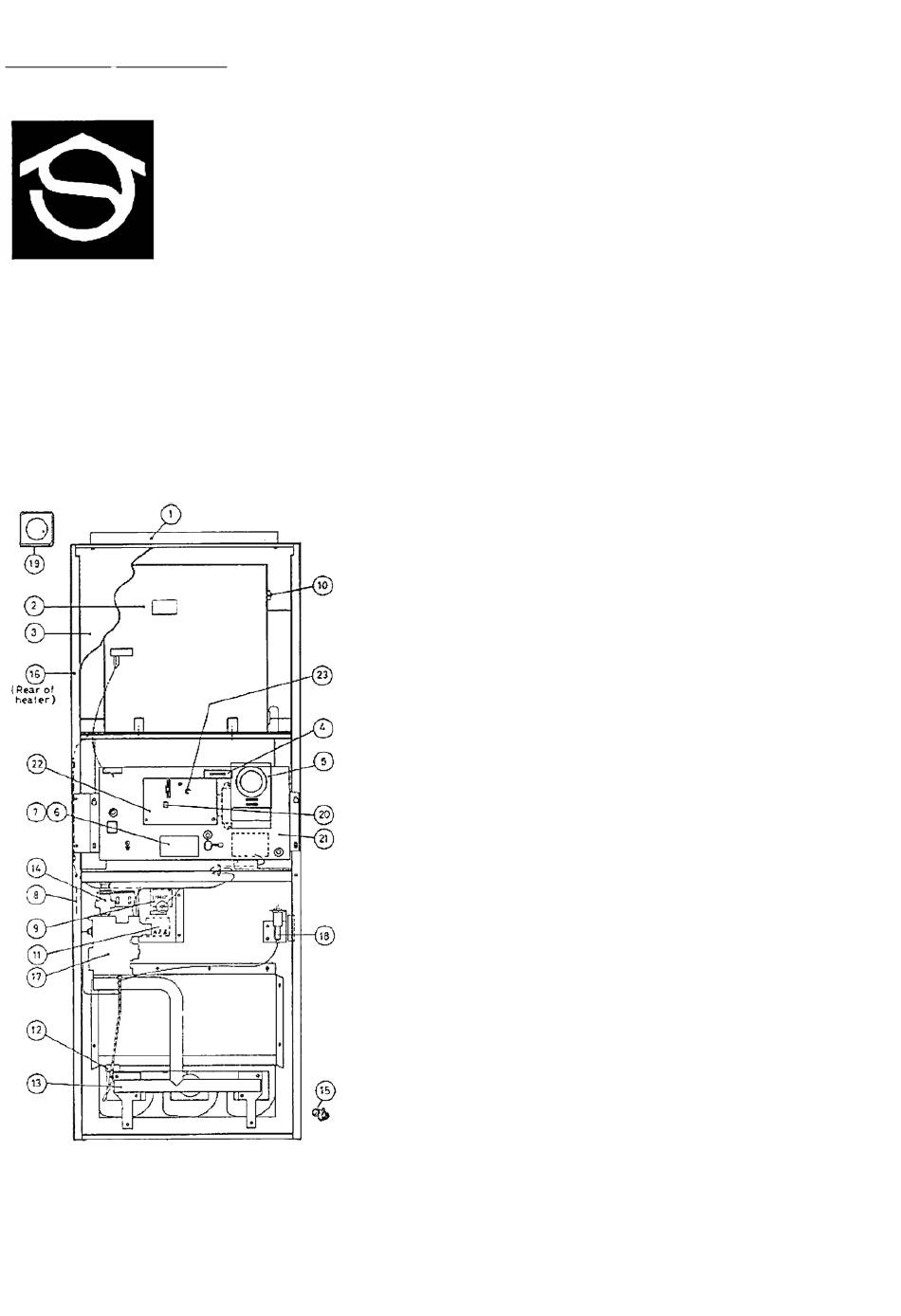

Fig. 1
JB70-90 is an open-flued, fan-assisted, downflow ducted warm air heater, which may be supplied with Modairflow controls.
A basic (non-Modairflow) control is available as an option.
Air heater output can be adjusted between 20.5kW(73.9MJ/h, 70,000Btu/h) and 26.4kW(94.9MJ/h, 90,000Btu/h).
A free-standing kit FS65/90 is available with this appliance.
1. Air filter
2. Air circulating fan
(42-417-70) J70-90 Mk.2
