INSTALLATION, COMMISSIONING & SERVICING INSTRUCTIONS
This appliance has been tested and certified by B G Technology for use with natural gas G20.
Note: If a water heater is fitted, these instructions must be read in conjunction with the Installation, Commissioning
and Servicing Instructions for that appliance.
1.
5
13
4
10
6
11
1.1
HI-SPEC J25SC is a fanned-circulation, downflow, ducted warm air heater for SE-duct applications, which may be
supplied with SYSTEM E-T or Basic control, and in combination with an ELJAN 4/SE (electrically switched) water
heater.
1.2
The Air heater output can be adjusted between 6.44kW (23.2MJ/h, 22,000 Btu/h) and 7.3kW (26.4MJ/h, 25,000Btu/h).
"Summer air circulation" of unheated air is available by manual selection (see User's Instructions). ELJAN 4/SE output is
3.32kW (12.0MJ/h, 11,340Btu/h).
These instructions are to be left with the User or adjacent to the Gas Meter
HI-SPEC J25SC SERIES WARM AIR HEATERS
SYSTEM E-T and BASIC Control
BRIEF DESCRIPTION

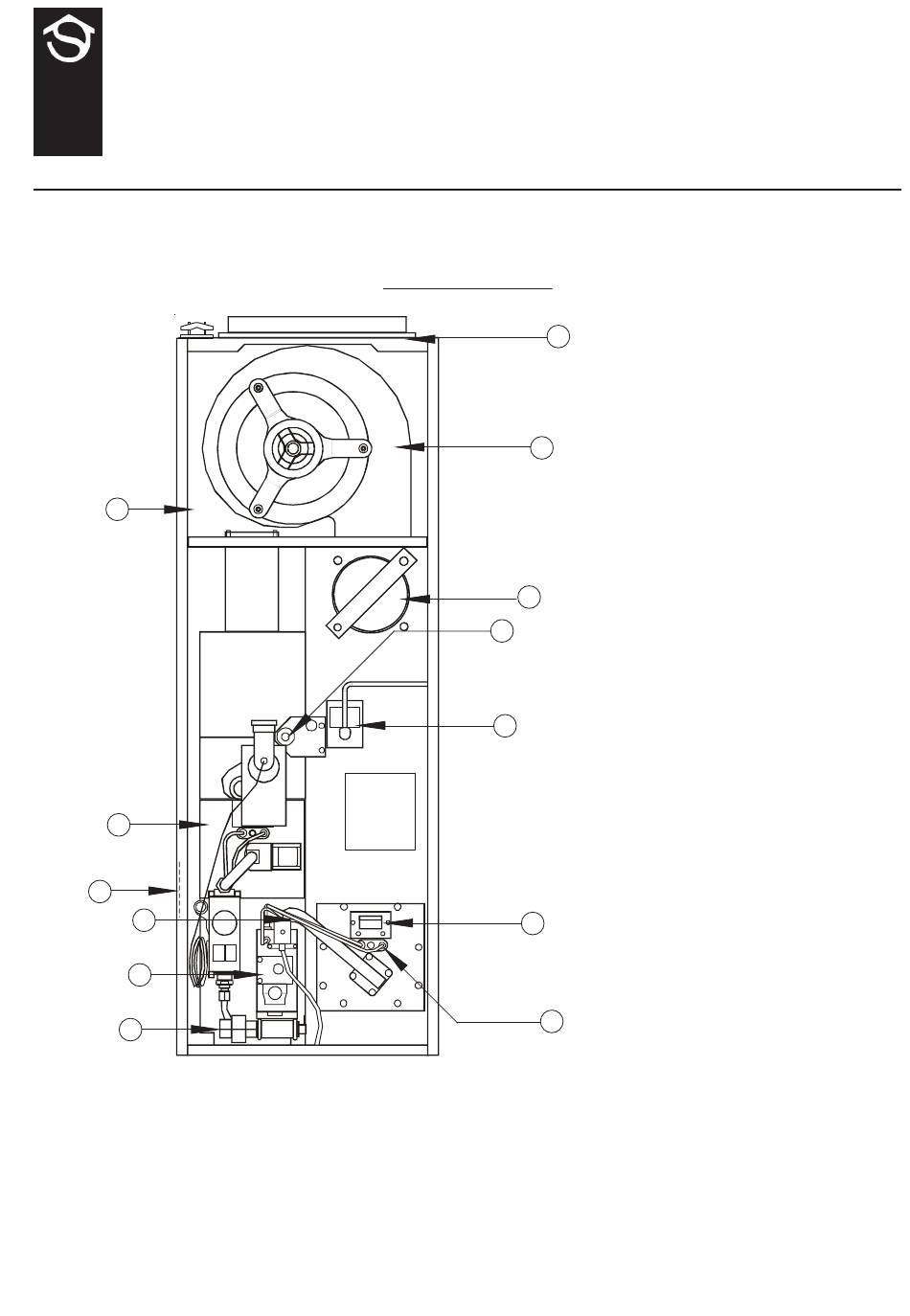

Fig. 1
THIS APPLIANCE CONFORMS TO BS EN 55014
G.C. No 42 417 96
1
2
3
12
7
8
9
1
Publication No. ZZ 839/6
1
Air Filter
2
Air circulating fan
3
Heat exchanger access cover
4
Data plate
5
Electrical Panel Assembly
6
Multifunctional control
7
Fan delay control/limit switch
8
Viewing port
9
Pilot Burner
10
Burner Assembly
11
Gas supply pipe
12
Piezo igniter unit
13
ELJAN 4/SE Water heater (if fitted)
October 2007
