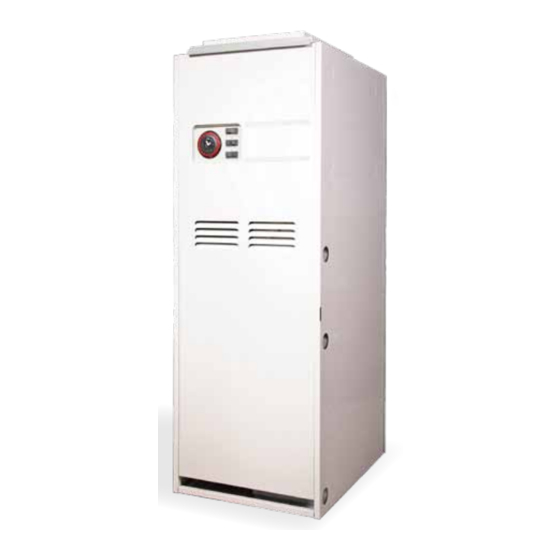

HI-SPEC
J25SCA
Warm Air Heater
System E-T Control &
Eljan 4/SEA Water Circulator
USER'S INSTRUCTIONS
J25SCA
AIR HEATER
ELJAN 4/SE-A
WATER CIRCULATOR -
These instructions are to be left with the User or adjacent to the Gas Meter
-
G.C. No. 43-416-99
G.C. No. 43-417-58
www.johnsonandstarley.co.uk
Publication No. ZZ 1325-2
June 2012
Advertisement
Table of Contents
Related Manuals for Johnson & Starley HI-SPEC J25SCA
Summary of Contents for Johnson & Starley HI-SPEC J25SCA

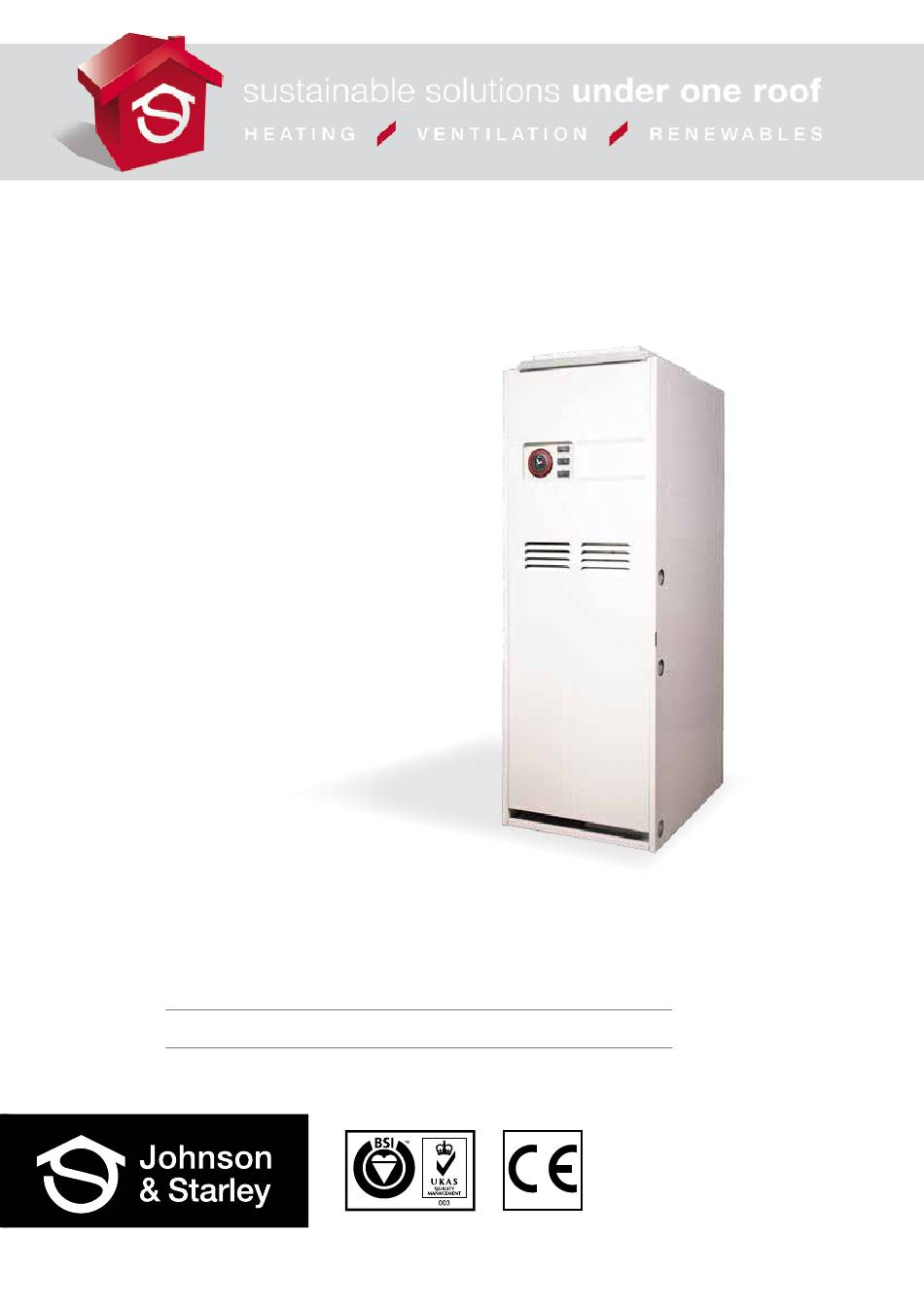

- Page 1 Publication No. ZZ 1325-2 June 2012 HI-SPEC J25SCA Warm Air Heater System E-T Control & Eljan 4/SEA Water Circulator USER’S INSTRUCTIONS J25SCA AIR HEATER G.C. No. 43-416-99 ELJAN 4/SE-A WATER CIRCULATOR - G.C. No. 43-417-58 These instructions are to be left with the User or adjacent to the Gas Meter www.johnsonandstarley.co.uk...
- Page 2 CONTENTS The Benchmark Scheme General Information Starting & Stopping your Heater Temperature Control Time Control Maintenance Trouble Shooting Emergency Power Restrictions Important Information THE BENCHMARK SCHEME Johnson & Starley Ltd is a licensed member of the Benchmark Scheme which aims to improve the standards of installation and commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing to optimise safety, efficiency and performance.
- Page 3 GENERAL INFORMATION IT IS A STATUTORY REQUIREMENT THAT ALL GAS APPLIANCES MUST BE INSTALLED BY COMPETENT PERSONS, (i.e. CORGI REGISTERED INSTALLERS. CORGI MEMBERSHIP ENQUIRIES - TEL: 0800 915 0485) IN ACCORDANCE WITH THE GAS SAFETY (INSTALLATION AND USE) REGULATIONS (CURRENT EDITION). FAILURE TO COMPLY WITH THESE REGULATIONS MAY LEAD TO PROSECUTION.
- Page 4 STARTING AND STOPPING YOUR HEATER IMPORTANT: BEFORE LIGHTING YOUR WARM AIR HEATER, open the warm air outlets in all rooms, ensure any taps in the gas supply to the heater are turned on, the Thermista-stat at minimum setting, and the electrical supply to the heater is OFF.
- Page 5 TEMPERATURE CONTROL TEMPERATURE CONTROL FOR THE AIR HEATER The figures on the thermista-stat dial represent levels of warmth and when you select a dial number, the heater will operate automatically to maintain that level. You will soon find the setting at which you are most comfortable, but we recommend that you start at setting 5 and make adjustments up or down until a satisfactory level is reached.
- Page 6 OTHER OPERATING CONDITIONS 4.4.1 The heaters can be made to operate during the day (i.e. weekends) by setting the switches ‘ON ALL TIME’. ( I ) Room and hot water temperatures will be controlled automatically. 4.4.2 To return to the usual ‘ON’ and ‘OFF’ times (i.e. overnight or during weekdays), set the switches to ‘TIMED’.
- Page 7 IMPORTANT FOR YOUR HEATER TO WORK EFFICIENTLY AND FOR YOUR HEATING SYSTEM TO PERFORM SATISFACTORILY, IT IS ABSOLUTELY ESSENTIAL TO OBSERVE THE FOLLOWING: This air heater is installed in a ventilated area. DO SEEK ADVICE from your Gas Service Centre before making any alterations likely to reduce the supply of fresh air to the heater.
- Page 8 Johnson & Starley Ltd Rhosili Road, Brackmills, Northampton NN4 7LZ sales@johnsonandstarley.co.uk marketing@johnsonandstarley.co.uk Reception 01604 762881 Sales/Spare 01604 707012 Service/Warm Air Heating 01604 762881 Warm Air Upgrade 01604 707011 Johnson & Starley Dravo Division Industrial H&V Sales 01604 707022 sales@johnsonandstarley.co.uk www.dravo.co.uk Anniversary 1922 - 2012...
