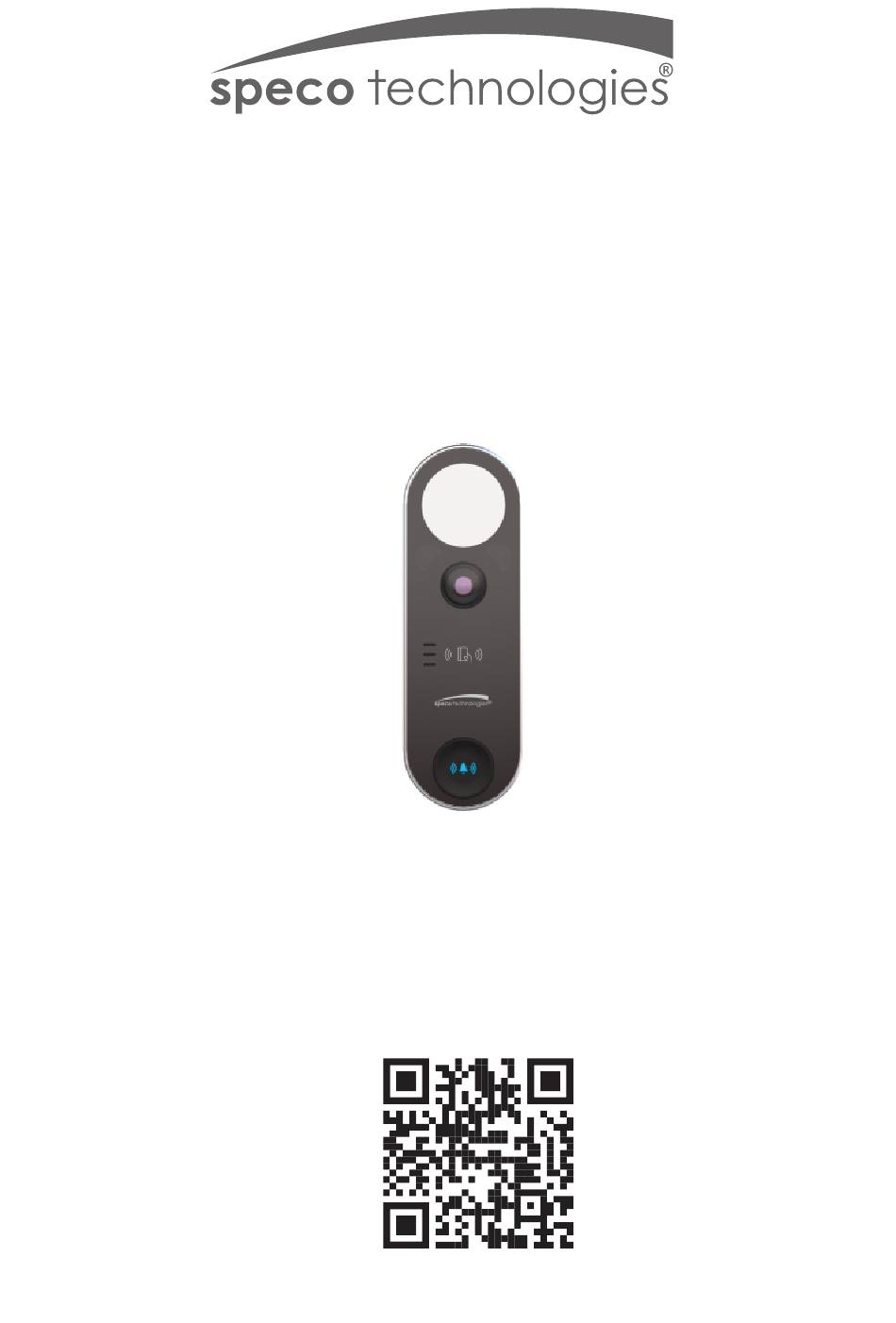

- Page 1 Quick Start Guide O2DB1 Scan for Manual and Software downloads...
-
Page 2: Electrical Safety
This owner's manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, contact Speco Technologies Tech Support at 1-800-645-5516 Important Safeguards and Warning 1. - Page 3 Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included.

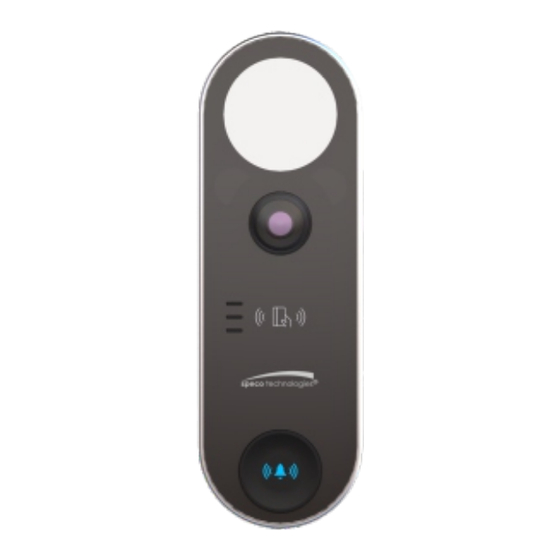

- Page 4 Bracket Drill Template Cables Plastic screw Weather- for doorbell resistant cap anchors Chime Bracket for Double-sided Chime adhesive Overview Left Front Back 31.3mm 50mm 29.8mm White Fill Light Infrared Light Camera Loudspeaker Card Reading Area Indicator Button Microphone Anti-Tamper Button RESET Terminals Reset...
-
Page 5: Cable Connection
CableConnection POWER GND BLACK Power Input POWER12V RED RS 485- YELLOW RS 485 RS 485+ ORANGE LOCKNC GRAY LOCKCOM WHITE Lock LOCKNO PURPLE ALARM IN BLUE Alarm Input BUTTONWHITE Exit Button SENSOR YELLOW Door GND BLACK Contact GND BLACK GND BLACK WIEGAND-D0 GREEN Wiegand Interface... - Page 6 +12V RS 485- RS485 Anode Card Reader RS 485+ Magnetic Lock Power Cathode Lock Alarm Input Device Exit Door Button Contact Wiegand Card Reader Note: * The wiegand terminal here is a wiegand input terminal. If you want to connect to an access controller, you shall set the Wiegand direction to “Output”.
- Page 7 Single Door Typical Outputs Single Door Typical Wet Lock Power (12V DC 500mA) (with single reader, door contact, auto door opener). Networking Example Mag Lock Inputs Door Contact (dry) Handicap Button (dry) Outside Reader POWER GND BLACK er Input POWER12V RED RS 485- YELLOW S 485 RS 485+ ORANGE...
-
Page 8: Installation Example
Installation Example Networking Example Outputs : Normal : PoE Powered Wet Lock Power (12V DC 500mA) Networking Example Mag Lock Inputs Door Contact (dry) Doorbell > PoE Injector > PC (Direct) Handicap Button (dry) Outside Reader Doorbell > Mobile Device How to Attach to Access Control Wiring Specification Ground... -
Page 9: Installation
Installation Doorbell Installation Ø6 Drill Template Stick the drill template onto the wall and Secure the mounting plate onto the wall with then drill two holes according to the holes 2 screws. of the drill template marked with “ ”. Lock screw Cover Route and connect the cables. - Page 10 Mounting with Adapter Bracket There are two ways to install the adapter Ø6 bracket as shown below. Drill Template 15° 15° Target Target Attach the mounting plate to the adapter bracket Stick the drill template onto the wall and with two screws. Refer to the above right figures to then drill two holes according to the holes install the adapter bracket as needed.
-
Page 11: Network Connection & Login
Doorbell Height Requirement Height Distance Human Height Range 140cm~168cm 0.3m 1.45m 0.5m 127cm~183cm 88cm~222cm 0.3m 0.5m The recommended installation height (H) is 1.45m. It can be adjusted according to the actual scene. Network Connection & Login ● Wireless Network Connection ①Enable Wi-Fi network of your phone. - Page 12 ① Make sure that the device and the PC are connected to the same local network. The camera is set to DHCP by default. ② Install Speco Blue Scanner and run it after installation. Speco Blue Scanner is the tool for discover the IP cameras on the local network. It can be downloaded from www.specotech.com.
- Page 13 Chime Installation BatteryInstallation Please use two 1.5V AA Alkaline dry batteries. Carbon zinc dry batteries or rechargeable batteries are not recommended. 2.Place two 1.5V AA Alkaline 1.Turn the cover anticlockwise to 3.Install the cover and batteries into their trays remove it. then turn it clockwise to respectively.
- Page 14 Chimeand Doorbell Pairing 1. Press and hold the Set button for 3s. You will hear a notification tone and see the light flashing, indicating that the system is in pairing mode and has reset previous settings. 2. Press and hold the Bell button of the doorbell for 5s. Then the doorbell sends the paring information.
