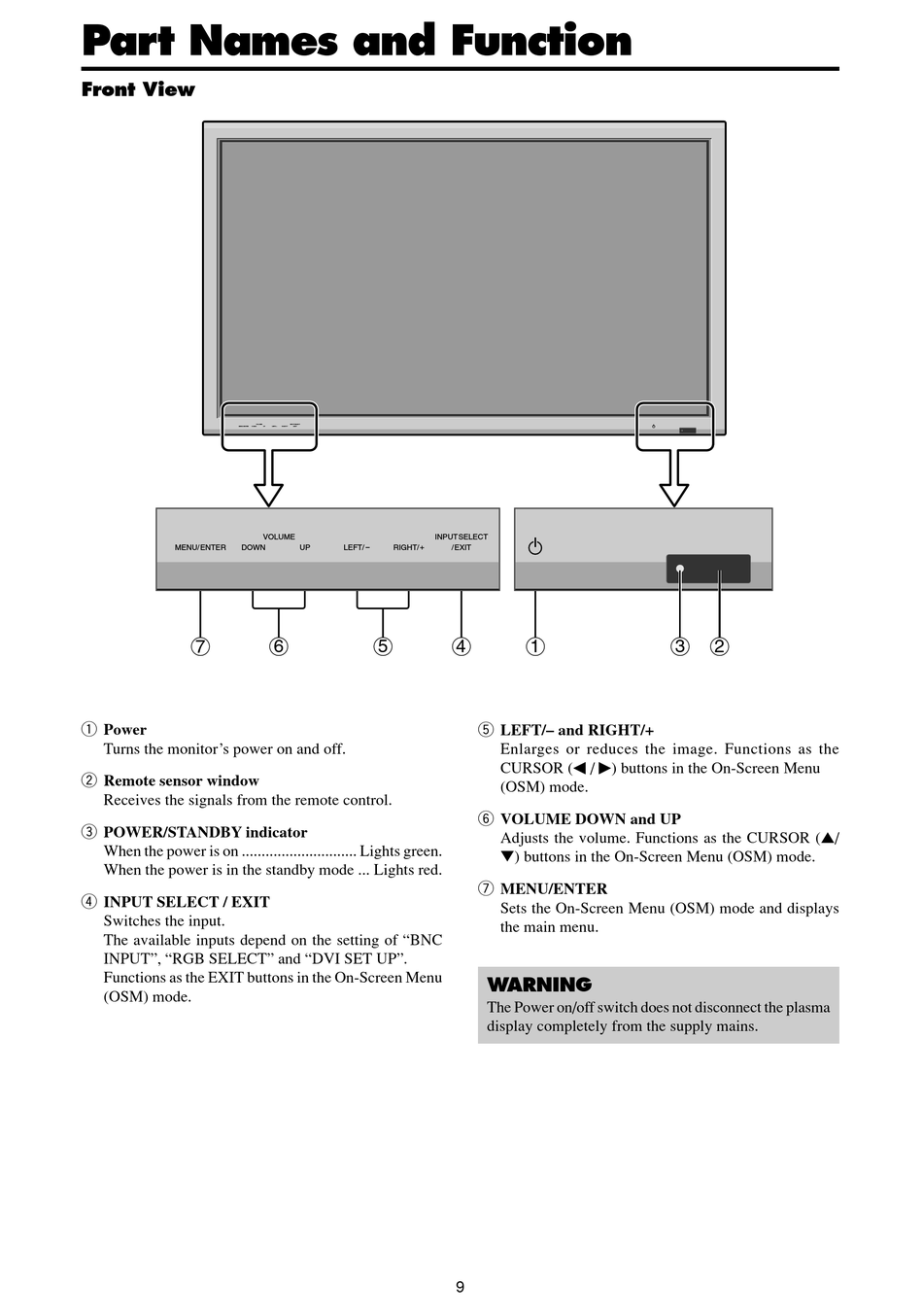

Part Names and Function

Front View

MENU/ ENTER
DOWN
MENU/ENTER
DOWN
7
q Power
Turns the monitor's power on and off.
w Remote sensor window
Receives the signals from the remote control.
e POWER/STANDBY indicator
When the power is on ............................. Lights green.
When the power is in the standby mode ... Lights red.
r INPUT SELECT / EXIT
Switches the input.
The available inputs depend on the setting of "BNC
INPUT", "RGB SELECT" and "DVI SET UP".
Functions as the EXIT buttons in the On-Screen Menu
(OSM) mode.
VOLUME
INPUT SELECT
UP
LEFT/-
RIGHT/+
/ EXIT
VOLUME
LEFT/ -
RIGHT/ +
UP
6
5
INPUT SELECT
/EXIT
4
1
t LEFT/– and RIGHT/+
Enlarges or reduces the image. Functions as the
CURSOR (
/
(OSM) mode.
y VOLUME DOWN and UP
Adjusts the volume. Functions as the CURSOR (L/
M) buttons in the On-Screen Menu (OSM) mode.
u MENU/ENTER
Sets the On-Screen Menu (OSM) mode and displays
the main menu.
WARNING
The Power on/off switch does not disconnect the plasma
display completely from the supply mains.
9
3
2
