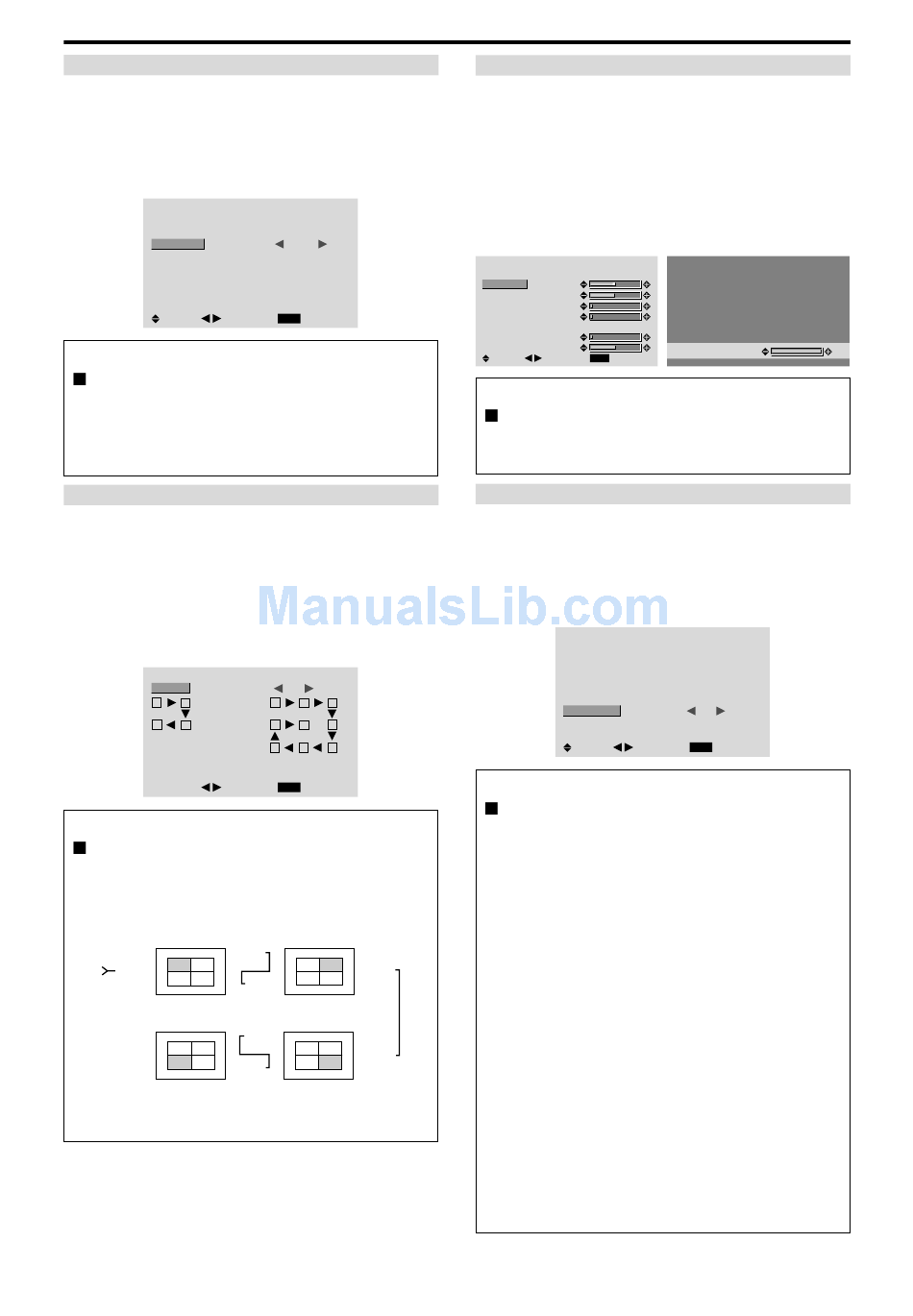

DISP. MODE

Select the screen mode from between two options
(Splitting, Blanking).
Example: Setting "BLANK"
On "DISP. MODE" of "VIDEO WALL" menu, select
"BLANK".
VIDEO WALL
DIVIDER
POSITION
DISP. MODE

AUTO ID

IMAGE ADJUST
P. ON DELAY
PLE LINK
REPEAT TIMER
SEL.
ADJ.
Information
DISP. MODE settings
SPLIT: Combines enlarged screens and creates multiple
screens.
BLANK: Corrects misalignment of combined screen
portions and creates multiple screens
AUTO ID
This feature automatically sets the ID numbers of multiple
displays connected to each other.
Example: Setting "ON"
Set the ID number for the No. 1 display on ID NUMBER
menu.
On "AUTO ID" of "VIDEO WALL" menu, select "ON",
then press the MENU/ENTER button.
AUTO ID
AUTO ID
1
2
4
3
WIRED CABLE
CONNECTION TURN
ADJ.
Information
AUTO ID settings
ON: Enables Auto ID function. In the case shown below,
display 1 will be set as ID 1, display 2 as ID2, etc.
This can be set only when a 2×2 or 3×3 video wall is
selected.
REMOTE
OUT
No.1 No.2
REMOTE
No.4
No.3
IN
Display 1
No.1 No.2
REMOTE
OUT
No.4
No.3
REMOTE
IN
Display 4
OFF: Disables Auto ID function.
:
1
:
BLANK
:
OFF
:
OFF
:
OFF
:
OFF
EXIT
RETURN
:
ON
1
2
3
8
9
4
7
6
5
EXIT
RETURN
No.1 No.2
REMOTE
No.4
No.3
OUT
REMOTE
IN
Display 2
REMOTE
OUT
No.1 No.2
REMOTE
No.4
No.3
IN
Display 3
IMAGE ADJUST
The position of the image can be adjusted and flickering
of the image can be corrected.
Example: Adjusting the vertical position
On "VIDEO WALL" menu, select "IMAGE ADJUST", then
press the MENU/ENTER button.
The "IMAGE ADJUST" screen appears.
On "V-POSITION" of "IMAGE ADJUST" menu, adjust the
position.
IMAGE ADJUST
ASPECT MODE
:
NORMAL

V-POSITION

H-POSITION

V-HEIGHT

H-WIDTH

AUTO PICTURE

:
OFF

FINE PICTURE

PICTURE ADJ.

SEL.
ADJ.
EXIT
RETURN
Information
IMAGE ADJUST settings
These are the same functions as the IMAGE ADJUST
menu on page 20.
P. ON DELAY (Power on delay)
Use this function to activate power-on delay.
Turn on the AUTO ID before the following operations.
Example: Setting "ON"
On "P. ON DELAY" of "VIDEO WALL" menu, select
"ON".
DIVIDER
POSITION
DISP. MODE
AUTO ID
IMAGE ADJUST
P. ON DELAY
PLE LINK
REPEAT TIMER
SEL.
Information
P. ON DELAY settings
ON: Turns on the main power of each display after a
delay time.
OFF: Turns on the main power of all displays at the
same time.
(Only for 16 and 25 screens)
MODE1: Turns on the main power of each display
delayed.
MODE2: Turns on the main power of each display more
delayed.
* Once this function has been set to "ON", the POWER
ON/OFF button on the remote control does not function
except for the No.1 monitor.
By pressing the POWER ON button on the remote
control the No.1 monitor will turn on and the others
will be turned on one by one automatically.
* From the second monitor onward, neither the POWER
button on the unit nor the POWER ON button on the
remote control works. However, by pressing and holding
the POWER ON button for more than 3 seconds, the
monitor will be turned on.
30
V-POSITION
VIDEO WALL
:
1
:
SPLIT
:
OFF
:
ON
:
OFF
:
OFF
ADJ.
EXIT
RETURN
+ 6 4
