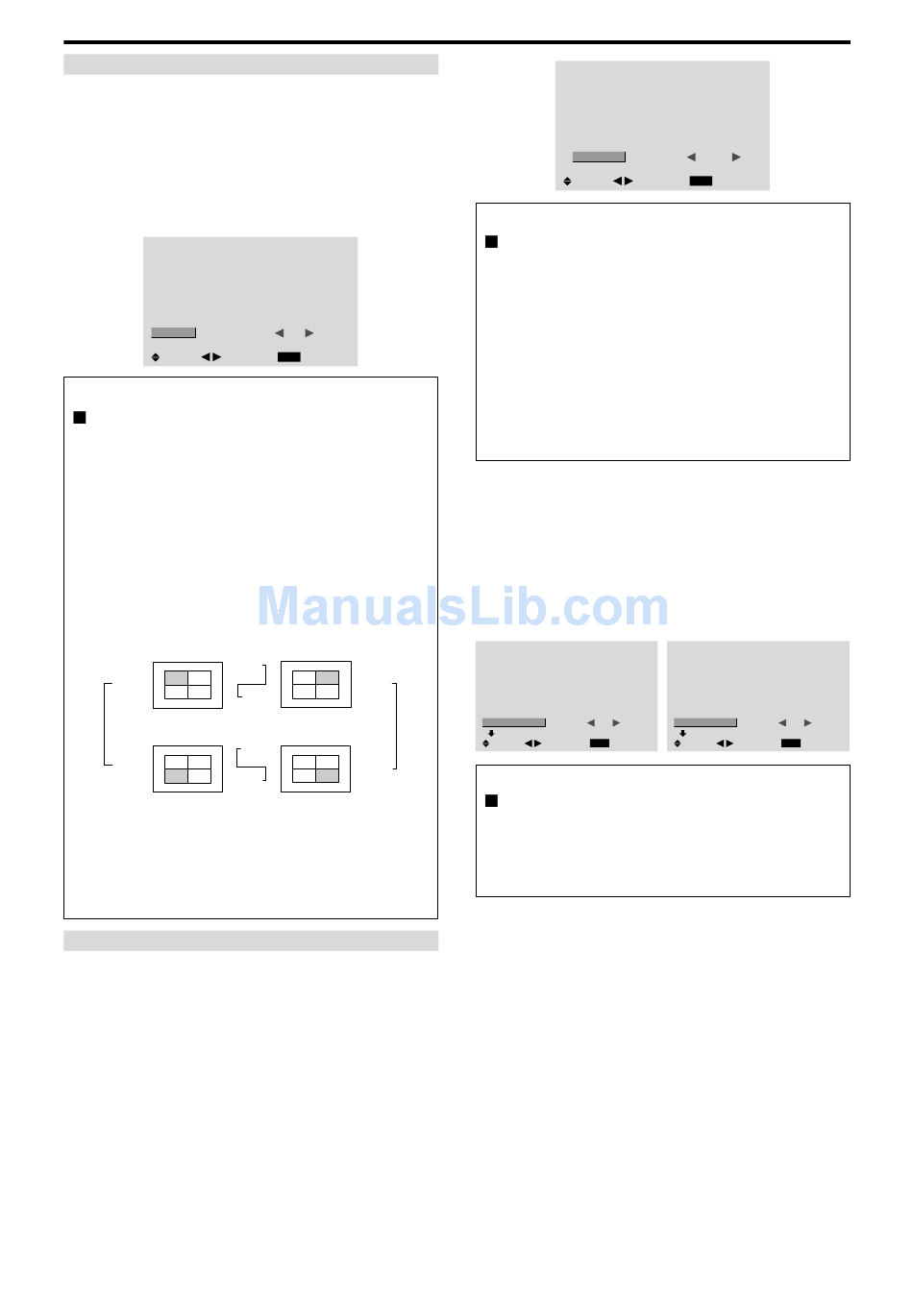

PLE LINK

Use this function to set a uniform brightness for each
display.
Turn on the AUTO ID and set the DIVIDER (at 1, 4 or 9)
before the following operations.
Example: Setting "ON"
On "PLE LINK" of "VIDEO WALL" menu, select "ON",
then press the MENU/ENTER button.
VIDEO WALL
DIVIDER
POSITION
DISP. MODE
AUTO ID
IMAGE ADJUST
P. ON DELAY
PLE LINK
REPEAT TIMER
SEL.
ADJ.
Information
PLE LINK settings
ON: Sets a uniform brightness for each screen in a video
wall. This can be set only when a 2×2 or 3×3 video
wall is selected.
OFF: Sets the individual screen brightness for each
screen in a video wall.
* When this function is set "ON", connect your plasma
displays with the remote cable (optional) in the order of
the position numbers for the 2×2 video wall. See the
drawing below.
* If there are changes in the DIVIDER or POSITION,
the PLE LINK will automatically turn OFF.
REMOTE
OUT
No.1 No.2
REMOTE
IN
No.4
No.3
Display 1
No.1 No.2
REMOTE
OUT
No.4
No.3
REMOTE
IN
Display 4
* With the 3×3 video wall, connect the final display to
the first display the same way as with 2×2 video wall.
Note: The remote control can be operated unless the
IR REMOTE is set to "OFF".
REPEAT TIMER
Use this to set two timers. Each timer can use the
DIVIDER, SOURCE and WORK TIME functions.
Turn on the AUTO ID and set the DIVIDER (at 1, 4 or 9)
before the following operations.
Example:
TIMER1...VIDEO1 will be displayed for 3 minutes.
TIMER2...RGB1 will be displayed for 6 minutes in a
2×2 video wall.
On "REPEAT TIMER" of "VIDEO WALL" menu, select
"ON", then press the MENU/ENTER button.
The "REPEAT TIMER" screen appears.
Adjust the items.
:
1
:
SPLIT
:
OFF
:
OFF
:
ON
:
OFF
EXIT
RETURN
No.1 No.2
REMOTE
No.4
No.3
OUT
REMOTE
IN
Display 2
REMOTE
OUT
No.1 No.2
REMOTE
No.4
No.3
IN
Display 3
1 DIVIDER
SOURCE
WORK TIME
2 DIVIDER
SOURCE
WORK TIME
SEL.
Information
REPEAT TIMER settings
DIVIDER: Divide the screen into 1, 4 or 9 sections.
SOURCE: Set the input mode to be displayed.
WORK TIME: Can be set to up to 4 hours 15 minutes
in units of 1 minute.
If you set both timers, Timer 1 and Timer 2 run
consecutively.
In the case of the Video wall, timer No.1 can be used to
control all the displays simultaneously.
* This becomes effective when the on-screen menu goes
out.
Advanced OSM Settings Menu

Setting the menu mode

This allows you to access full menu items.
When P. ON DELAY or PLE LINK is ON, this won't be
turned OFF.
Example: Setting "ON"
On "ADVANCED OSM" of "MAIN MENU", select "ON".

MAIN MENU

AUDIO
IMAGE ADJUST
OPTION1

ADVANCED OSM

:
OFF
NEXT PAGE
SEL.
EXIT
ADJ.
EXIT
Information
ADVANCED OSM settings
ON: All of the main menu items are available for
advanced users.
OFF: Some of the main menu items are not available
(e.g. OPTION2, OPTION3).
31
REPEAT TIMER
:
1
: VIDEO1
:
00H03M
:
4
:
RGB1
:
00H06M
ADJ.
EXIT
RETURN
1 / 2
MAIN MENU
AUDIO
IMAGE ADJUST
OPTION1
OPTION2
OPTION3
ADVANCED OSM
:
ON
NEXT PAGE
SEL.
EXIT
ADJ.
1 / 2
EXIT
