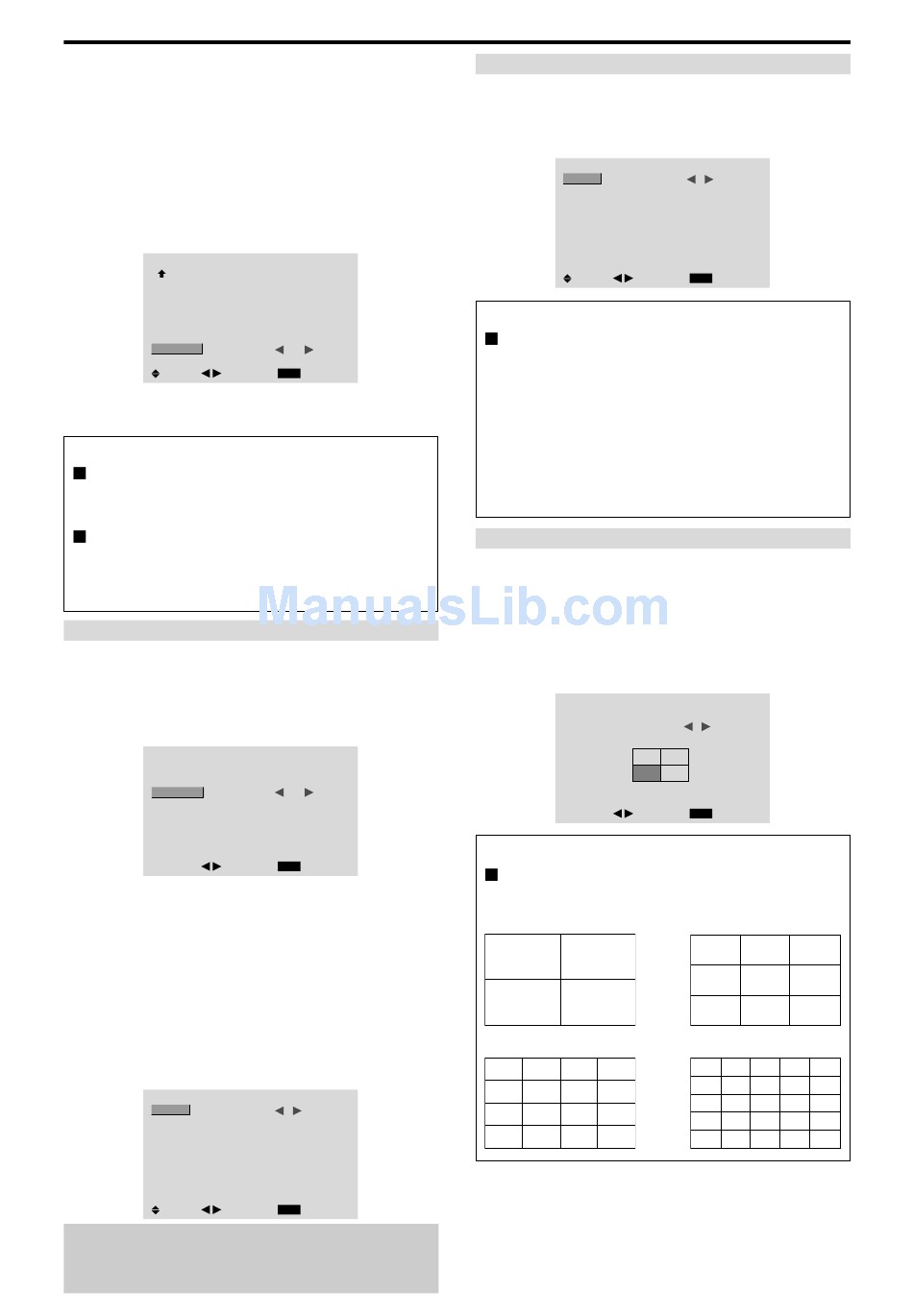

ID number setting
When using more than one of these displays, this function
sets ID numbers so that operation of the remote control
does not cause multiple monitors to operate at the same
time.
Example: Setting "2"
Set "ADVANCED OSM" to "ON" in the main menu (1/
2), then perform the following operations.
On "ID NUMBER" of "OPTION3" menu, select "2".
OPTION3
PREVIOUS PAGE
TIMER

PWR. ON MODE

CONTROL LOCK

IR REMOTE

LOOP OUT

ID NUMBER

VIDEO WALL

SEL.
ADJ.
* To reset back to ALL
Press the CLEAR button.
Information
ID NUMBER settings
ALL: ID NUMBER will not be set.
1 to 256: ID NUMBER will be set.
When the ID NUMBER have been set
You can also set ID NUMBER for each remote control
to operate the plasma display individually. To do so,
see below.
To set the ID number for the remote control
Example: Setting "2"
Press the ID SELECT button on the remote control.
The "ID SELECT" screen appears.
On "ID NUMBER" of "ID SELECT" menu, select "2".
ID SELECT

POSITION :

ID NUMBER
ADJ.
* To reset back to ALL
Press the CLEAR button.
Video Wall setting
Use this feature to configure a 4-25 video wall.
Set "ADVANCED OSM" to "ON" in the main menu (1/
2), then perform the following operations.
On "OPTION3" menu, select "VIDEO WALL", then press
the MENU/ENTER button.
The "VIDEO WALL" screen appears.
VIDEO WALL

DIVIDER

POSITION
DISP. MODE
AUTO ID
IMAGE ADJUST
P. ON DELAY
PLE LINK
REPEAT TIMER
SEL.
ADJ.
Note: A contingency method of shutting off the electric
power should be used in cases of emergency during video
wall setup.
3 / 3
:
LAST
:
OFF
:
ON
:
OFF
:
2
EXIT
RETURN
1
:
2
EXIT
RETURN
:
1
:
SPLIT
:
OFF
:
OFF
:
OFF
:
OFF
EXIT
RETURN
DIVIDER
Set the 4-25 video wall.
Example: Setting "4"
On "DIVIDER" of "VIDEO WALL" menu, select "4".
DIVIDER
POSITION
DISP. MODE
AUTO ID
IMAGE ADJUST
P. ON DELAY
PLE LINK
REPEAT TIMER
SEL.
Information
DIVIDER settings
OFF, 1: 1 Screen (Matrix display function does not
work)
4: 4 Screens (2×2 video wall)
9: 9 Screens (3×3 video wall)
16: 16 Screens (4×4 video wall)
25: 25 Screens (5×5 video wall)
* When you select 4-25, set the VIDEO WALL
POSITION.
VIDEO WALL POSITION
Set the position of each display.
Example: Setting "4"
On "VIDEO WALL" menu, select "POSITION", then press
the MENU/ENTER button.
The "VIDEO WALL POSITION" screen appears.
Select "NO. 4" of "POSITION NO.".
VIDEO WALL POSITION
Information
VIDEO WALL POSITION settings
1 Screen: There is no need to set POSITION.
4 Screens
NO. 1
NO. 2
NO. 4
NO. 3
16 Screens
NO. 16 NO. 17 NO. 18 NO. 19
NO. 20 NO. 21 NO. 22 NO. 23
NO. 24 NO. 25 NO. 26 NO. 27
NO. 28 NO. 29 NO. 30 NO. 31
29
VIDEO WALL
:
4
:
SPLIT
:
OFF
:
OFF
:
OFF
:
OFF
ADJ.
EXIT
RETURN
POSITION NO.
4
ADJ.
EXIT
RETURN
9 Screens
NO. 7
NO. 8
NO. 10
NO. 11
NO. 13
NO. 14
25 Screens
NO. 32 NO. 33 NO. 34 NO. 35 NO. 36
NO. 37 NO. 38 NO. 39 NO. 40 NO. 41
NO. 42 NO. 43 NO. 44 NO. 45 NO.46
NO. 47 NO. 48 NO. 49 NO. 50 NO. 51
NO. 52 NO. 53 NO. 54 NO. 55 NO. 56
NO. 9
NO. 12
NO. 15
