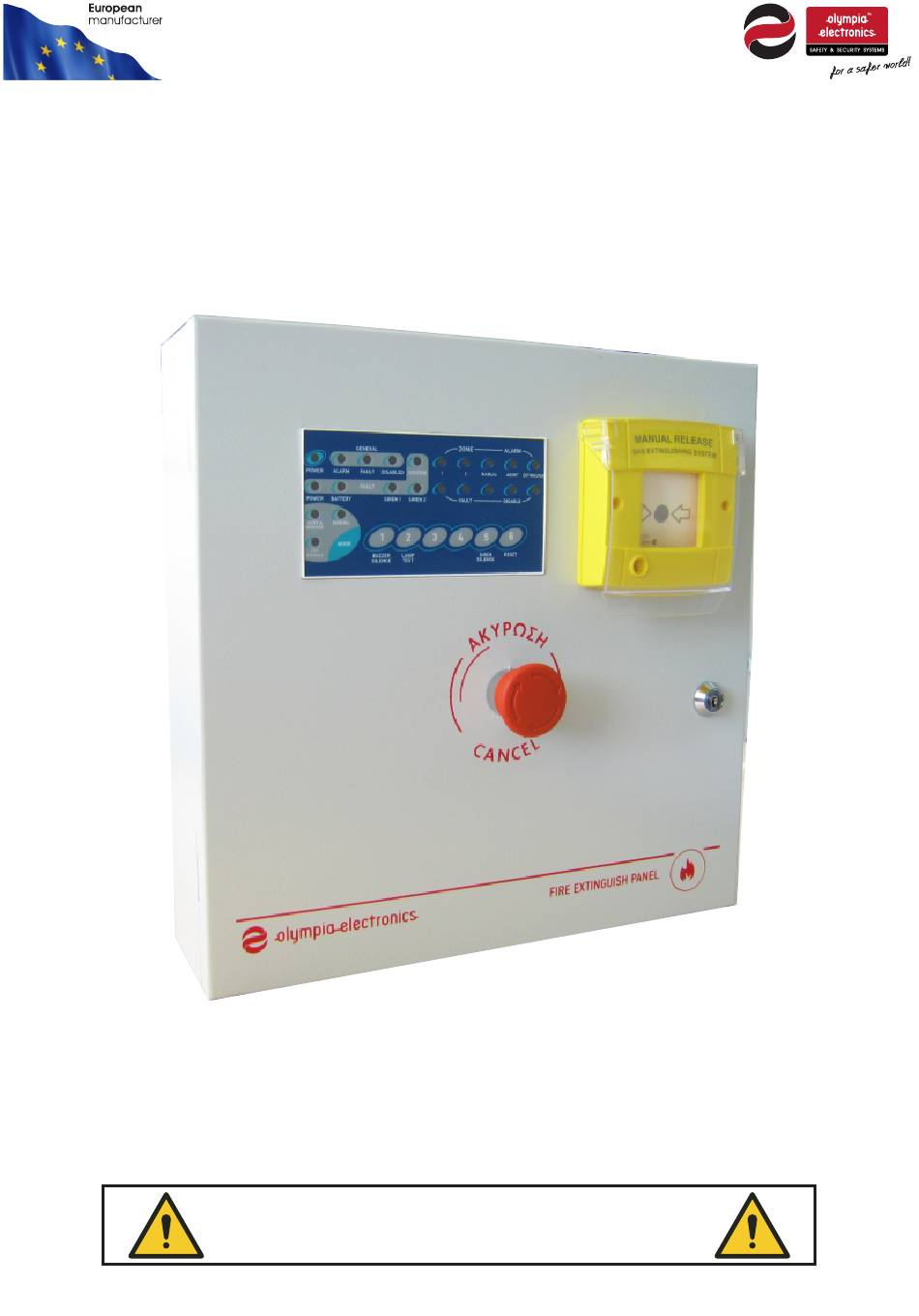

BS-627 Document number :921627000_09_015 4 ZONE PANEL WITH ONE EXTINGUISH OUTPUT Page: 2 of 13 Date: 06/06/2024 1. INTRODUCTION 1.1 GENERAL DESCRIPTION The panel has : - One fire extinguish output monitored for open and short circuit. The output can operate with actuators or electro valves.
BS-627 Document number :921627000_09_015 4 ZONE PANEL WITH ONE EXTINGUISH OUTPUT Page: 3 of 13 Date: 06/06/2024 2.2 LED INDICATORS The LED indicators provide important information about the panel’s active statuses, while more detailed information is displayed on the screen.
Page 4
BS-627 Document number :921627000_09_015 4 ZONE PANEL WITH ONE EXTINGUISH OUTPUT Page: 4 of 13 Date: 06/06/2024 2.3 CONTROL KEYBOARD DESCRIPTION/OPERATION The panel is controlled / operated using the six numeric keys 1 to 6. When a key is pressed a short tone is issued.
Page 5
BS-627 Document number :921627000_09_015 4 ZONE PANEL WITH ONE EXTINGUISH OUTPUT Page: 5 of 13 Date: 06/06/2024 ACCESS LEVEL 3: These functions are implemented during the installation and need the technician code to be accessed. The technician code is "364", it is the same for all panels and cannot be changed.
Page 6
R2= alarm relay 2 RF= fault relay Relay1 Terminal of Olympia Electronics Addressable Panel Zone Terminal of Olympia Electronics Conventional Panel 5k6/0.5W BS-527 5k6/0.5W BS-527 12k/0.5W 12k/0.5W 5k6/0.5W BS-537 470Ω/0.5W 5k6/0.5W BS-533 OUT IN Figure 3. Connecting devices to BS-627 panel...
Page 7
BS-627 Document number :921627000_09_015 4 ZONE PANEL WITH ONE EXTINGUISH OUTPUT Page: 7 of 13 Date: 06/06/2024 3.2 Using Actuators You can connect actuators in series. If you use 1 or 2 actuators, you must connect a 2.7 Ohm / 5W resistor in series as shown below on the right. If you use 3 or 4 actuators, you just connect them in series.
BS-627 Document number :921627000_09_015 4 ZONE PANEL WITH ONE EXTINGUISH OUTPUT Page: 8 of 13 Date: 06/06/2024 3.3 Siren - Sounder Connections Each panel offers 2 independent circuits for connecting sirens, bells, or other devices that need 24V DC to operate. Each circuit can supply a maximum of 300mA to the devices.
BS-627 Document number :921627000_09_015 4 ZONE PANEL WITH ONE EXTINGUISH OUTPUT Page: 9 of 13 Date: 06/06/2024 3.5 Connecting the BS-489 Telephone Operator BS-627 panel Mode 2 ON - Alarm Mode 2 OFF - Fault Figure 8. Connection diagram of BS-489 telephone operator.
BS-627 Document number :921627000_09_015 4 ZONE PANEL WITH ONE EXTINGUISH OUTPUT Page: 10 of 13 Date: 06/06/2024 4. INSTALLATION The installation of the panel must be carried out by qualified personnel only. Disconnect power before servicing. Never insert or remove boards or components with the power on.
4.3. Battery Connection The battery compartment has the appropriate dimensions for two batteries Α-986 of Olympia Electronics. The charging unit on the PCB is also designed for this specific battery. Replace the battery only with one of the same type.
BS-627 Document number :921627000_09_015 4 ZONE PANEL WITH ONE EXTINGUISH OUTPUT Page: 12 of 13 Date: 06/06/2024 TECHNICAL SPECIFICATIONS MAINS POWER SUPPLY 220-240V AC 50/60Hz CONSUMPTION 100VA BATTERY TYPE Two Batteries 12V Lead acid sealed 7Ah maximum (A-986) CHARGING CIRCUIT Stabilized power supply 13.8V / max.
Olympia Electronics reserves the right to repair or to replace the returned goods and to or not charge the buyer depending on the reason of defection. Olympia Electronics reserves the right to charge or not the buyer the transportation cost.
