2 Components and Power Supply

Chapter 2 Components and Power Supply

The following chapter provides detailed information on the chassis of the SDE routers and its components. This in-
cludes information on:

• Components.

• Assembly.
• Power supply.
• Data connection.
Refer to Appendix A.3.1 Hardware Architecture for the correspondence between specific SDE router models and
their chassis.
2.1 Components

2.1.1 Front panel

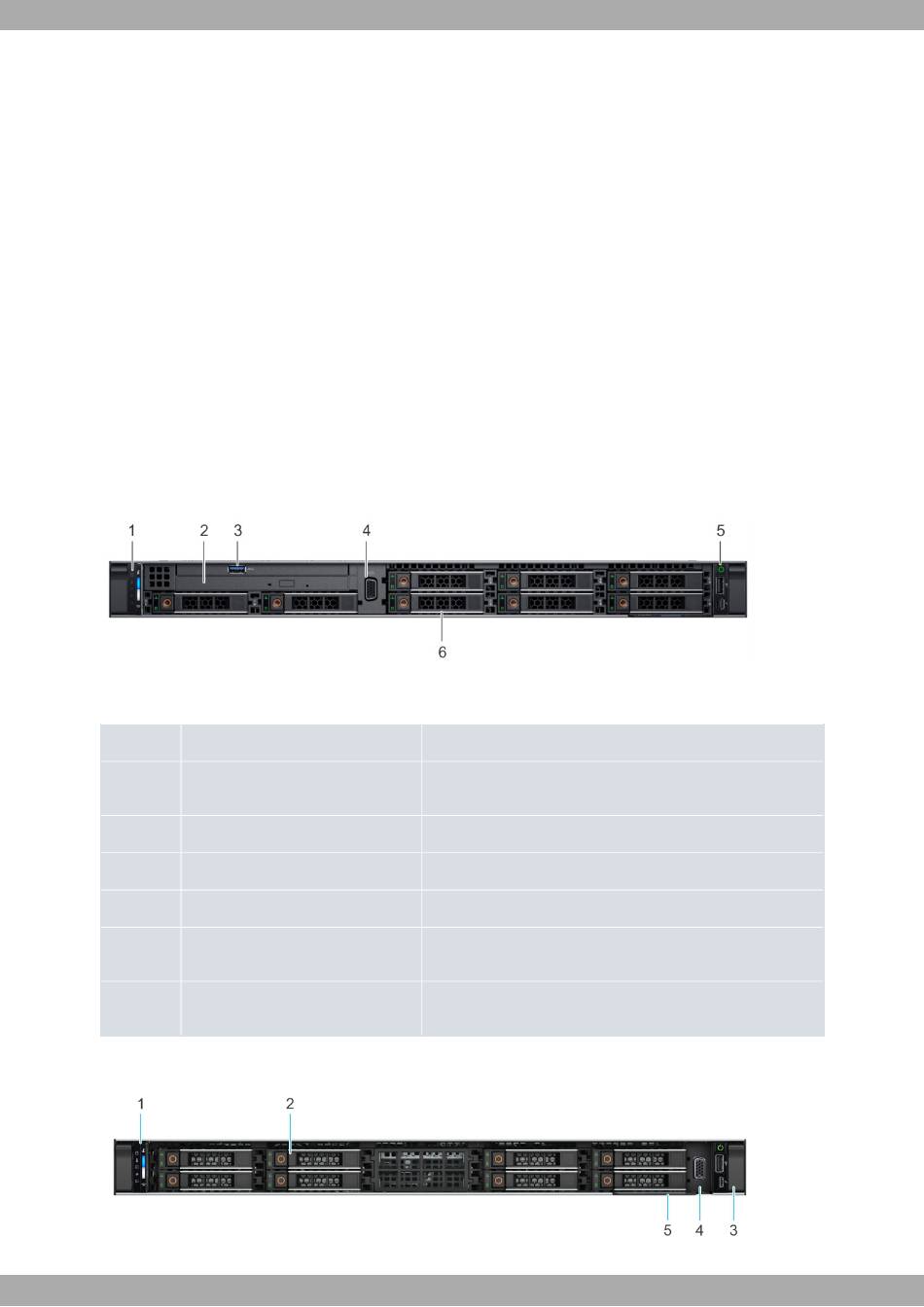

The following figures show the front panels of each router.
2.1.1.1 Dell PowerEdge R640
Dell PowerEdge R640 Front Panel
Fig. 1:
The components of the Dell PowerEdge R640 front panel are as follows:
Item
1
2
3
4
5
6
2.1.1.2 Dell PowerEdge R660
Dell PowerEdge R660 Front Panel
Fig. 2:
2
Feature
Left control panel
N/A
USB port
VGA port
Right control panel
Drive slots
Description
Contains the system health and system ID, status LED, and the
iDRAC Quick Sync 2 (wireless) indicator.
N/A
The USB port is USB 3.0 compliant.
Allows you to connect a display to the system.
Home to the power button, USB port, iDRAC Direct micro port,
and the iDRAC Direct status LED.
They allow you to install drives that are supported on your sys-
tem.
