Teldat SDE Installation Manual page 12

2 Components and Power Supply

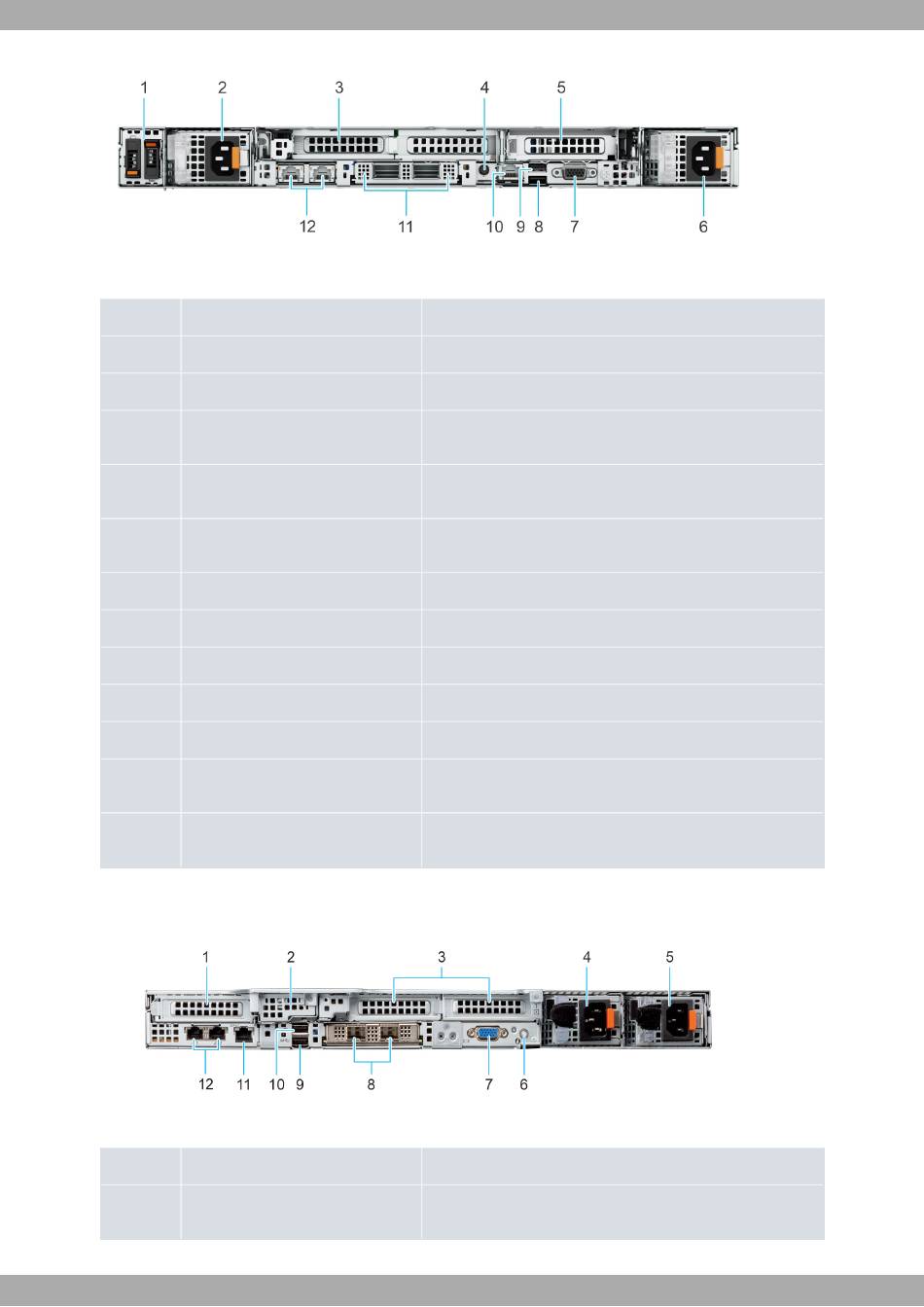

Dell PowerEdge R660 Rear Panel
Fig. 9:
The following table provides information and a description of each component:
Item
1
2
3
4
5
6
7
8
9
10
11
12
2.1.2.3 Dell PowerEdge R660xs
The following figure shows the rear panel.
Dell PowerEdge R660xs Rear Panel
Fig. 10:
The following table provides information and a description of each component:
Item
1
8
Feature
BOSS-N1 module
Power supply unit
PCIe expansion card riser 2
System Identification (ID) button
PCIe expansion card riser 3
Power supply unit
VGA port
USB 3.0 port
USB 2.0 port
Dedicated iDRAC9 Ethernet port
OCP NIC card (optional)
NIC ports (optional)
Feature
PCIe expansion card riser 1 (slot 1)
Description
BOSS module for internal system boot.
PSU1 is the system's primary PSU.
The expansion card riser allows you to connect PCI Express
expansion cards.
Press the button to identify a system in a rack by turning on the
system ID button.
The expansion card riser allows you to connect PCI Express
expansion cards.
PSU2 is the system's secondary PSU.
Allows you to connect a display device to the system.
The USB port is 9-pin and 3.0-compliant.
The USB port is 4-pin, 2.0-compliant.
Allows you to remotely access iDRAC.
The OCP NIC card supports OCP 3.0. NIC ports are part of the
OCP card that is connected to the system board.
The NIC ports that are integrated on the LOM card provide net-
work connectivity.
Description
The expansion slot(s) allow you to connect PCI Express expan-
sion cards.
Teldat S.A.
SDE
