P A R T S L I S T
Item
Qty
Description
A
1
180 Degree Breakaway Goal
B
1
Cover Plate (Installed)
C
2
8-32 Machine Screw (Installed)
D
2
Nylon Net Tie
E
1
1/4" Long Arm Hex Key
Inspect all contents prior to installation. Report any missing parts to dealer immediately.
Read all instructions before proceeding.
The Vertical Assembly Bolt is under Extreme Spring Pressure! Do Not Adjust or Remove!
1.
Remove the two 8-32 Machine Screws (C) and remove Cover Plate (B). Mount the 180 Degree Goal
(A) to backboard with the hardware provided in the Goal Hardware Bag (H). Make sure the goal is
level then tighten hardware. See Figure 1.

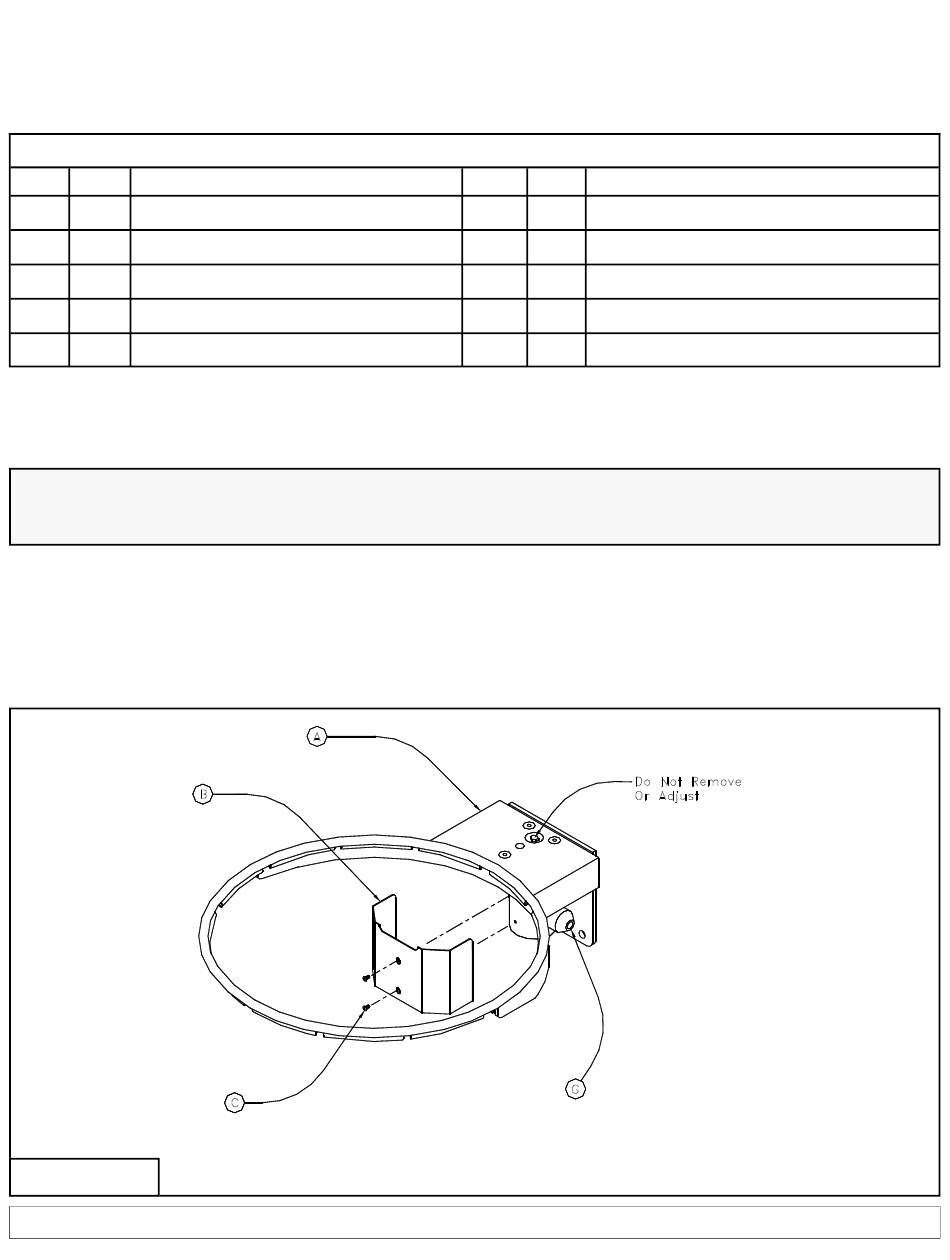

Figure 1
Date: 05/15/2017 Rev: 2
—— Instruction Manual ——
DEGREE BREAKAWAY GOAL
B.A.
N.J.C.
Item
Qty
F
1
G
2
H
1
I
3
J
1
Warning!
File: \drive.f\pub\inst\180breakaway
1
Description
Anti Whip Net
Release Pressure Adjustment Screws (Installed)
Goal Hardware Bag
Rebound Elasticity Adjustment Screws (Installed)
3/16" Long Arm Hex Key
Ref#: 910184
