Bison BA775 Instruction Manual

—— Instruction Manual ——
M
ODEL

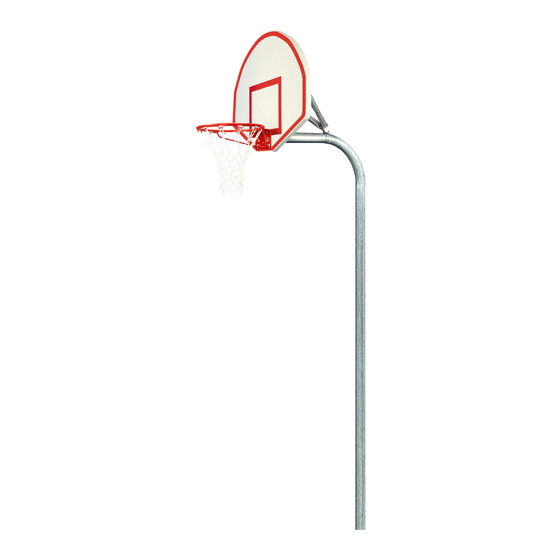

Heavy Duty Gooseneck Pole
P A R T S L I S T
Item Qty Description
A 1 Backboard Mounting Bracket
B 3 3-1/2" Band Clamp
C 2 7/16" x 2" Carriage Bolt
D 2 3/8" x 1" Hex Bolt
E 2 3/8" Flat Washer
F 2 3/8" Lock Washer
G 3 5/16" x 2" Carriage Bolt
♦
Inspect all contents prior to installation. Report any missing parts to dealer immediately.
♦
Read all instructions before proceeding.
2 Ea. 9/16" Combination Wrench
2 Ea. 5/8" Combination Wrench
1 Ea. 3/4" Combination Wrench
1 Ea. Adjustable Wrench
Date: 12-3-00 Rev: 8
B 775
A

TOOLS/MATERIALS REQUIRED

B.A. N.J.C.
Item Qty Description
H 3 5/16" Flange Nut
I 2 7/16" Flat Washer
J 2 7/16" Lock Washer
K 2 7/16" Hex Nut
L 2 Backboard Brace
M 2 1/2" Set Screw, Square Head
N 2 1/2" Jam Nut
1 Ea. Level
1 Ea. Tape Measure
1 Ea. 12" Post Hole Digger and/or a Shovel
6-8 Ea. 60# Bag of Premix Concrete
File: Bisonserver/publisher/instructions/BA775
Page 1
Customer Service
(800) 247-7668
Ref#: 920099
