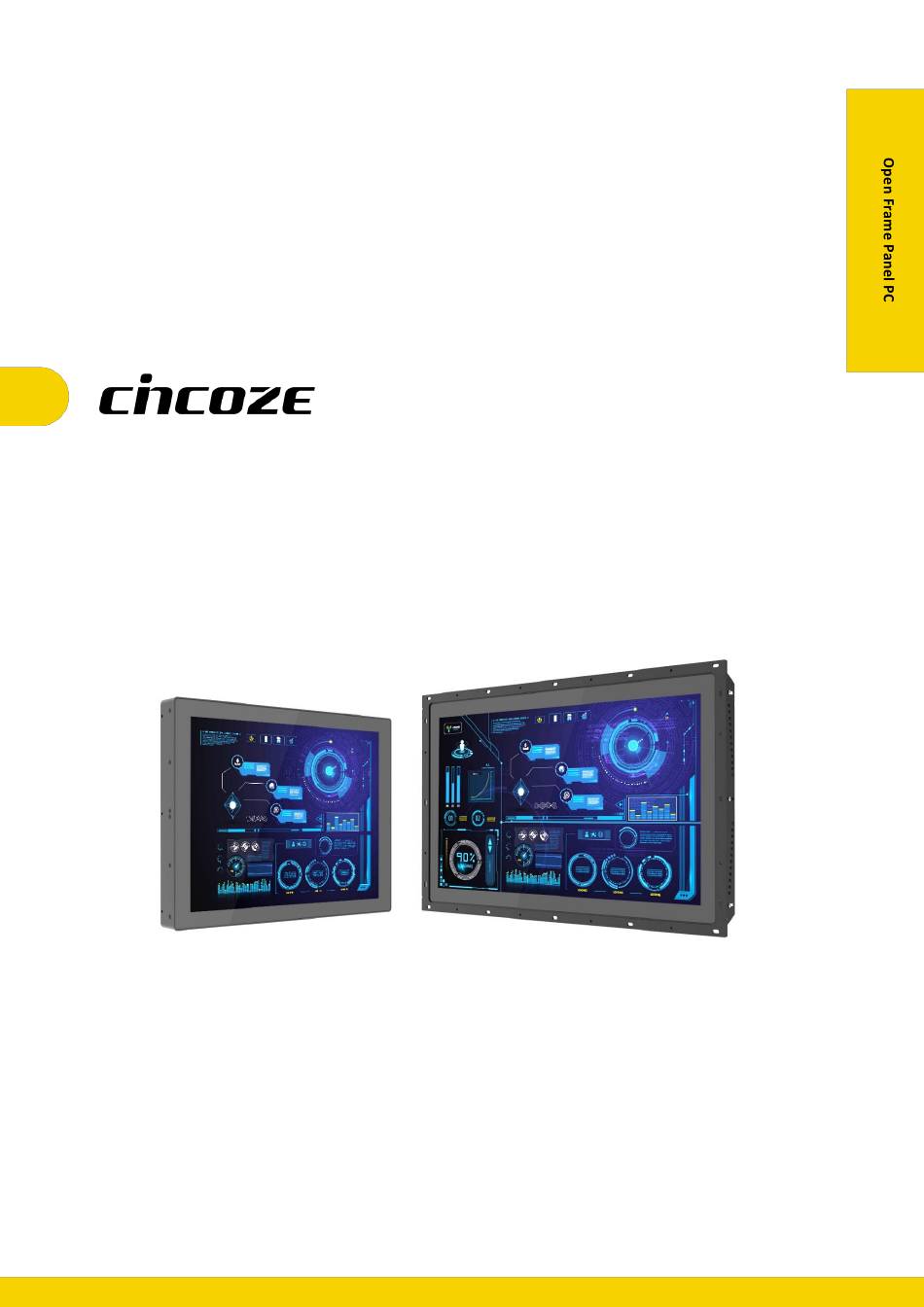

- Page 1 CO-W124C/P1101 Series User Manual Open Frame Panel PC 24” TFT LCD Open Frame Panel PC with Intel® Atom® / Pentium® Processor Version: V1.00...
-
Page 2: Table Of Contents
Chapter 1 Product Introductions ......................11 1.1 Overview ..........................12 1.2 Highlights..........................12 1.3 Key Features ........................... 13 1.4 Hardware Specification ......................14 1.4.3 CO-W124C/P1101 Series ......................14 1.5 System I/O ..........................18 1.5.1 Front ............................18 1.5.2 Rear ............................18 1.5.3 Left ............................. 19 1.5.4 Right ............................ - Page 3 4.7 Save & Exit ..........................70 Chapter 5 Product Application ......................71 5.1 Digital I/O (DIO) application ....................72 5.1.1 Digital I/O Programming Guide ....................72 5.2 Digital I/O (DIO) Hardware Specification ................78 5.2.1 DIO Connector Definition ......................79 CO-W124C/P1101 Series | User Manual...
- Page 4 Chapter 6 Optional Modules and Accessories ..................80 6.1 Location of the Connectors and Switches ................81 6.2 Installing CFM-IGN Module ....................82 6.3 Installing CFM-PoE Module ....................84 6.4 Installing VESA Mount ......................86 6.5 Installing Rack Mount ......................88 CO-W124C/P1101 Series | User Manual...
-
Page 5: Preface
2024/11/11 Copyright Notice © 2024 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and remain subject to change without prior notice. -
Page 6: Declaration Of Conformity
(such as a fuse, battery, etc.), are not warranted. Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain an RMA number from us. Our staff is available at any time to provide you with the most friendly and immediate service. - Page 7 Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies.
-
Page 8: Technical Support And Assistance
Technical Support and Assistance 1. Visit the Cincoze website at www.cincoze.com where you can find the latest information about the product. 2. Contact your distributor or our technical support team or sales representative for technical support if you need additional assistance. Please have following information ready before you call: ⚫... -
Page 9: Safety Precautions
16. Ensure to connect the power cord of power adapter to a socket-outlet with earthing connection. 17. Dispose of used battery promptly. Keep away from children. Do not disassemble and do not dispose of in fire. CO-W124C/P1101 Series | User Manual... -
Page 10: Package Contents
24" TFT-LCD Full HD 16:9 Open Frame Display Modular Panel CO-W124C/P1101-E50 PC with Intel Atom E3950 Quad Core Processor and P-Cap. Touch 24" TFT-LCD Full HD 16:9 Open Frame Display Modular Panel CO-W124C/P1101-N42 PC with Intel Pentium N4200 Quad Core Processor and P-Cap. Touch CO-W124C/P1101 Series | User Manual... -
Page 11: Chapter 1 Product Introductions
Chapter 1 Product Introductions CO-W124C/P1101 Series | User Manual... -
Page 12: Overview
1.1 Overview Cincoze power efficient open frame modular panel PCs (CO-100/P1101 Series) support Intel® Atom® and Pentium® processors, and multiple displays. Native I/O ports include LAN, USB, COM, and DIO, and the series supports CFM technology, offering expansion functions such as Power Ignition Sensing (IGN) to meet different application needs. -
Page 13: Key Features
1x DDR3L SO-DIMM max. up to 8GB ⚫ Designed with Adjustable Mounting Bracket ⚫ Support Flat / Standard / VESA / Rack Mount ⚫ Front Panel IP65 Compliant ⚫ Wide Operating Temperature ⚫ Cincoze Patent CDS Technology Support CO-W124C/P1101 Series | User Manual... -
Page 14: Hardware Specification
• EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A CO-W124C/P1101 Series | User Manual... - Page 15 • 1x Reset Button Reset Button • 1x Clear CMOS Switch Clear CMOS Switch • 1x Remote Power On/Off Connector, 2-pin Terminal Block Remote Power On/Off Storage • 1x 2.5” SATA HDD Bay (SATA3.0) SSD/HDD CO-W124C/P1101 Series | User Manual...
- Page 16 • Time: 294,617 hours MTBF Operating System • Windows®10 Microsoft® Windows® • Supports by project Linux Environment • Ambient with Air Flow: -40°C to 70°C (with Industrial Grade Peripherals) Operating Temperature • -40°C to 85°C Storage Temperature CO-W124C/P1101 Series | User Manual...
- Page 17 Vibration • LVD IEC/EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. Dimension CO-W124C/P1101 Unit: mm...
-
Page 18: System I/O
COM1 supports RS232/422/485 serial device LAN1, LAN2 Remote Power On/Off Used to connect the system to a local area Used to plug a remote power on/off terminal network block Used to connect an analog VGA monitor CO-W124C/P1101 Series | User Manual... -
Page 19: Left
Digital I/O Line-Out The Digital I/O terminal block supports 4 digital Used to connect a speaker input and 4 digital output Antenna USB 3.0 Used to install an antenna jack Used to connect USB 3.0/2.0 device CO-W124C/P1101 Series | User Manual... -
Page 20: Chapter 2 Switches & Connectors
Chapter 2 Switches & Connectors CO-W124C/P1101 Series | User Manual... -
Page 21: Location Of Switches And Connectors
2.1 Location of Switches and Connectors 2.1.1 Top View CO-W124C/P1101 Series | User Manual... -
Page 22: Bottom View
2.1.2 Bottom View CO-W124C/P1101 Series | User Manual... -
Page 23: Switches And Connectors Definition
Mini PCI-Express / mSATA Socket Power1 / Power2 +5V / +12V Power Output POE_PH2 POE Board to Board Connector IGN_PH3 IGN Board to Board Connector PWR_SW1 Power Switch LVDS_OUT1 LVDS Connector SATA1 SATA with Power Connector CO-W124C/P1101 Series | User Manual... -
Page 24: Definition Of Switches
BL_PWR1: Backlight Power on / off Switch Definition Push Backlight Power on / off switching BL_UP1: Backlight Increase Switch Definition Push Backlight Increase BL_UP2: Backlight Decrease Switch Definition Push Backlight Decrease RESET1: Reset Button Switch Definition Push Reset System CO-W124C/P1101 Series | User Manual... - Page 25 0V (RI) ON (Default) ON (Default) COM1 Location Function DIP3 DIP4 0V (RI) ON (Default) ON (Default) COM2 LED1: Power / HDD Access LED Status LED Color Status POWER ON POWER Green HDD Read/Write Blinking Yellow CO-W124C/P1101 Series | User Manual...
-
Page 26: Definition Of Connectors
CLKREQ# SATARN0 SIM_VCC 10 SIM_DATA +1.5V 11 REFCLK- 12 SIM_CLK SMB_CLK +1.5V PETN0 (USB3TN0) / 13 REFCLK+ SATATN0 14 SIM_Reset SMB_DATA PETP0 (USB3TP0) / 15 GND SATATP0 16 SIM_VPP +3.3V 17 NA 18 GND USB_D- CO-W124C/P1101 Series | User Manual... - Page 27 +3.3VAUX CLKREQ# PERP0 / SATARN0 10 NA +1.5V 11 REFCLK- 12 NA SMB_CLK +1.5V 13 REFCLK+ PETN0 / ATATN0 14 NA SMB_DATA 15 GND PETP0 / SATATP0 16 NA +3.3V 17 NA 18 GND USB_D- CO-W124C/P1101 Series | User Manual...
- Page 28 DC power connector to system. LAN1 / LAN2: LAN LED Status Definition Act LED Status Definition Blinking Yellow Data Activity No Activity Link LED Status Definition Steady Green 1Gbps Network Link Steady Orange 100Mbps Network Link 10Mbps Network Link CO-W124C/P1101 Series | User Manual...
- Page 29 Connector Type: 9-pin D-Sub RS422 / 485 RS485 RS232 Definition Full Duplex Half Duplex Definition Definition DATA - DATA + POWER1/ POWER2: Power Connector Connector Type: 1x4 4-pin Wafer, 2.0mm pitch Pin 1 Definition +12V CO-W124C/P1101 Series | User Manual...
-
Page 30: Chapter 3 System Setup
Chapter 3 System Setup CO-W124C/P1101 Series | User Manual... -
Page 31: Removing Top Cover
3.1 Removing Top Cover 1. Loosen the 8 screws of front and rear panel, then place them aside. 2. Remove the cover from the chassis. Place the top cover gently. CO-W124C/P1101 Series | User Manual... -
Page 32: Installing So-Dimm Memory
2. Tilt the SO-DIMM module at a 45-degree angle and insert it to SO-DIMM socket until the gold-pated connector of module contacted firmly with the socket. 45° 3. Press the modules down until it’s fixed firmly by the two locking latches on each side. CO-W124C/P1101 Series | User Manual... -
Page 33: Installing Mini-Pcie Card
Insert the Mini-PCIe card at a 45-degree angle and insert it to the slot until the gold-pated connector of module contacted firmly with the slot. 45° Press down the module and fasten two screws to secure the module. CO-W124C/P1101 Series | User Manual... -
Page 34: Installing Antenna(S)
If you have a Half-size Mini-PCIe card, make sure use extender to make it Full-size as shown below. 3.4 Installing Antenna(s) 1. Remove the antenna hole covers at front panel. 2. Have antenna jack penetrate through the hole. CO-W124C/P1101 Series | User Manual... - Page 35 3. Put on washer and fasten the nut with antenna jack. 4. Assemble the antenna and antenna jack together. 5. Attach the RF connector at another end of cable onto the module. CO-W124C/P1101 Series | User Manual...
-
Page 36: Installing Cpu Thermal Pad
3.5 Installing CPU Thermal Pad 1. Place the thermal pad on the CPU heatsink. thermal pad Before assembling the system’s chassis cover, please make sure the protective film on the Thermal Pad has been removed! CO-W124C/P1101 Series | User Manual... -
Page 37: Installing Top Cover
3.6 Installing Top Cover 1. Put on the cover. 2. Fasten the 8 screws to fix the cover. CO-W124C/P1101 Series | User Manual... -
Page 38: Installing Sata Hard Drive
3.7 Installing SATA Hard Drive 1. Loosen 2 screws on front panel to remove cover plate. 2. Turn over the unit to have the bottom side face up and loosen 1 screw. 3. Pull out the HDD bracket. CO-W124C/P1101 Series | User Manual... - Page 39 4 provided screws to assemble HDD and HDD bracket together. 5. Align the HDD bracket with the entrance of HDD bay. And insert the HDD bracket until the connector of HDD contact the SATA connector firmly. CO-W124C/P1101 Series | User Manual...
-
Page 40: Installing Sim Card
3.8 Installing SIM Card 1. Loosen 2 screws on front panel to remove cover plate. 2. SIM card slot is at the front panel of the system. 3. Insert the SIM card. CO-W124C/P1101 Series | User Manual... -
Page 41: Disassemble The Co Display Module
The complete shipping product is the CO display module already installed on the P1100. This chapter will introduce how to dissemble CO display module and P1100. 1. Remove the 6 screws on the display module. 2. Disconnect the modules. CO-W124C/P1101 Series | User Manual... -
Page 42: Installing Standard Mount
These positions are correct for Standard Mount, so no additional adjustments are necessary. CO-W124C 在出貨時，定位螺絲已固定在預設位置，如下圖紅圈所示。此位置適用於 Standard Mount 標準安裝，因此在作 Standard Mount 安裝時，不需要再額外調整定位螺絲的位置。 CO-W124C Top Side View CO-W124C Bottom Side View CO-W124C Left Side View CO-W124C Right Side View CO-W124C/P1101 Series | User Manual... -
Page 43: Fixing From Front Side
3.10.2. 3.10.1 Fixing from front side 1. Fasten the screws from the cabinet’s front side. Please prepare 12 pcs of M4 screws for fixing the module through the circle holes (with screw thread). CO-W124C/P1101 Series | User Manual... -
Page 44: Fixing From Rear Side
If the cabinet panel is with bosses as the following figures, user can prepare 16 pcs of M4 screws for fixing the module through the oblong holes (oblong hole size: 9mmx 4mm, without screw thread). CO-W124C/P1101 Series | User Manual... -
Page 45: Installing Flat Mount
1. Loosen the screws marked with blue circles on all four sides of the module (Top, Bottom, Left, Right). Then, remove the positioning screws marked with red circles, as shown in the four images below. CO-W124C Top Side View CO-W124C Bottom Side View CO-W124C Left Side View CO-W124C Right Side View CO-W124C/P1101 Series | User Manual... - Page 46 4. According to the thickness = 3mm for the example, push down the top and bottom-side mounting brackets to the place at screw hole = 3mm; and then fasten back the two positioning screws on the top and bottom-side mounting brackets. CO-W124C Top Side View CO-W124C/P1101 Series | User Manual...
- Page 47 CO-W124C Bottom Side View 5. Fasten the three screws on the top and bottom-side mounting brackets. CO-W124C Top Side View CO-W124C Bottom Side View 6. Locate the left and right-side mounting brackets. CO-W124C/P1101 Series | User Manual...
- Page 48 8. Lift up the left and right-side mounting brackets with aligning the top and bottom-side mounting brackets, then fasten the three screws by the indicated sequence 1, 2, 3 on each side. CO-W124C Left Side View CO-W124C Right Side View CO-W124C/P1101 Series | User Manual...
-
Page 49: Fixing From Front Side
3.11.2. 3.11.1 Fixing from front side 1. Fasten the screws from the cabinet’s front side. Please prepare 12 pcs of M4 screws for fixing the module through the circle holes (with screw thread). CO-W124C/P1101 Series | User Manual... -
Page 50: Fixing From Rear Side
If the cabinet panel is with bosses as the following figures, user can prepare 16 pcs of M4 screws for fixing the module through the oblong holes (oblong hole size: 9mmx 4mm, without screw thread). CO-W124C/P1101 Series | User Manual... -
Page 51: Disassembling The Mounting Brackets
1. Remove the 16 screws. 2. Remove the 3 screws on the left and right side of mounting brackets. 3. Remove the 3 screws on the top and bottom side of mounting brackets. 4. Remove the four mounting brackets. CO-W124C/P1101 Series | User Manual... -
Page 52: Chapter 4 Bios Setup
Chapter 4 BIOS Setup CO-W124C/P1101 Series | User Manual... -
Page 53: Bios Introduction
( ↑↓ ) to highlight the field and press <Enter> to call up the sub-menu. Then you can use the control keys to enter values and move from field to field within a sub-menu. If you want to return to the main menu, just press the <Esc >. CO-W124C/P1101 Series | User Manual... -
Page 54: Main Setup
Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. 4.2.1 System Date Set the date. Please use <Tab> to switch between date elements. 4.2.2 System Time Set the time. Please use <Tab> to switch between time elements. CO-W124C/P1101 Series | User Manual... -
Page 55: Advanced Setup
This section allows you to configure and improve your system and allows you to set up some system features according to your preference. 4.3.1 Trusted Computing Settings ■ Security Device Support [Enabled] Enables or disables Security Device Support function. ■ SHA-1 PCR Bank [Enabled] Enables or disables SHA-1 PCR Bank function. CO-W124C/P1101 Series | User Manual... -
Page 56: Acpi Settings
Enables or disables system ability to hibernate state (OS/S4 state). This option may not be effective with some OS. ■ ACPI Sleep State [S3 (Suspend to RAM)] Allows users to select the highest Advanced Configuration Power Interface® (ACPI) sleep state that system will enter when suspend button is pressed. CO-W124C/P1101 Series | User Manual... -
Page 57: F81866 Super Io Configuration
Enables or disables Lock Legacy Resources. 4.3.3 F81866 Super IO Configuration Set Parameters of Serial Ports. User can Enable/Disable the serial port and Select an optimal setting for the Super IO Device. ■ Serial Port 1~4 Configuration. CO-W124C/P1101 Series | User Manual... -
Page 58: Hardware Monitor
■ Watch Dog Timer [0] Allows you to set watchdog timer’s value in the range of 0 to 255. 4.3.4 Hardware Monitor This screen displays the current status of all monitored hardware devices/components such as voltages, temperatures. CO-W124C/P1101 Series | User Manual... -
Page 59: S5 Rtc Wake Settings
[Dynamic Time]: Sets an increase minute(s) from current time to wake system from S5. 4.3.6 Serial Port Console Redirection ■ Console Redirection [Disabled] Allow users to enable or disable COM1, COM2, COM3, COM4 console redirection function. CO-W124C/P1101 Series | User Manual... -
Page 60: Cpu Configuration
Enables or disables Intel Virtualization Technology. Virtualization enhanced by Intel Virtualization Technology will allow a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple virtual systems. 4.3.8 Network Stack Configuration CO-W124C/P1101 Series | User Manual... -
Page 61: Csm Configuration
■ Storage [UEFI] Controls the execution of UEFI and Legacy Storage option ROM. [Do not launch]: Disables option ROM execution. [UEFI]: Enables UEFI option ROM only. [Legacy]: Enables legacy option ROM only. ■ Video [UEFI] CO-W124C/P1101 Series | User Manual... -
Page 62: Usb Configuration
Enables or disables XHCI (USB3.0) hand-off function. Use this feature as a workaround for operating systems without XHCI hand-off support. ■ USB Mass Storage Driver Support [Enabled] Enables or disables USB mass storage driver support. CO-W124C/P1101 Series | User Manual... -
Page 63: Chipset Setup
4.4 Chipset Setup This section allows you to configure chipset related settings according to user’s preference. 4.4.1 North Bridge This section provides information on the installed memory size and memory/onboard graphics-related configuration options. CO-W124C/P1101 Series | User Manual... -
Page 64: South Bridge
■ Amplifier Function [Enabled] Enables or disables Amplifier Function. ■ PSE Enable Selection [Enabled] Enables or disables PSE (Power Sourcing Equipment). ■ LAN1 [Enabled] Enables or disables LAN1 Controller. ■ LAN2 [Enabled] Enables or disables LAN2 Controller. CO-W124C/P1101 Series | User Manual... -
Page 65: South Cluster Configuration
PCI Express Root Port 5 (MiniPcie2) ❑ PCI Express Root Port 5 (MiniPcie2) [Enabled] Enables or disables PCI Express Root Port. ❑ PCIe Speed [Auto] Allows you to select PCI Express port speed. Configuration options: [Auto] [Gen1] [Gen2]. CO-W124C/P1101 Series | User Manual... - Page 66 Configuration options: [Auto] [Gen1] [Gen2]. ■ SATA Devices SATA Port 0 ❑ Port 0 [Enabled] Enables or disables SATA Port 0 (SATA1). SATA Port 1 ❑ Port 1 [Enabled] Enables or disables SATA Port 1 (MINIPCIE2). CO-W124C/P1101 Series | User Manual...
- Page 67 ❑ Wake On Lan [Enabled] Enables or disables Wake On LAN (WOL) function. ❑ BIOS Lock [Disabled] Enables or disables BIOS the SC BIOS Lock enable feature. It is required to be enabled to ensure SMM protection of flash. CO-W124C/P1101 Series | User Manual...
-
Page 68: Security Setup
This section allows users to configure BIOS security settings. 4.5.1 Administrator Password Administrator Password controls access to the BIOS Setup utility. 4.5.2 User Password User Password controls access to the system at boot and to the BIOS Setup utility. CO-W124C/P1101 Series | User Manual... -
Page 69: Boot Setup
Allows you to enable or disable Fast Boot function. If enabled, system boots with initialization of a minimal set of devices required to launch active boot option. ■ Hard Drive BBS Priority Allows you to set the order of the legacy devices in this group. CO-W124C/P1101 Series | User Manual... -
Page 70: Save & Exit
■ Save as User Defaults This item allows you to save the changes done so far as user defaults. ■ Restore User Defaults This item allows you to restore the user defaults to all the setup options. CO-W124C/P1101 Series | User Manual... -
Page 71: Chapter 5 Product Application
Chapter 5 Product Application CO-W124C/P1101 Series | User Manual... -
Page 72: Digital I/O (Dio) Application
This section describes DIO application of the product. The content and application development are better understood and implemented by well experienced professionals or developers. 5.1.1 Digital I/O Programming Guide 5.1.1.1 Pins for Digital I/O of Cincoze P1101 series product Item Standard... - Page 73 -o 4e 87 (enable configuration) -o 4e aa (disable configuration) 5.1.1.3 Relative Registers To program the F81866A configuration registers, see the following configuration procedures. CO-W124C/P1101 Series | User Manual...
- Page 74 WriteByte(DataPort, 0x0X) // Set (bit 4~7) = 0 to select GP 74~77 as Input mode. <Input Value> WriteByte(AddrPort, 0x82) // Select configuration register 82h ReadByte(DataPort, Value) // Read bit 4~7 (0xFF)= GP74 ~77 as High. CO-W124C/P1101 Series | User Manual...
- Page 75 // Set (bit 0~3) = 1 to select GP 80 ~83 as Output mode. <Output Value> WriteByte(AddrPort, 0x89) // Select configuration register 89h WriteByte(DataPort, Value) // Set bit 0~3=(0/1) to output GP 80~83 as Low or High <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) CO-W124C/P1101 Series | User Manual...
- Page 76 5.1.1.5 Change base address - DIO base address (Cincoze default 0xA00) <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(dataPort, 0x06) // Select logic device 06h...
- Page 77 7 6 5 4 3 2 1 0 0 1 0 0 - value = DI3 = DO3 7 6 5 4 3 2 1 0 1 0 0 0 - value = DI4 = DO4 5.1.1.7 DIO I/O Port Address CO-W124C/P1101 Series | User Manual...
-
Page 78: Digital I/O (Dio) Hardware Specification
DO Signal have to pull up resistor to XCOM+ for external device, the resistance will affect the pull up current Signal High Level: Pull up resistor to XCOM+ Signal Low Level: = XCOM- Sink Current: 1A (Max) CO-W124C/P1101 Series | User Manual... -
Page 79: Dio Connector Definition
5.2.1 DIO Connector Definition DIO1: Digital Input / Output Connector Connector Type: Terminal Block 1X10 10-pin, 3.5mm pitch Definition Definition XCOM+ (DC INPUT) XCOM- (GND) CO-W124C/P1101 Series | User Manual... -
Page 80: Chapter 6 Optional Modules And Accessories
Chapter 6 Optional Modules and Accessories CO-W124C/P1101 Series | User Manual... -
Page 81: Location Of The Connectors And Switches
Pin 4 Definition 0 second 1 minute 5 minutes 10 minutes 30 minutes 1 hour 2 hours Reserved (0 second) 24V_12V_1: 12V / 24V Car Battery Switch Definition 24V Car Battery Input 12V Car Battery Input CO-W124C/P1101 Series | User Manual... -
Page 82: Installing Cfm-Ign Module
1. Locate the IGN connector on system motherboard as indicated. 2. Insert CFM-IGN module vertically to the female connector on the system’s mainboard, and fasten 2 screws to fix it. 3. Loosen 2 screws on front panel to remove cover plate. CO-W124C/P1101 Series | User Manual... - Page 83 4. IGN function switch is at the front panel of the system. CO-W124C/P1101 Series | User Manual...
-
Page 84: Installing Cfm-Poe Module
3. Turn over the heatsink and paste the thermal pad onto the marked by red squares. Before putting on the thermal block (in the next step), please make sure the protective film on the Thermal Pad has been removed! CO-W124C/P1101 Series | User Manual... - Page 85 Before assembling the system’s chassis cover, please make sure the protective films on the Thermal Pads have been removed! 6. When the system is power on, please note that the POE LED will light on if the POE module is properly installed. CO-W124C/P1101 Series | User Manual...
-
Page 86: Installing Vesa Mount
VESA 75mm and 100 mm standard for various usage. The 75mm VESA uses blue-circle-marked screw holes. The 100mm VESA uses red-circle-marked screw holes. 1. Put the VESA stand on, and align with the mounting holes. CO-W124C/P1101 Series | User Manual... - Page 87 2. Fasten the VESA mount screws to complete the VESA mounting. CO-W124C/P1101 Series | User Manual...
-
Page 88: Installing Rack Mount
Before the installation of rack mount, user need to follow the chapter 3.12 to disassemble the mounting brackets on the CO display module first. 1. Locate the screw holes on the PC or monitor module. 2. Put on the rack mount base and fasten the screws. CO-W124C/P1101 Series | User Manual... - Page 89 For P1001 / P1101 / P1201 / P1301/ P2102/P2102E/P2202/P2202E Left Right Bottom 4. Assemble two rack mount brackets by fastening 4 screws (M5x12), flat washers and hex nuts at each side. For 19”~24” Panel PC series CO-W124C/P1101 Series | User Manual...
- Page 90 © 2024 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.
