Cincoze CO-W124C/P1001 Series User Manual

Open frame panel pc
Hide thumbs

Advertisement

Quick Links

Download this manual

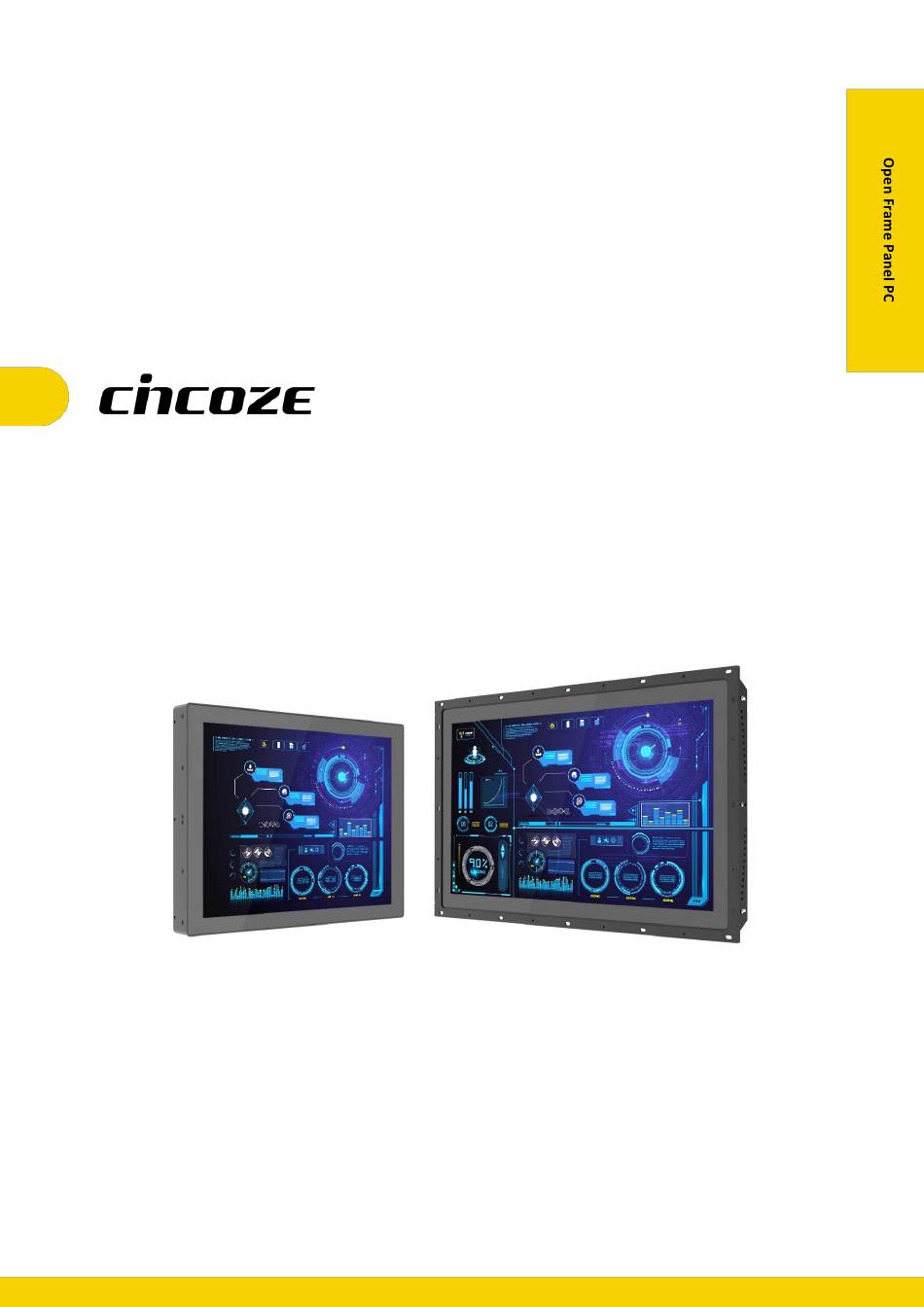

CO-W124C/P1001 Series
User Manual
Open Frame Panel PC
24" TFT LCD Open Frame Panel PC w/ Intel® Atom™ E3845
Quad Core, 4x USB, 2x COM, 1x VGA and 1x DisplayPort
Version: V1.00

Advertisement

loading
Need help?

Need help?

Do you have a question about the CO-W124C/P1001 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cincoze CO-W124C/P1001 Series

Summary of Contents for Cincoze CO-W124C/P1001 Series

  • Page 1 CO-W124C/P1001 Series User Manual Open Frame Panel PC 24” TFT LCD Open Frame Panel PC w/ Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA and 1x DisplayPort Version: V1.00...
  • Page 2 Chapter 1 Product Introductions ......................11 1.1 Overview ..........................12 1.2 Highlights..........................12 1.3 Key Features ........................... 13 1.4 Hardware Specification ......................14 1.4.1 CO-W124C/P1001 Series ......................14 1.5 System I/O ..........................18 1.5.1 Front ............................18 1.5.2 Rear ............................18 1.5.3 Left ............................. 19 1.5.4 Right ............................
  • Page 3 3.6 Installing Top Cover ........................ 38 3.7 Installing SATA Hard Drive ...................... 39 3.8 Installing SIM Card ......................... 40 3.9 Installing CFast Card ....................... 41 3.10 Disassemble the CO Display Module ................... 42 3.11 Installing Standard Mount....................43 3.11.1 Fixing from front side ....................... 44 3.11.2 Fixing from rear side ........................
  • Page 4 4.6.5 UEFI Boot ........................... 70 4.7 Save & Exit ..........................71 4.7.1 Save Changes and Reset ......................71 4.7.2 Discard Changes and Reset ......................71 4.7.3 Restore Defaults ........................71 4.7.4 Save as User Defaults ......................... 71 4.7.5 Restore User Defaults ........................ 71 Chapter 5 Product Application ......................
  • Page 5 2024/11/11 Copyright Notice © 2024 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and remain subject to change without prior notice.
  • Page 6 (such as a fuse, battery, etc.), are not warranted. Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain an RMA number from us. Our staff is available at any time to provide you with the most friendly and immediate service.
  • Page 7 Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies.
  • Page 8 Technical Support and Assistance 1. Visit the Cincoze website at www.cincoze.com where you can find the latest information about the product. 2. Contact your distributor or our technical support team or sales representative for technical support if you need additional assistance. Please have following information ready before you call: ⚫...
  • Page 9 Safety Precautions Before installing and using this device, please note the following precautions. Read these safety instructions carefully. Keep this User’s Manual for future reference. Disconnected this equipment from any AC outlet before cleaning. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.
  • Page 10 Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty CO-W124C/P1001 Series Panel PC DIO Terminal Block Connector (Female) Power Terminal Block Connector (Female) HDD Screw Pack Mini PCIe Screw Pack Note: Notify your sales representative if any of the above items are missing or damaged.
  • Page 11 Chapter 1 Product Introductions Series | User Manual CO-W124C/P1001...
  • Page 12 1.1 Overview Cincoze power efficient open frame modular panel PCs (CO-100/P1001 Series) support Intel® Atom® and Pentium® processors, and multiple displays. Native I/O ports include LAN, USB, COM, and DIO, offering expansion functions to meet different application needs. The integrated structure, exclusive adjustable mounting bracket, and support for various mounting methods enable a perfect fit in cabinets of different materials and thicknesses.
  • Page 13 1x DDR3L SO-DIMM max. up to 8GB ⚫ Designed with Adjustable Mounting Bracket ⚫ Support Flat / Standard / VESA / Rack Mount ⚫ Front Panel IP65 Compliant ⚫ Wide Operating Temperature ⚫ Cincoze Patent CDS Technology Support Series | User Manual CO-W124C/P1001...
  • Page 14 1.4 Hardware Specification 1.4.1 CO-W124C/P1001 Series Model Name CO-W124C Display • 24” (16:9) LCD Size • 1920 x 1080 Resolution • 300 Brightness (cd/m2) • 5000:1 Contrast Ratio • 16.7M LCD Color • 0.27675(H) x 0.27675(V) Pixel Pitch (mm) • 178 (H) / 178 (V) Viewing Angle •...
  • Page 15 • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV •...
  • Page 16 • Operating, 1 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) Vibration * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. Series | User Manual CO-W124C/P1001...
  • Page 17 Dimension CO-W124C/P1001 Unit: mm CO-W124C/P1001E Unit: mm Series | User Manual CO-W124C/P1001...
  • Page 18 1.5 System I/O 1.5.1 Front Antenna Removable HDD Bay Used to connect an antenna for optional Used to insert a 2.5” HDD or SSD wireless module Power On/Off CFast / SIM card Used to power-on or power-off the system Used to insert a CFast card and SIM card 1.5.2 Rear DC IN USB 2.0...
  • Page 19 1.5.3 Left USB 3.0 Digital I/O Used to connect USB 3.0/2.0 device The Digital I/O terminal block supports 4 digital input USB 2.0 and 4 digital output AT/ATX Switch Used to connect USB 2.0 device Used to select AT or ATX power mode 1.5.4 Right COM2 OSD Function:...
  • Page 20 Chapter 2 Jumpers, Switches & Connectors Series | User Manual CO-W124C/P1001...
  • Page 21 2.1 Jumpers Settings When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.
  • Page 22 2.2.2 Bottom View Series | User Manual CO-W124C/P1001...
  • Page 23 2.3 Definition of Jumpers/Switches/Connectors List of Jumpers/Switches/Connectors Location Definition AT_ATX1 AT / ATX Power Mode Switch BL_PWR1 Backlight Power on / off switching BL_UP1 Backlight Increase BL_DN1 Backlight Decrease CFAST1 CFast Connector CLR_CMOS1 Clear BIOS Switch COM1_1, COM2_1 RS232 / RS422 / RS485 Connector COM12_SEL1 COM1 / COM2 with Power Select DC_IN1...
  • Page 24 2.4 Definition of Jumpers COM12_SEL1: COM1 / COM2 with Power Select Connector Type: 2X5 10-pin Header, 2.0mm pitch COM1 COM2 Definition Definition 1-3 On 2-4 On 3-5 On +12V 4-6 On +12V 7-9 On 8-10 On Reserved Reserved (Default) (Default) 2.5 Definition of Switches AT_ATX1: AT / ATX Power Mode Switch Definition...
  • Page 25 RESET1: Reset Switch Switch Definition Push Reset System 2.6 Definition of Connectors CFAST1: CFast Connector Definition Definition Definition PC10 SATA_TX2+ PC11 SATA_TX2- PC12 PC13 +3.3V SATA_RX2- PC14 +3.3V SATA_RX2+ PC15 PC16 PC17 COM1~COM2: RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub RS422 / 485 RS485 RS232 Definition...
  • Page 26 DC_IN1: DC Power Input Connector (+9-48V) Connector Type: Terminal Block 1X3 3-pin, 5.0mm pitch Definition +9-48VIN Chassis GND Please disconnect the power source before mounting the DC power cables or connecting the DC power connector to system. DP1: DisplayPort Connector Definition Definition DP_LANE0_P...
  • Page 27 LED1: Power / HDD Access LED Status Definition HDD LED+ HDD LED- POWER LED+ POWER LED- LED Status LED Color Yellow POWER Green LINE_OUT1: Line-out Jack (Green) Connector Type: 5-pin Phone Jack Definition OUT_R OUT_L MIC1: Microphone Jack (Pink) Connector Type: 5-pin Phone Jack Definition MIC_R MIC_L...
  • Page 28 POWER1: Power Connector Connector Type: 1X4-pin Wafer, 2.0mm pitch Definition +12V SATA1: SATA with Power Connector Definition Definition SATA_TX1+ SATA_TX1- SATA_RX1- SATA_RX1+ +3.3V +3.3V +12V +3.3V +12V +12V SIM1：SIM Card Socket Definition UIM_PWR UIM_RESET UIM_CLK UIM_VPP UIM_DATA Series | User Manual CO-W124C/P1001...
  • Page 29 SPK_L1: Left Internal Speaker Connector Definition OUT_L SPK_R1: Right Internal Speaker Connector Definition OUT_R USB1_2_1：USB2.0 Connector, Type A Definition Definition USB_DATA0- USB_DATA_1- USB_DATA0+ USB_DATA_1+ USB2_1: USB2.0 Connector, Type A Definition USB2_DATA1- USB2_DATA1+ USB3_1: USB 3.0 Connector, Type A Definition Definition USB3_RX0+ USB2_D0- USB2_D0+...
  • Page 30 MINIPCIE1: Mini PCI-Express Socket Pin Definition Pin Definition Pin Definition WAKE# +3.3V +3.3V USB2_3P +3.3V MINIPCIE RST# MINIPCIE_RXN +3.3V +1.5V +3.3V CLKREQ# MINIPCIE_RXP UIM_PWR UIM_DATA +1.5V MINIPCIE_CLKN UIM_CLK SMB_CLK +1.5V MINIPCIE_CLKP MINIPCIE_TXN UIM_RESET SMB_DATA MINIPCIE_TXP UIM_VPP +3.3V USB2_3N Series | User Manual CO-W124C/P1001...
  • Page 31 Chapter 3 System Setup Series | User Manual CO-W124C/P1001...
  • Page 32 This chapter takes P1001 as an example to demonstrate the installation of hardware components. 3.1 Removing Top Cover Loosen the 8 screws of front and rear panel, then place them aside. Remove the cover from the chassis. Place the top cover gently. Series | User Manual CO-W124C/P1001...
  • Page 33 3.2 Installing Half Size Mini PCIe Card Locate the Mini PCIe slot. Use provided two screws on bracket to fasten the module and bracket together. Tilt the Mini PCIe module at 45-degree angle and insert it to the slot until the gold-pated connector of module contacted firmly with the slot.
  • Page 34 Press down the module and use the two screws to fix the module. 3.3 Installing Full Size Mini PCIe Card 1. Locate the Mini PCIe slot. 2. Tilt the Mini PCIe module at 45-degree angle and insert it to the slot until the gold-pated connector of module contacted firmly with the slot.
  • Page 35 3. Press down the module and use the two screws to fix the module. 3.4 Installing Antenna(s) Remove the antenna hole covers at front panel. Have antenna jack penetrate through the hole. Series | User Manual CO-W124C/P1001...
  • Page 36 Put on washer and fasten the nut with antenna jack. Assemble the antenna and antenna jack together. Attach the RF connector at another end of cable onto the module. Series | User Manual CO-W124C/P1001...
  • Page 37 3.5 Installing SO-DIMM Memory 1. Locate SO-DIMM socket. 2. Tilt the SODIMM module at a 45-degree angle and insert it to SODIMM socket until the gold-pated connector of module contacted firmly with the socket. 3. Press the module down until its fixed firmly by the two locking latches on each side. Series | User Manual CO-W124C/P1001...
  • Page 38 3.6 Installing Top Cover 1. Put on the cover. 2. Fasten the 8 screws to fix the cover. Series | User Manual CO-W124C/P1001...
  • Page 39 3.7 Installing SATA Hard Drive 1. Locate the removable HDD bay and loosen the 3 screws. 2. Pull out the HDD bracket. 3. Make the PCB side of the HDD face up, place the HDD bracket on it. Ensure the direction of bracket is correct and use 4 provided screws to assemble HDD and HDD bracket together.
  • Page 40 4. Align the HDD bracket with the entrance of HDD bay. And insert the HDD bracket until the connector of HDD contact the SATA connector firmly. 3.8 Installing SIM Card 1. SIM card slot is at the front panel of the system. 2.
  • Page 41 3.9 Installing CFast Card 1. Locate the CFast card slot. 2. Remove the mounting cover by unscrewing the two screws. 3. Insert the CFast card until it clicks. Series | User Manual CO-W124C/P1001...
  • Page 42 3.10 Disassemble the CO Display Module The complete shipping product is the CO display module already installed on the P1001. This chapter will introduce how to dissemble CO display module and P1001. 1. Remove the 6 screws on the display module. 2.
  • Page 43 3.11 Installing Standard Mount The CO-100 series includes various mounting bracket designs, and this section demonstrates the CO-W124C installation process. Before starting the following steps, ensure the screws are secured in the default positions, as shown below. These positions are correct for Standard Mount, so no additional adjustments are necessary. CO-W124C 在出貨時，定位螺絲已固定在預設位置，如下圖紅圈所示。此位置適用於...
  • Page 44 1. Put the CO-100/P1001 module onto the rack’s back side. There are two methods for fastening the CO-100/P1001 module onto the cabinet to complete the standard mount. One is to fix the CO-100/P1001 module from the front side of the cabinet, which is illustrated in chapter 3.11.1.
  • Page 45 3.11.2 Fixing from rear side 1. If the cabinet panel is with stud bolts as the following figure, user can prepare 16 pcs of nuts for fixing the module through the oblong holes (oblong hole size: 9mmx4mm, without screw thread). If the cabinet panel is with bosses as the following figures, user can prepare 16 pcs of M4 screws for fixing the module through the oblong holes (oblong hole size: 9mmx 4mm, without screw thread).
  • Page 46 3.12 Installing Flat Mount The CO-100 series includes various mounting bracket designs, and this section demonstrates the CO-W124C installation process. 1. Loosen the screws marked with blue circles on all four sides of the module (Top, Bottom, Left, Right). Then, remove the positioning screws marked with red circles, as shown in the four images below.
  • Page 47 2. Measure the cabinet or rack thickness. The thickness is measured 3mm in this example. 3. Locate the top and bottom-side mounting brackets. 4. According to the thickness = 3mm for the example, push down the top and bottom-side mounting brackets to the place at screw hole = 3mm;...
  • Page 48 CO-W124C Bottom Side View 5. Fasten the three screws on the top and bottom-side mounting brackets. CO-W124C Top Side View CO-W124C Bottom Side View 6. Locate the left and right-side mounting brackets. Series | User Manual CO-W124C/P1001...
  • Page 49 7. According to the thickness = 3mm for the example, push down the left and right-side mounting brackets to the place at screw hole = 3mm; and then fasten back the one positioning screw on the left and right-side mounting brackets. CO-W124C Left Side View CO-W124C Right Side View 8.
  • Page 50 9. Put the CO-100/P1001 module onto the rack back side. There are two methods for fastening the CO-100/P1001 module onto the cabinet to complete the flat mount. One is to fix the CO-100/P1001 module from the front side of the cabinet, which is illustrated in chapter 3.12.1.
  • Page 51 3.12.2 Fixing from rear side 1. If the cabinet panel is with stud bolts as the following figure, user can prepare 16 pcs of nuts for fixing the module through the oblong holes (oblong hole size: 9mmx4mm, without screw thread). If the cabinet panel is with bosses as the following figures, user can prepare 16 pcs of M4 screws for fixing the module through the oblong holes (oblong hole size: 9mmx 4mm, without screw thread).
  • Page 52 3.13 Disassemble the mounting brackets 1. Remove the 16 screws. 2. Remove the 3 screws on the left and right side of mounting brackets. 3. Remove the 3 screws on the top and bottom side of mounting brackets. 4. Remove the four mounting brackets. Series | User Manual CO-W124C/P1001...
  • Page 53 Chapter 4 BIOS Setup Series | User Manual CO-W124C/P1001...
  • Page 54 4.1 BIOS Introduction The BIOS (Basic Input/ Output System) is a program located on a Flash Memory on the motherboard. When you start the computer, the BIOS program will gain control. The BIOS first operates an auto-diagnostic test called POST (power on self-test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization.
  • Page 55 4.2 Main Setup Press <Del> to enter BIOS CMOS Setup Utility, the Main Menu (as shown below) will appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. 4.2.1 System Date Set the date.
  • Page 56 4.3.1 ACPI Settings Enable or disable ACPI Auto Configuration. Series | User Manual CO-W124C/P1001...
  • Page 57 4.3.2 Super IO Configuration You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. ■ Serial Port 1 Configuration ❑ Serial Port This item will allow users to enable or disable serial port. ❑...
  • Page 58 ■ Watch Dog Function You can setup the system watch-dog timer, a hardware timer that generates a reset when the software that it monitors does not respond as expected each time the watch dog polls it. ❑ Watch Dog Mode Change the Watch dog mode.
  • Page 59 4.3.4 Serial Port Console Redirection ■ Console Redirection This item allows users to enable or disable console redirection. 4.3.5 CPU Configuration ■ Socket 0 CPU Information This section provides information on your CPU, frequency, and cache memory. ■ Active Processor Cores Change the active processor cores.
  • Page 60 This option is only useful if you are using an operating system that does not recognize all of the features of your processor. Allows user to determine whether to limit CPUID maximum value. Set this item to Disabled: For Windows XP operating system. Enabled: For legacy operating system such as Windows NT4.0.
  • Page 61 ■ Passive Trip Point Allows user to set the CPU temperature threshold. If the CPU temperature reaches this value, the CPU frequency will be automatically reduced. This item is configurable only when DTS is enabled. ■ DTS Enables or disables the CPU overheating protection function. (Default: Disabled) 4.3.7 SATA Configuration ■...
  • Page 62 4.3.8 OS Selection This allows you to configure Windows OS version to install. The purpose of this is to enable USB 3.0 controller interface. If you set Windows 7 and install the OS, you will need to install USB 3.0 driver at the OS level to fully support USB 3.0 interfaces.
  • Page 63 ■ CSM Support Enables or disables UEFI CSM (Compatibility Support Module) to support a legacy PC boot process. ■ Boot option filter Allows user to select which type of operating system to boot. UEFI and Legacy: Allows booting from operating systems that support legacy option ROM or UEFI option ROM.
  • Page 64 Allows USB keyboard/ mouse to be used in MS-DOS. ■ XHCI Hand-off Determines whether to enable XHCI (USB3.0) Hand-off feature for an operating system without XHCI (USB3.0) Hand-off support. ■ EHCI Hand-off Determines whether to enable EHCI Hand-off feature for an operating system without EHCI Hand-off support.
  • Page 65 4.4 Chipset Setup This section allows you to configure chipset related settings according to user’s preference. 4.4.1 North Bridge This section provides information on the installed memory size and memory/onboard graphics-related configuration options. Series | User Manual CO-W124C/P1001...
  • Page 66 ■ Intel IGD Configuration This section provides onboard graphics-related configuration options. ❑ GOP Driver This item will allow users to enable or disable GOP Driver. ❑ Integrated Graphics Device This item will allow users to enable or disable Integrated Graphics Device. ❑...
  • Page 67 4.4.2 South Bridge ■ Azalia HD Audio Control detection of the Azalia device. ❑ Audio Controller Enabled: Azalia will be unconditionally enabled. Disabled: Azalia will be unconditionally disabled. ■ USB Configuration ❑ XHCI Mode This setting disables/enables the USB XHCI controller. The eXtensible Host Controller Interface (XHCI) is a computer interface specification that defines a register-level description of a Host Controller for Universal Serial Bus (USB), which is capable of interfacing to USB 1.0, 2.0, and 3.0 compatible devices.
  • Page 68 ❑ USB Port 3 This item will allow users to enable or disable USB Port 3. ■ Wake On LAN Enable This item enables or disables Wake On LAN (WOL) function. ■ PCI Express Configuration ❑ PCI Express Port 0 This item will allow users to enable or disable PCI Express Port 0.
  • Page 69 This setting specifies whether your system will reboot after a power failure or interrupt occurs. Available settings are: Power Off: Leave the computer in the power off state. Power On: Leave the computer in the power on state. Last State: Restore the system to the previous status before power failure or interrupt occurred. 4.5 Security Setup This section allows users to configure BIOS security settings.
  • Page 70 4.6 Boot Setup This section allows you to configure Boot settings. 4.6.1 Setup Prompt Timeout Use this item to set number of seconds to wait for setup activation key. 4.6.2 Bootup NumLock State Allows users to select the power-on state for keyboard NumLock. 4.6.3 Full Screen Logo Show This item allows user to enable or disable full screen logo show.
  • Page 71 4.7 Save & Exit 4.7.1 Save Changes and Reset This item allows user to reset system setup after saving changes. 4.7.2 Discard Changes and Reset This item allows users to reset system setup without saving any changes. 4.7.3 Restore Defaults This item allows user to restore/ load default values for all the options.
  • Page 72 Chapter 5 Product Application Series | User Manual CO-W124C/P1001...
  • Page 73 This section describes DIO application of the product. The content and application development are better understood and implemented by well experienced professionals or developers. 5.1.1 Digital I/O Programming Guide 5.1.1.1 Pins for Digital I/O of Cincoze P1001 series product Item Standard...
  • Page 74 -o 4e 87 (enable configuration) -o 4e aa (disable configuration) 5.1.1.3 Relative Registers To program the F81866A configuration registers, see the following configuration procedures. Series | User Manual CO-W124C/P1001...
  • Page 75 5.1.1.4 Sample Code in C Language 5.1.1.4.1 Control of GP74 to GP77 (DI1 ~ DI4) #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(dataPort, 0x06) // Select logic device 06h...
  • Page 76 <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) 5.1.1.4.2 Control of GP80 to GP83 (DO1 ~ DO4) #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(DataPort, 0x06) // Select logic device 06h...
  • Page 77 5.1.1.5 Change base address - DIO base address (Cincoze default 0xA00) <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(dataPort, 0x06) // Select logic device 06h...
  • Page 78 5.1.1.6 DATA Bit Table (DIO) 7 6 5 4 3 2 1 0 0 0 0 1 - value = DI1 = DO1 7 6 5 4 3 2 1 0 = DI2 = DO2 0 0 1 0 - value 7 6 5 4 3 2 1 0 0 1 0 0 -...
  • Page 79 5.2 Digital I/O (DIO) Hardware Specification ⚫ XCOM+: Isolated power in V+ ⚫ XCOM-: Isolated power in V- ⚫ Isolated power in DC voltage: 9-30V ⚫ 4x Digital Input (Source Type) ⚫ Input Signal Voltage Level Signal Logic 0: XCOM+ = 9V, Signal Low <...
  • Page 80 Series | User Manual CO-W124C/P1001...
  • Page 81 Chapter 6 Optional Accessories Series | User Manual CO-W124C/P1001...
  • Page 82 6.1 Installing VESA Mount Before the installation of VESA mount, user need to follow the chapter 3.13 to disassemble the mounting brackets on the CO display module first. P1000 series supports VESA mounting that customer can mount system with panel complying with VESA 75mm and 100 mm standard for various usage.
  • Page 83 2. Fasten the VESA mount screws to complete the VESA mounting. Series | User Manual CO-W124C/P1001...
  • Page 84 6.2 Installing Rack Mount Before the installation of rack mount, user need to follow the chapter 3.13 to disassemble the mounting brackets on the CO display module first. 1. Locate the screw holes on the PC or monitor module. 2. Put on the rack mount base and fasten the screws. Series | User Manual CO-W124C/P1001...
  • Page 85 Assemble two rack mount brackets by fastening 4 screws (M5x6) at each side. Rack mount bracket holes for 19”~24” Panel PC series For P2002E For P2002 / P1001E For P1001 / P1101 / P1201/ P1301/ P2102/P2102E/P2202/P2202E Left Right Bottom 4. Assemble two rack mount brackets by fastening 4 screws (M5x12), flat washers and hex nuts at each side.
