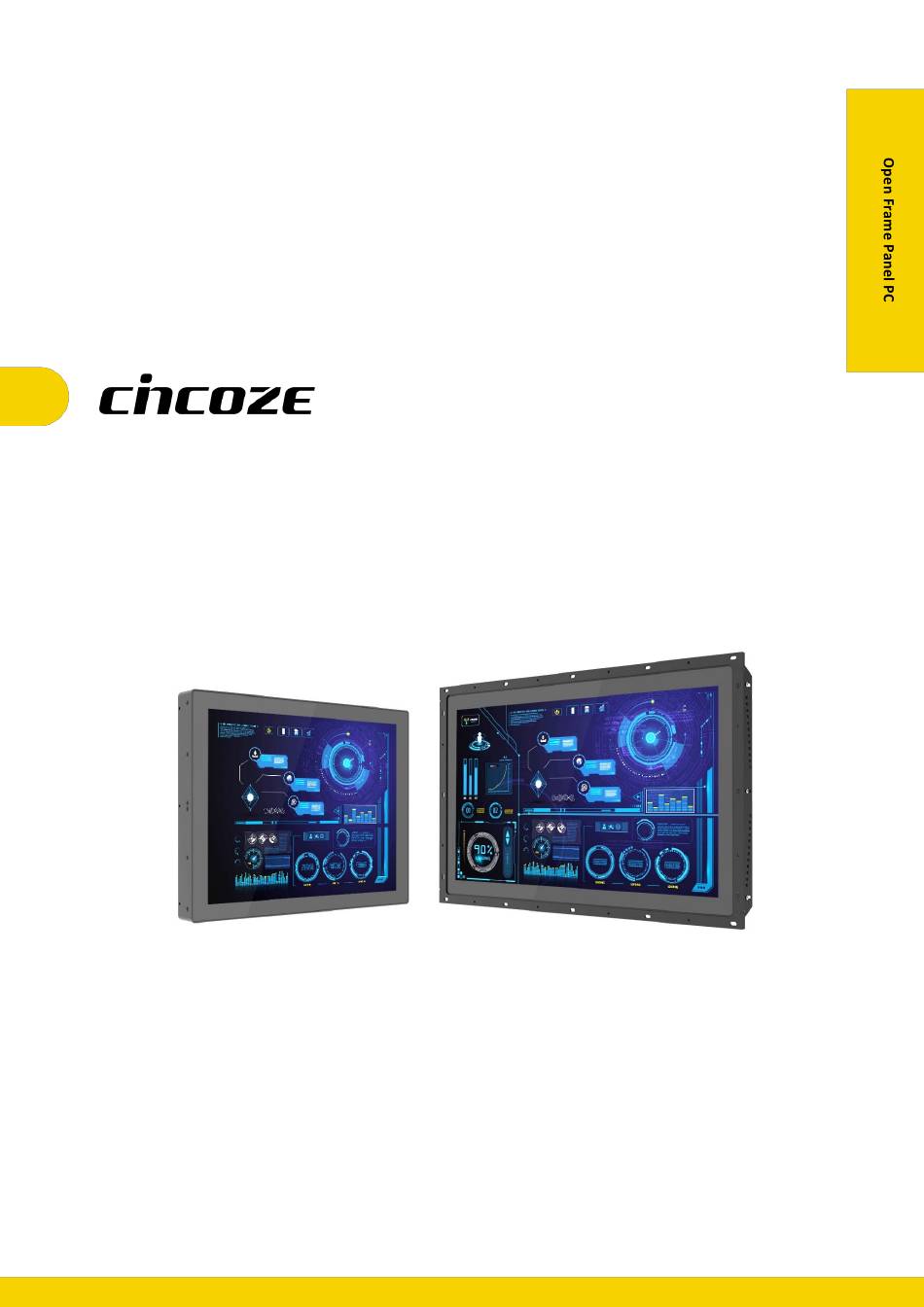

- Page 1 CO-W124C/P2002 Series User Manual Open Frame Panel PC 6th Gen. Intel® Core™ Processor U Series Fanless Touch Panel PC with CFM & CDS Technology Version: V1.00...
-
Page 2: Table Of Contents
Chapter 1 Product Introductions ......................12 1.1 Overview ..........................13 1.2 Highlights..........................13 1.3 Key Features ........................... 14 1.4 Hardware Specification ......................15 1.4.1 CO-W124C/P2002 Series ......................15 1.5 System I/O ..........................20 1.5.1 Front ............................20 1.5.2 Rear ............................20 1.5.3 Left ............................. 21 1.5.4 Right ............................ - Page 3 4.3.12 USB Configuration........................78 4.4 Chipset Setup ......................... 79 4.4.1 System Agent (SA) Configuration....................79 4.4.2 PCH-IO Configuration ......................... 80 4.5 Security Setup ........................82 4.5.1 Administrator Password ......................82 4.5.2 User Password ........................... 82 CO-W124C/P2002 Series | User Manual...
- Page 4 Chapter 6 Optional Modules and Accessories ..................97 6.1 Location of the Connectors and Switches ................98 6.2 Installing CFM-IGN Module ....................99 6.3 Installing CFM-PoE Module ....................100 6.4 Installing VESA Mount ......................101 6.5 Installing Rack Mount ......................103 CO-W124C/P2002 Series | User Manual...
-
Page 5: Preface
2024/11/11 Copyright Notice © 2024 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and remain subject to change without prior notice. -
Page 6: Declaration Of Conformity
(such as a fuse, battery, etc.), are not warranted. Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain an RMA number from us. Our staff is available at any time to provide you with the most friendly and immediate service. - Page 7 Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies.
-
Page 8: Technical Support And Assistance
Technical Support and Assistance 1. Visit the Cincoze website at www.cincoze.com where you can find the latest information about the product. 2. Contact your distributor or our technical support team or sales representative for technical support if you need additional assistance. Please have following information ready before you call: ⚫... -
Page 9: Safety Precautions
16. Ensure to connect the power cord of power adapter to a socket-outlet with earthing connection. 17. Dispose of used battery promptly. Keep away from children. Do not disassemble and do not dispose of in fire. CO-W124C/P2002 Series | User Manual... -
Page 10: Package Contents
Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Fanless Computer 24" TFT-LCD Full HD 16:9 Open Frame Display Module with CO-W124C/P2002E-i3 Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface CO-W124C/P2002 Series | User Manual... - Page 11 Fanless Computer, CFM Interface, CDS Interface, 1x PCIex4 Expansion 24" TFT-LCD Full HD 16:9 Open Frame Display Module with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U CO-W124C/P2002E-i3-PI Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCI Expansion CO-W124C/P2002 Series | User Manual...
-
Page 12: Chapter 1 Product Introductions
Chapter 1 Product Introductions CO-W124C/P2002 Series | User Manual... -
Page 13: Overview
1.1 Overview Cincoze’s high-performance open-frame modular panel PCs (CO-100/P2002 Series) use Intel® Core U series processors that provide high-performance data processing and graphics computing capabilities with only 15W low power consumption. The CO-100/P2002 series supports CFM technology that extends system functions according to requirements, with options such as Power Ignition Sensing (IGN) and Power over Ethernet (PoE). -
Page 14: Key Features
2x DDR4 SO-DIMM Socket, Support Up to 32 GB ⚫ Designed with Adjustable Mounting Bracket ⚫ Support Flat / Standard / VESA / Rack Mount ⚫ Front Panel IP65 Compliant ⚫ Wide Operating Temperature ⚫ Cincoze Patent CDS Technology Support CO-W124C/P2002 Series | User Manual... -
Page 15: Hardware Specification
• EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A CO-W124C/P2002 Series | User Manual... - Page 16 • 16x Isolated Digital I/O (8in/8out), 10-Pin Terminal Block • 1x Line-out & 1x Mic-in, Phone Jack 3.5mm Line-out & Mic-in • 1x AT/ATX Mode Switch Power Mode Switch • 1x Power On/Off Switch Power Switch CO-W124C/P2002 Series | User Manual...
- Page 17 ( W x D x H ) • 2.92 kg • 3.18 kg Weight Information • Extruded Aluminum with Heavy Duty Metal Mechanical Construction • Support Wall / VESA / CDS Mounting Mounting • Fanless Design Physical Design CO-W124C/P2002 Series | User Manual...
- Page 18 • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CO-W124C/P2002 Series | User Manual...
- Page 19 Dimension CO-W124C/P2002 Unit: mm CO-W124C/P2002E Unit: mm CO-W124C/P2002 Series | User Manual...
-
Page 20: System I/O
Used to connect to RS-232/422/485 serial devices Used to connect to a microphone 1.5.2 Rear CFast and SIM Card Power On/Off CFast card and SIM card slot Power-on or power-off the system HDD/SSD 2.5” SATA HDD/SSD Bay, Support RAID 0/1 CO-W124C/P2002 Series | User Manual... -
Page 21: Left
Press to increase brightness of the screen - Decrease Brightness Press to decrease brightness of the screen 1.5.4 Right Antenna COM1, COM2 Used to connect an antenna for optional Mini-PCIe Used to connect to RS-232/422/485 serial devices WiFi module CO-W124C/P2002 Series | User Manual... -
Page 22: Chapter 2 Switches & Connectors
Chapter 2 Switches & Connectors CO-W124C/P2002 Series | User Manual... -
Page 23: Location Of Switches And Connectors
2.1 Location of Switches and Connectors 2.1.1 Top View CO-W124C/P2002 Series | User Manual... -
Page 24: Bottom View
2.1.2 Bottom View CO-W124C/P2002 Series | User Manual... -
Page 25: Definition Of Switches/Connectors
SIM1 SIM Card Socket SPK_L1、SPK_R1 Internal Speaker Connector USB2_1 USB 2.0 Port USB3_1、USB3_2 USB 3.0 Port VGA1 VGA Connector PWR_SW1 Power Switch Connector FAN1 FAN Increase DIO1 DIO Connector DIO2 DIO Connector PCIE1 PCIE Connector CO-W124C/P2002 Series | User Manual... -
Page 26: Definition Of Switches
Clear CMOS Function Setting : Pin Define SW2 Switch Switch mode Function CMOS Clear CMOS Normal (Default) COM1/2 Voltage Function Setting : Pin Define SW2 Switch Switch mode Function ON/ON (Default) COM2 ON/OFF OFF/OFF ON/ON (Default) COM1 ON/OFF OFF/OFF CO-W124C/P2002 Series | User Manual... - Page 27 OFF/OFF ON/ON (Default) COM4 ON/OFF OFF/OFF ON/ON (Default) COM5 ON/OFF OFF/OFF ON/ON (Default) COM6 ON/OFF OFF/OFF AT_ATX1: AT / ATX Power Mode Switch Definition 1-2 (Left) AT Power Mode 2-3 (Right) ATX Power Mode (Default) CO-W124C/P2002 Series | User Manual...
- Page 28 BL_PWR1: Backlight Power on / off Switch Definition Push Backlight Power on / off switching BL_UP1: Backlight Increase Switch Definition Push Backlight Increase BL_DN1: Backlight Decrease Switch Definition Push Backlight Decrease RESET1: Reset Switch Switch Definition Push Reset System CO-W124C/P2002 Series | User Manual...
-
Page 29: Definition Of Connectors
DC power connector to system. LAN1/LAN2: RJ45 with LEDs Port Act LED Definition Link LED Status Definition Status Blinking 1Gbps Network Data Activity Steady Green Yellow Link 100Mbps Network No Activity Steady Orange Link 10Mbps Network Link CO-W124C/P2002 Series | User Manual... - Page 30 FAN1: External PWM Fan Connector Connector Type: Terminal Block 1X3 3-pin, 3.5mm pitch Definition +12V SENSE Control PWE_SW1: On / Off Switch Definition PWR_SW Do not apply power to this connector! This port is used to connect a SWITCH! CO-W124C/P2002 Series | User Manual...
- Page 31 CN1: Mini PCI-Express Socket (SIM Card to Link) Pin Definition Pin Definition Pin Definition WAKE# RESERVED +3.3V +3.3V USB_D+ RESERVED PERST# PERN0 +3.3V +1.5V +3.3V CLKREQ# PERN0 RESERVED SIM_DATA +1.5V REFCLK+ SIM_CLK SMB_CLK +1.5V REFCLK+ PETN0 SIM_RESET SMB_DATA PETP0 SIM_VPP +3.3V USB_D- CO-W124C/P2002 Series | User Manual...
- Page 32 CN2: Mini PCI-Express Socket / mSATA Socket Pin Definition Pin Definition Pin Definition WAKE# +3.3V +3.3V USB_D+ +3.3V PERST# PERN0/SATAPR0 +3.3V +1.5V +3.3VAUX CLKREQ# PERN0/SATARN0 +1.5V REFCLK+ SMB_CLK +1.5V REFCLK+ PETN0 SMB_DATA PETP0 +3.3V USB_D- CO-W124C/P2002 Series | User Manual...
- Page 33 CN3: mSATA Socket Pin Definition Pin Definition Pin Definition WAKE# +3.3V +3.3V USB_D+ +3.3V PERST# SATARXP +3.3V +1.5V +3.3V SATARXN +1.5V SMB_CLK +1.5V SATATXN SMB_DATA SATATXP +3.3V USB_D- CO-W124C/P2002 Series | User Manual...
-
Page 34: Chapter 3 System Setup
Chapter 3 System Setup CO-W124C/P2002 Series | User Manual... -
Page 35: Removing The Top Cover
Loosen the 6 screws at front and rear panel, then place them aside. Raise the left edge of top cover (1), and raise the other side (2) subsequently to remove it from the chassis. Place the top cover aside gently. CO-W124C/P2002 Series | User Manual... -
Page 36: Installing Half Size Mini Pcie Card
Use provided two screws on bracket to fasten the module and bracket together. Tilt the Mini PCIe card at a 45-degree angle and insert it into the socket until the golden finger connector of the card seated firmly. CO-W124C/P2002 Series | User Manual... - Page 37 ° CO-W124C/P2002 Series | User Manual...
-
Page 38: Installing Full Size Mini Pcie Card
3.3 Installing Full Size Mini PCIe Card 1. Locate the Mini PCIe slot. 2. Tilt the Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° CO-W124C/P2002 Series | User Manual... -
Page 39: Installing Msata Card
3.4 Installing mSATA Card Locate the mSATA slot on the system board. Tilt the mSATA card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° CO-W124C/P2002 Series | User Manual... -
Page 40: Installing Antenna(S)
Fasten the card with two screws. 3.5 Installing Antenna(s) Remove the antenna rubber covers on left and right panel. Penetrate the antenna jack through the hole. CO-W124C/P2002 Series | User Manual... - Page 41 Put on the washer and fasten the nut with antenna jack. Assemble the antenna and antenna jack together. Attach the RF connector at another end of the cable onto the card. CO-W124C/P2002 Series | User Manual...
-
Page 42: Installing So-Dimm Memory
2. Tilt the SODIMM module at a 45-degree angle and insert it to SODIMM socket until the gold-pated connector of module contacted firmly with the socket. 3. Press the module down until its fixed firmly by the two locking latches on each side. CO-W124C/P2002 Series | User Manual... -
Page 43: Installing Pci(E) Card (For P2002E Only)
3.7 Installing PCI(e) Card (for P2002E only) 1. Locate the retention module of PCI(e) expansion card. 2. Loosen one screw halfway as indicated to have the clamp arm slidable. clamp arm 3. Loosen one screw to remove the PCI bracket. CO-W124C/P2002 Series | User Manual... - Page 44 5. Fasten one screw to secure the PCI(e) expansion card. 6. Slide the clamp arm of retention module until it contacts the edge of PCI(e) expansion card. CO-W124C/P2002 Series | User Manual...
-
Page 45: Installing Thermal Pad Of Thermal Block
Place thermal pad on the top of CPU thermal block in order to provide a seamless contact with the body of chassis to create an efficient heat dissipation. Before assembling the system’s chassis cover, please make sure the protective film on the Thermal Pad has been removed! CO-W124C/P2002 Series | User Manual... -
Page 46: Installing Top Cover
3.9 Installing Top Cover 1. Put on the left edge of top cover onto system, and the other side subsequently. 2. Fasten the six screws at front and rear panel to secure the top cover. CO-W124C/P2002 Series | User Manual... -
Page 47: Installing Sim Card
3.10 Installing SIM Card 1. Locate the SIM card slot at front panel. 2. Loosen two screws to remove the cover plate. 3. Insert the SIM card. CO-W124C/P2002 Series | User Manual... -
Page 48: Installing Cfast Card
1. Locate the CFast card slot at front panel. 2. Loosen the two screws to remove the cover plate. 3. Insert a CFast card until it clicks. 4. Fasten two screws to secure the cover plate. CO-W124C/P2002 Series | User Manual... -
Page 49: Disassemble The Co Display Module
The complete shipping product is the CO display module already installed on the P2002 series. This chapter will introduce how to dissemble CO display module and P2002 series. 1. Remove the 6 screws on the display module. 2. Disconnect the modules. CO-W124C/P2002 Series | User Manual... -
Page 50: Installing Sata Hard Drive At Front Panel
1. Turn over the system to bottom side, and remove one screw. 2. Loosen the two screws to remove the HDD bay cover bracket. 3. Pull the rotating arm of HDD bracket outward as indicated. CO-W124C/P2002 Series | User Manual... - Page 51 5. Place the HDD bracket on screw-hole side of HDD. Use four screws provided to assemble HDD on the bracket. 6. Align the HDD bracket with the entrance of HDD bay. And insert the HDD bracket and push it until the edge connector of HDD fully inserted into SATA slot. CO-W124C/P2002 Series | User Manual...
-
Page 52: Installing Sata Hard Drive On Bottom Side
7. Put back HDD bay cover at front panel, and fasten it with two screws. 8. Fasten one screw to secure the HDD bracket on the system chassis. 3.14 Installing SATA Hard Drive on Bottom Side Turn over the system to bottom side. Locate the cover of HDD compartment. CO-W124C/P2002 Series | User Manual... - Page 53 Loosen the two screws, then pull the cover to remove it. Loosen three screws and take the HDD bracket out of HDD compartment. Place the HDD bracket on screw-hole side of HDD. Use four screws provided to assemble HDD on the bracket. CO-W124C/P2002 Series | User Manual...
- Page 54 Seat the HDD bracket into HDD compartment, and line up the connector of HDD with SATA slot, then push it until HDD is fully connected into slot. Secure the HDD bracket with three screws. Put back the cover and fasten the two screws. CO-W124C/P2002 Series | User Manual...
-
Page 55: Installing Standard Mount
These positions are correct for Standard Mount, so no additional adjustments are necessary. CO-W124C 在出貨時，定位螺絲已固定在預設位置，如下圖紅圈所示。此位置適用於 Standard Mount 標準安裝，因此在作 Standard Mount 安裝時，不需要再額外調整定位螺絲的位置。 CO-W124C Top Side View CO-W124C Bottom Side View CO-W124C Left Side View CO-W124C Right Side View CO-W124C/P2002 Series | User Manual... -
Page 56: Fixing From Front Side
3.15.2. 3.15.1 Fixing from front side 2. Fasten the screws from the cabinet’s front side. Please prepare 12 pcs of M4 screws for fixing the module through the circle holes (with screw thread). CO-W124C/P2002 Series | User Manual... -
Page 57: Fixing From Rear Side
If the cabinet panel is with bosses as the following figures, user can prepare 16 pcs of M4 screws for fixing the module through the oblong holes (oblong hole size: 9mmx 4mm, without screw thread). CO-W124C/P2002 Series | User Manual... -
Page 58: Installing Flat Mount
Step 1. Loosen the screws marked with blue circles on all four sides of the module (Top, Bottom, Left, Right). Then, remove the positioning screws marked with red circles, as shown in the four images below. CO-W124C Top Side View CO-W124C Bottom Side View CO-W124C Left Side View CO-W124C Right Side View CO-W124C/P2002 Series | User Manual... - Page 59 Step 4. According to the thickness = 3mm for the example, push down the top and bottom-side mounting brackets to the place at screw hole = 3mm; and then fasten back the two positioning screws on the top and bottom-side mounting brackets. CO-W124C Top Side View CO-W124C/P2002 Series | User Manual...
- Page 60 CO-W124C Bottom Side View Step 5. Fasten the three screws on the top and bottom-side mounting brackets. CO-W124C Top Side View CO-W124C Bottom Side View Step 6. Locate the left and right-side mounting brackets. CO-W124C/P2002 Series | User Manual...
- Page 61 Step 8. Lift up the left and right-side mounting brackets with aligning the top and bottom-side mounting brackets, then fasten the three screws by the indicated sequence 1, 2, 3 on each side. CO-W124C Left Side View CO-W124C Right Side View CO-W124C/P2002 Series | User Manual...
-
Page 62: Fixing From Front Side
3.16.2. 3.16.1 Fixing from front side 10. Fasten the screws from the cabinet’s front side. Please prepare 12 pcs of M4 screws for fixing the module through the circle holes (with screw thread). CO-W124C/P2002 Series | User Manual... -
Page 63: Fixing From Rear Side
If the cabinet panel is with bosses as the following figures, user can prepare 16 pcs of M4 screws for fixing the module through the oblong holes (oblong hole size: 9mmx 4mm, without screw thread). CO-W124C/P2002 Series | User Manual... -
Page 64: Disassembling The Mounting Brackets
Step 2. Remove the 3 screws on the left and right side of mounting brackets. Step 3. Remove the 3 screws on the top and bottom side of mounting brackets. Step 4. Remove the four mounting brackets. CO-W124C/P2002 Series | User Manual... -
Page 65: Chapter 4 Bios Setup
Chapter 4 BIOS Setup CO-W124C/P2002 Series | User Manual... -
Page 66: Bios Introduction
( ↑↓ ) to highlight the field and press <Enter> to call up the sub-menu. Then you can use the control keys to enter values and move from field to field within a sub-menu. If you want to return to the main menu, just press the <Esc >. CO-W124C/P2002 Series | User Manual... -
Page 67: Main Setup
Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. 4.2.1 System Date Set the date. Please use <Tab> to switch between date elements. 4.2.2 System Time Set the time. Please use <Tab> to switch between time elements. CO-W124C/P2002 Series | User Manual... -
Page 68: Advanced Setup
4.3 Advanced Setup 4.3.1 ACPI Settings Enable or disable ACPI Auto Configuration. ■ Enable ACPI Auto Configuration [Enabled] Enables or disables BIOS ACPI Auto Configuration. CO-W124C/P2002 Series | User Manual... -
Page 69: Amt Configuration
Allows you to enable or disable Intel® Active Management Technology BIOS execution. ■ Un-Configure ME [Disabled] Sets this item to [Disabled] to unconfigure AMT/ME without using a password or set it to [Enabled] to use a password. 4.3.3 PCH-FW Configuration CO-W124C/P2002 Series | User Manual... -
Page 70: F81866 Super Io Configuration
You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. ■ Serial Port 1~6 Configuration ❑ Serial Port [Enabled] This item will allow users to enable or disable serial port. CO-W124C/P2002 Series | User Manual... -
Page 71: Hardware Monitor
■ PWM Fan Mode Configuration ❑ PWM Fan1 Duty [60%] This item allows users to change duty cycle value of PWM Fan1. ❑ PWM Fan2 Duty [60%] This item allows users to change duty cycle value of PWM Fan2. CO-W124C/P2002 Series | User Manual... -
Page 72: S5 Rtc Wake Settings
[Dynamic Time]: Set the increase time from current time to wake system. 4.3.7 Serial Port Console Redirection ■ Console Redirection [Disabled] These items allow users to enable or disable COM0, COM1, COM2, COM3, Com4, COM5 console redirection function. CO-W124C/P2002 Series | User Manual... -
Page 73: Cpu Configuration
Enables or disables Intel® Virtualization Technology. Virtualization enhanced by Intel® Virtualization Technology will allow a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple virtual systems. CO-W124C/P2002 Series | User Manual... -
Page 74: Sata Configuration
Changes the delay time for option ROM. ❑ HDD Unlock [Enabled] Enables or disables HDD unlock. ❑ LED Locate [Enabled] Enables or disables LED Locate. ❑ Smart Response Technology [[Enabled] Enables or disables Smart Response Technology. ❑ RST Force Form [Disabled] CO-W124C/P2002 Series | User Manual... -
Page 75: Csm Configuration
Enables or disables SATA Port 1. ❑ Hot Plug [Enabled] Enables or disables Hot Plug support for port1. ■ Serial ATA Port (CFast) ❑ Port 2 [Enabled] Enables or disables SATA Port 2. 4.3.10 CSM Configuration CO-W124C/P2002 Series | User Manual... - Page 76 This item allows users to select whether to enable the UEFI or legacy option ROM for the other PCI devices. [Do not launch]: Disables option ROM. [UEFI]: Enables UEFI option ROM only. [Legacy]: Enables legacy option ROM only. CO-W124C/P2002 Series | User Manual...
-
Page 77: Asmedia Sata Controller Configuration
4.3.11 Asmedia SATA Controller Configuration ■ SATA Controller 0 Configuration Settings Displays configuration information on SATA Controller 0. CO-W124C/P2002 Series | User Manual... -
Page 78: Usb Configuration
Enables or disables support for USB mass storage devices. Determines whether to enable EHCI Hand-off feature for an operating system without EHCI Hand-off support. ■ USB Mass Storage Driver Support Enables or disables support for USB storage devices. CO-W124C/P2002 Series | User Manual... -
Page 79: Chipset Setup
This item allows users o enable or disable Intel® Virtualization Technology for Directed I/O (VT-d) function. ■ Above 4GB MMIO BIOS assignment [Enabled] This item allows user to enable or disable the Above 4GB Memory Mapped IO BIOS assignment. ■ Graphics Configuration CO-W124C/P2002 Series | User Manual... -
Page 80: Pch-Io Configuration
PCI Express Root Port (Mini PCIe) ❑ PCI Express Port 5 [Enabled] Allows you to enable or disable PCI Express Port 5. ❑ PCIe Speed [Auto] Allows you to select PCI Express interface speed. Configuration options: [Auto] [Gen1] [Gen2] [Gen3]. CO-W124C/P2002 Series | User Manual... - Page 81 Allows you to specify which power state system will enter when power is resumed after a power failure. [Last State]: Enter last power state before a power failure. [S0 State]: Enter power-on state. [S5 State]: Enter power-off state. CO-W124C/P2002 Series | User Manual...
-
Page 82: Security Setup
This section allows users to configure BIOS security settings. 4.5.1 Administrator Password Administrator Password controls access to the BIOS Setup utility. 4.5.2 User Password User Password controls access to the system at boot and to the BIOS Setup utility. CO-W124C/P2002 Series | User Manual... -
Page 83: Boot Setup
■ New Boot Option Policy [Default] Allows you to change New Boot Option Policy. Configuration options: [Default] [Place First] [Place Last]. ■ Hard Drive BBS Priorities [Default] Allows you to change the order of the legacy devices in the group. CO-W124C/P2002 Series | User Manual... -
Page 84: Save & Exit
■ Save as User Defaults This item allows you to save the changes done so far as user defaults. ■ Restore User Defaults This item allows you to restore the user defaults to all the options. CO-W124C/P2002 Series | User Manual... -
Page 85: Chapter 5 Product Application
Chapter 5 Product Application CO-W124C/P2002 Series | User Manual... -
Page 86: Digital I/O (Dio) Application
This section describes DIO application of the product. The content and application development are better understood and implemented by well experienced professionals or developers. 5.1.1 Digital I/O Programming Guide 5.1.1.1 Pins for Digital I/O of Cincoze P2002 series product Item Standard... - Page 87 0xAA to the index port. Following is an example to enable configuration and to disable configuration by using debug. -o 4e 87 -o 4e 87 (enable configuration) -o 4e aa (disable configuration) 5.1.1.3 Relative Registers To program the F81866A configuration registers, see the following configuration procedures. CO-W124C/P2002 Series | User Manual...
- Page 88 CO-W124C/P2002 Series | User Manual...
- Page 89 // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(dataPort, 0x06) // Select logic device 06h <Input Mode Selection> // Set GP70 to GP77 input Mode WriteByte(AddrPort, 0x80) // Select configuration register 80h CO-W124C/P2002 Series | User Manual...
- Page 90 // Set (bit 0~7) = 1 to select GP 80 ~87 as Output mode. <Output Value> WriteByte(AddrPort, 0x89) // Select configuration register 89h WriteByte(DataPort, Value) // Set bit 0~7=(0/1) to output GP 80~87 as Low or High <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) CO-W124C/P2002 Series | User Manual...
- Page 91 // Select configuration register 60h WriteByte(DataPort, (ReadByte(DataPort) ǀ 0x03)) WriteByte(AddrPort, 0x61) // Select configuration register 61h WriteByte(DataPort, (ReadByte(DataPort) ǀ 0x20)) <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) Note: Cincoze DIO Port base address is 0x0A00h. CO-W124C/P2002 Series | User Manual...
- Page 92 5.1.1.6 DATA Bit Table (DIO) CO-W124C/P2002 Series | User Manual...
- Page 93 5.1.1.7 DIO I/O Port Address DI8 DI7 DI6 DI5 DI4 DI3 DI2 DI1 DO8 DO7 DO6 DO5 DO4 DO3 DO2 DO1 Pin Definition Data Bits 0xA03 0xA02 I/O Port address CO-W124C/P2002 Series | User Manual...
-
Page 94: Digital I/O (Dio) Hardware Specification
DO Signal have to pull up resistor to XCOM+ for external device, the resistance will affect the pull up current Signal High Level: Pull up resistor to XCOM+ Signal Low Level: = XCOM- Sink Current: 1A (Max) CO-W124C/P2002 Series | User Manual... -
Page 95: P2002 Dio Connector Definition
5.2.1 P2002 DIO Connector Definition DIO1/DIO2 : Digital Input / Output Connector Connector Type: Terminal Block 2X10 10-pin, 3.5mm pitch Definition Definition DC INPUT DC INPUT CO-W124C/P2002 Series | User Manual... - Page 96 CO-W124C/P2002 Series | User Manual...
-
Page 97: Chapter 6 Optional Modules And Accessories
Chapter 6 Optional Modules and Accessories CO-W124C/P2002 Series | User Manual... -
Page 98: Location Of The Connectors And Switches
SW2: Set shutdown delay timer when ACC is turned off Pin 1 Pin 2 Pin 3 Pin 4 Definition 0 second 1 minute 5 minutes 10 minutes 30 minutes 1 hour 2 hours Reserved (0 second) CO-W124C/P2002 Series | User Manual... -
Page 99: Installing Cfm-Ign Module
6.2 Installing CFM-IGN Module Locate the power Ignition connector on system motherboard as indicated. Insert the female connector of power ignition board to the male connector on system motherboard. Fasten two screws to secure the power ignition board. CO-W124C/P2002 Series | User Manual... -
Page 100: Installing Cfm-Poe Module
This chapter takes CFM-PoE101 for example. Locate the PoE connector on system motherboard as indicated. Insert the female connector of PoE daughter board to the male connector on system motherboard. Fasten two screws to secure the PoE board. CO-W124C/P2002 Series | User Manual... -
Page 101: Installing Vesa Mount
VESA 75mm and 100 mm standard for various usage. The 75mm VESA uses blue-circle-marked screw holes. The 100mm VESA uses red-circle-marked screw holes. 1. Put the VESA stand on, and align with the mounting holes. CO-W124C/P2002 Series | User Manual... - Page 102 2. Fasten the VESA mount screws to complete the VESA mounting. CO-W124C/P2002 Series | User Manual...
-
Page 103: Installing Rack Mount
Before the installation of rack mount, user need to follow the chapter 3.17 to disassemble the mounting brackets on the CO display module first. 1. Locate the screw holes on the PC or monitor module. 2. Put on the rack mount base and fasten the screws. CO-W124C/P2002 Series | User Manual... - Page 104 For P1001 / P1101 / P1201/ P1301/ P2102 / P2102E/P2202/P2202E Left Right Bottom 4. Assemble two rack mount brackets by fastening 4 screws (M5x12), flat washers and hex nuts at each side. For 19”~24” Panel PC series CO-W124C/P2002 Series | User Manual...
- Page 105 © 2024 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.
