EZ Switch 10/100
8-Port Fast Ethernet Switch
8 auto-MDI/MDI-X ports—connect to PCs or other
switches or hubs
One Gigabit port for high-speed uplink
Plug and play—nothing to configure
Auto-negotiation of speed and duplex mode
Full-duplex support on all ports
Half- and full-duplex flow control
Desktop and rack mountable
User Guide
SMC-EZ109DT
Advertisement
Table of Contents
Related Manuals for SMC Networks EZ109DT
Summary of Contents for SMC Networks EZ109DT
-
Page 1: User Guide
8 auto-MDI/MDI-X ports—connect to PCs or other switches or hubs One Gigabit port for high-speed uplink Plug and play—nothing to configure Auto-negotiation of speed and duplex mode Full-duplex support on all ports Half- and full-duplex flow control Desktop and rack mountable User Guide SMC-EZ109DT... - Page 3 EZ Switch 10/100 User Guide From SMC’s EZ line of low-cost workgroup LAN solutions 6 Hughes Irvine, CA 92618 May 2001 Phone: (949) 707-2400 Pub. # 150524-R01...
- Page 4 Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of SMC.
-
Page 5: Limited Warranty
30 days of purchase from SMC or its Authorized Reseller. Registration can be accomplished via the enclosed product registration card or online via the SMC web site. Failure to register will not affect the standard limited warranty. The Limited Lifetime warranty covers a product during the Life of that Product, which is defined as the period of time during which the product is an “Active”... - Page 6 WHICH MAY VARY FROM STATE TO STATE. NOTHING IN THIS WARRANTY SHALL BE TAKEN TO AFFECT YOUR STATUTORY RIGHTS. * SMC will provide warranty service for one year following discontinuance from the active SMC price list. Under the limited lifetime warranty, internal and external power supplies, fans, and cables are covered by a standard one-year warranty from date of purchase.
- Page 7 EC Conformance Declaration - Class A SMC contact for these products in Europe is: SMC Networks Europe, Edificio Conata II, Calle Fructuós Gelabert 6-8, 2 08970 - Sant Joan Despí,...
-
Page 8: Safety Compliance
OMPLIANCES Industry Canada - Class A This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of Industry Canada. Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe A prescrites dans la norme sur le matérial brouilleur: “Appareils Numériques”, NMB-003 édictée par l’Industrie. - Page 9 OMPLIANCES Wichtige Sicherheitshinweise (Germany) 1. Bitte lesen Sie diese Hinweise sorgfältig durch. 2. Heben Sie diese Anleitung für den späteren Gebrauch auf. 3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Verwenden Sie keine Flüssigoder Aerosolreiniger. Am besten eignet sich ein angefeuchtetes Tuch zur Reinigung.
- Page 10 OMPLIANCES...
-
Page 11: Table Of Contents
ABLE OF ONTENTS About the EZ Switch 10/100 ....1 Features and Benefits ....... . 2 Front Panel LEDs . - Page 12 ABLE OF ONTENTS...
-
Page 13: About The Ez Switch 10/100

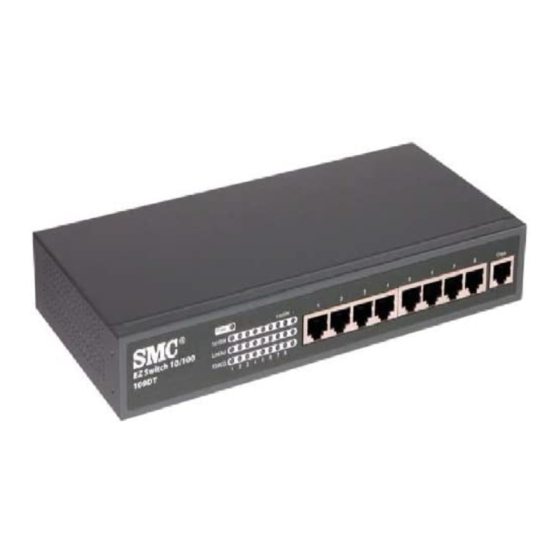

EZ S 10/100 WITCH The EZ Switch 10/100 SMC-EZ109DT is an 8-port Fast Ethernet switch with one Gigabit uplink port. The 10BASE-T/100BASE-TX ports deliver dedicated 10/100 Mbps links to each attached LAN segment. The Gigabit port operates at 100 and 1000 Mbps. Each port on the switch supports automatic MDI/MDI-X detection. -
Page 14: Features And Benefits
EZ S 10/100 BOUT THE WITCH Features and Benefits N Auto configuration for MDI/MDI-X cable connection allows connections to servers, workstations, hubs or switches to be made with straight-through cabling N One Gigabit uplink port for high-speed uplink N Auto-negotiation of half or full duplex on all ports N IEEE 802.3 and 802.3u compliance ensures compatibility with standards-based hubs, switches and cards from any vendor N Half- and full-duplex flow control prevents packets from being... -
Page 15: Front Panel Leds
EZ S 10/100 BOUT THE WITCH Front Panel LEDs The front panel of the switch provides status LEDs for “at-a-glance” system monitoring. The following table details the functions of the various indicators: Port and System Status LEDs Condition Status Power The switch is receiving power. -
Page 16: Rear Panel
EZ S 10/100 BOUT THE WITCH Port and System Status LEDs Condition Status Gigabit Port LINK/ The port has not established any network connection. The port has established a valid network connection. Flashing The port has established a valid network connection and traffic is passing through the port. -
Page 17: Installing The Switch
Equipment Checklist After unpacking the EZ Switch 10/100, check the contents of the box to be sure you have received the following components: • EZ Switch 10/100 SMC-EZ109DT • Appropriate AC power cable • Four adhesive foot pads & rackmount kit •... -
Page 18: Instructions
NSTALLING THE WITCH Make sure that a properly grounded power outlet is within 2.44 meters (8 feet) of the switch and is powered from an independent circuit breaker. As with any equipment, using a filter or surge suppressor is recommended. Instructions Positioning the Switch The EZ Switch 10/100 can be placed anywhere there is enough flat... -
Page 19: Rj-45 10/100 Mbps Connections
NSTALLING THE WITCH Note: It is not necessary to power off the switch before connecting or disconnecting any UTP cables, as these actions will not disrupt the operation of other devices attached to the switch. RJ-45 10/100 Mbps Connections For twisted-pair devices, connect each PC to an RJ-45 port on the switch with a twisted-pair cable segment, maximum 100 meters (328 feet). -
Page 20: Sample Applications
NSTALLING THE WITCH Sample Applications This switch segments your network, significantly increasing both bandwidth and throughput. Any port on the switch can be attached to a hub (a shared collision domain) or provide a dedicated link to a single network device (such as a workstation or server). - Page 21 NSTALLING THE WITCH Gigabit Uplink Port - You can use the Gigabit port to support applications such as high-speed file servers, or for connecting to a collapsed backbone switch. In the figure below, the EZ Switch 10/100 is operating as a collapsed backbone for a small LAN.
-
Page 22: Troubleshooting
ROUBLESHOOTING ROUBLESHOOTING 1. Symptom Power LED does not light after power on. Probable Causes Power outlet or power cord may be defective. Possible Solutions • Check for loose connections. • Check the power outlet by using it for another device. •... -
Page 23: Cables
ABLES ABLES ABLE PECIFICATION Maximum 10BASE-T, 100BASE-TX and 1000BASE-T Cable Length Cable Type Max. Length Connector 10BASE-T Cat. 3, 4, 5 100-ohm UTP 100 m (328 ft) RJ-45 100BASE-TX Cat. 5 100-ohm UTP 100 m (328 ft) RJ-45 1000BASE-T Cat. 5, 5e 100-ohm UTP 100 m (328 ft) RJ-45... -
Page 24: Rj-45 Connector Pin Assignments
ABLES RJ-45 Connector Pin Assignments Caution: DO NOT plug a phone jack connector into any RJ-45 port. Use only twisted-pair cables with RJ-45 connectors that conform with FCC standards. 10BASE-T/100BASE-TX Pin Assignments An Ethernet or Fast Ethernet twisted-pair link segment requires two pairs of wires. -
Page 25: 1000Base-T Pin Assignments
ABLES 1000BASE-T Pin Assignments The table below shows the 1000BASE-T MDI and MDI-X port pinouts. These ports require that all four pairs of wires be connected. Note that for 1000BASE-T operation, all four pairs of wires are used for both transmit and receive. Use 100-ohm Category 5 or 5e unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable for 1000BASE-T connections. -
Page 26: 1000Base-T Cable Requirements
ABLES 1000BASE-T Cable Requirements All Category 5 UTP cables that are used for 100BASE-TX connections should also work for 1000BASE-T, providing that all four wire pairs are connected. However, it is recommended that for all critical connections, or any new cable installations, Category 5e (enhanced Category 5) cable should be used. -
Page 27: Adjusting Existing Category 5 Cabling To Run 1000Base-T
ABLES Adjusting Existing Category 5 Cabling to Run 1000BASE-T If your existing Category 5 installation does not meet one of the test parameters for 1000BASE-T, there are basically three measures that can be applied to try and correct the problem: 1. -
Page 28: Specifications
PECIFICATIONS PECIFICATIONS Access Method CSMA/CD Ports 8 10BASE-T/100BASE-TX, with auto-negotiation 1 100BASE-TX/1000BASE-T with auto-negotiation Network Interface RJ-45: 100 ohm, UTP cable 10BASE-T - Categories 3, 4, or 5 100BASE-TX - Category 5 1000BASE-T - Category 5 or 5e LEDs System: Power Ports 1-8: Link/Act, FDX/COL, 10/100M Gigabit Port: Link/Act, FDX/COL, 100M, 1000M Switching Method... - Page 29 PECIFICATIONS Weight 0.85 kg (1.87 lbs) Temperature Operating: 0 to 40 °C (32 to 104 °F) Storage: -40 to 85 °C (-40 to 185 °F) Humidity 5% to 95% non-condensing Power Requirements 100 to 240 VAC (±10%) 50 to 60 Hz (±3 Hz) Power Consumption 15 Watts maximum @100 - 240 VAC Heat Dissipation...
- Page 30 PECIFICATIONS...
- Page 32 FOR TECHNICAL SUPPORT, CALL: From U.S.A. and Canada (24 hours, 7 days a week) (800) SMC-4-YOU; (949) 707-2400; (949) 707-2460 (Fax) From Europe (8:00 AM - 5:30 PM UK Greenwich Mean Time) 44 (0) 1188 748740; 44 (0) 1189 748741 (Fax)
