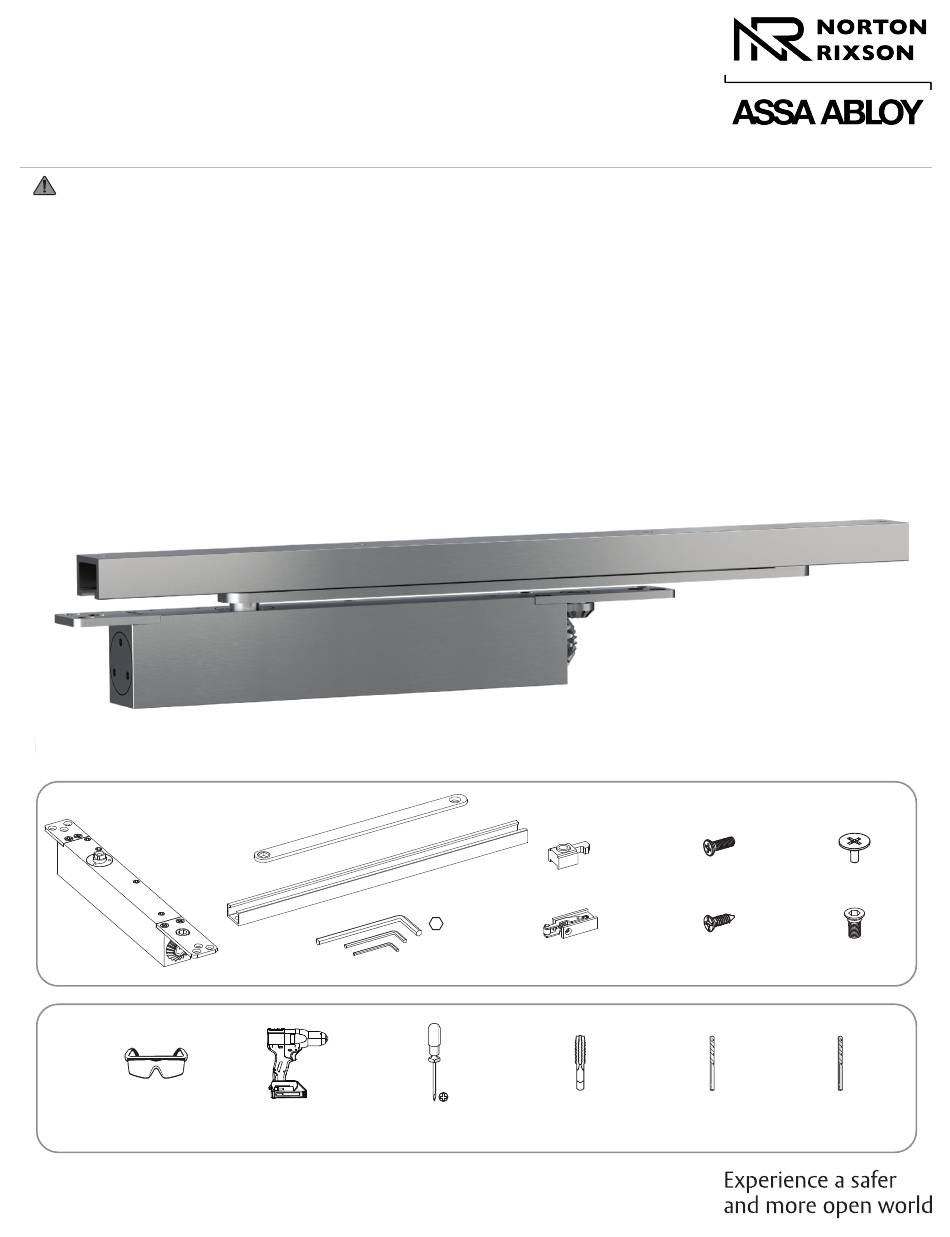

Assa Abloy NORTON RIXSON 61 Installation Instructions Manual

Model 61 Overhead Concealed Closer
Cam Action Technology
Non-Hold Open & Hold Open
Installation Instructions
WARNING
This product can expose you to lead which is known to
the state of California to cause cancer and birth defects or
other reproductive harm. For more information go to:
www.P65warnings.ca.gov.
NOTES:
y Non-handed. Can be used on right or left handed doors. Refer to page 2.
y Size adjustable from 2 - 4. Refer to page 4
y Frame/Door Types: Metal & Wood
y Minimum Frame: 1" (25mm)
y Minimum Door Thickness: 1-3/4" (44mm)
y Maximum Opening Angle: 120°
CAUTION: If frame and wall conditions permit the door to be opened beyond the maximum 120°, an Auxiliary Stop is
required. Do not exceed 120° of opening to prevent damage.
Included Components
Closer
Tools Required
Safety Glasses
Copyright © 2024, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole or in
part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
80-9361-0001-020 Rev 2 12/24
Arm
Hex Wrenches
Drill #2 Phillips Head
Screwdriver
Approved 2024-12-20
CAUTION
An incorrectly installed or improperly adjusted door closer
can cause property damage or personal injury. These
instructions should be followed to avoid the possibility of
misapplication or misadjustment.
READ AND FOLLOW ALL INSTRUCTIONS.
SAVE THESE INSTRUCTIONS.
Track
Slide
5mm
4mm
2.5mm
H/O Device
(with 61H Models)
M5x.08
Tap for Metal
M5x16
Metal Screws (x10)
Screw (x1)
4.8x25 Screws M8x17.5
Wood Screws (x10) Screw (x1)
1/8" Drill Bit 4.2mm or #19 (.166)
Drill Bit
M6x10
