- Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts. www.liko.com www.liko.com...
Page 8
- Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts. www.liko.com www.liko.com...
Page 9
- Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts. www.liko.com www.liko.com...
Page 10
- Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts. www.liko.com www.liko.com...
Page 12
- Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts. www.liko.com www.liko.com...
Page 14

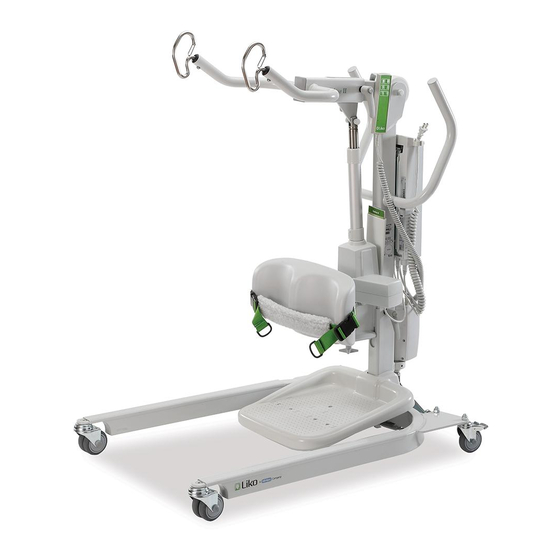

Sabina II Comfort Slingbar 2027003 This instruction applies to all of the above products. (Pictures show the mounting on Sabina ll, but the installation is the same for all the above products) NOTE Make sure the twin lock washers are fixed together as shown below.
Page 16
- Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts. www.liko.com www.liko.com...
Sabina II Comfort Slingbar 2027003 This instruction applies to all of the above products. (Pictures show the mounting on Sabina ll, but the installation is the same for all the above products) NOTE Make sure the twin lock washers are fixed together as shown below.
Address: ............... Prod Year: ............... Post code: ..............The Sabina sit-to-stand lift must be thoroughly inspected at least once per year. Inspection and service must be carried out by Hill-Rom/Liko authorized personnel. Instructions for check points, from next page. Check points:...
Page 21
Sabina™ Instructions for the check points Check points Sabina ll Sabina 200 www.liko.com Periodic Inspection Sabina...
Page 22
35 mm/1.38 Inch total. 7 Foot tray - Inspect plastic Foot tray cover for cracks and secure fit on metal frame. - Verify that the foot frame sits securely on base. 8 Locking handles - Loosen & re tighten locking handles. Verify that threads are not damaged or binding. www.liko.com Periodic Inspection Sabina...
Page 23

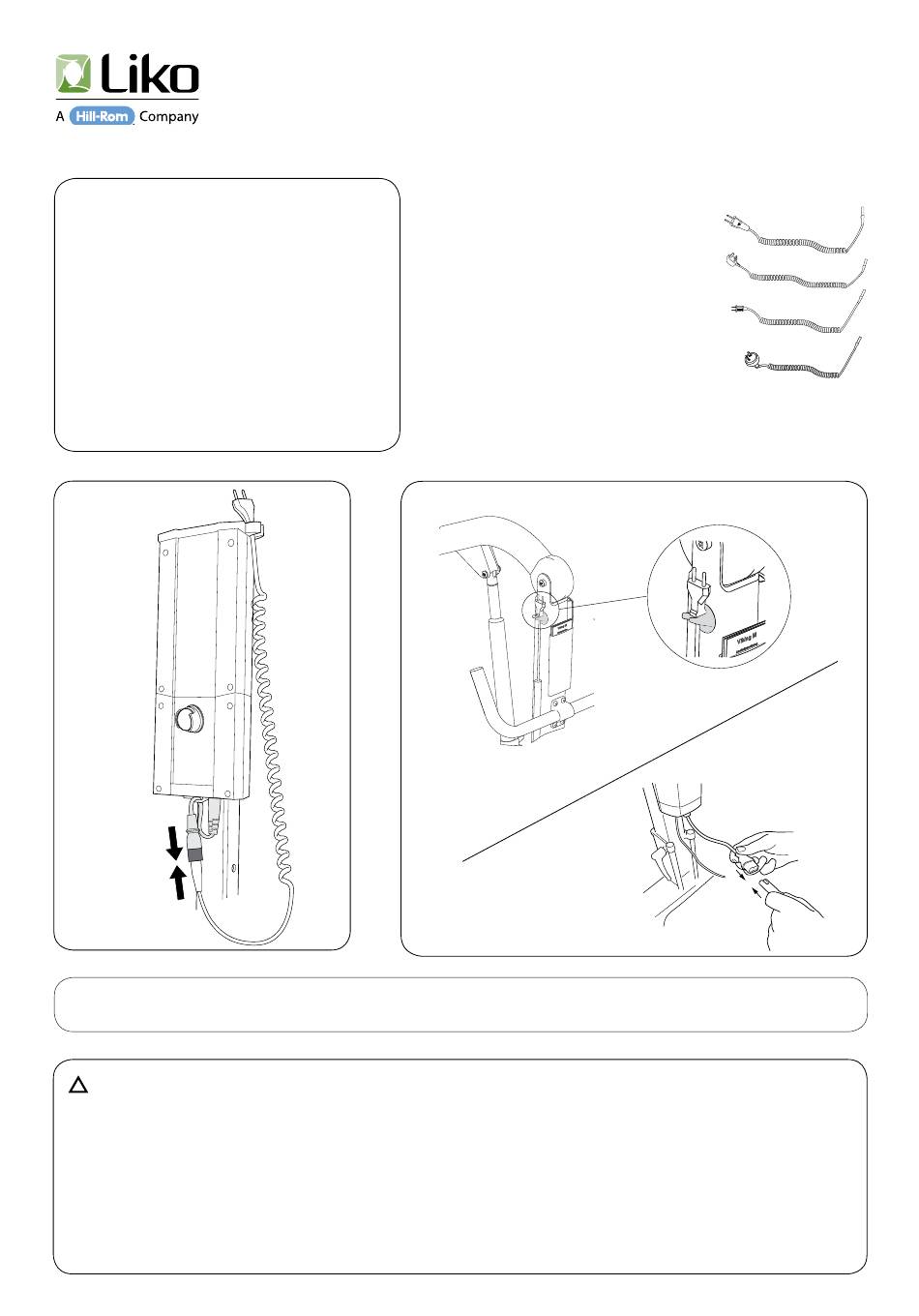

Hand control (large DIN receptacle, H) Mast actuator (#1) Base motor ( #2) Extension cord (#3) connected to the charging cable. Sabina 200: Charging cable (#1.) Hand control (#2.) Base motor (#3.) Mast actuator (#4.) 14 Functions on the hand control - With the emergency stop out, verify that all functions on the hand control are working.
Page 24
- Run the base in and out with specified load*. - Listen for peculiar noises and vibrations. *Test load: Sabina ll: Sabina 200: 150kg / 330lbs 120 kg / 265 lbs 19 Documentation - Instructions/Instruction guide or Quick Reference Guide. www.liko.com Periodic Inspection Sabina...
Prod. Year: (Zip Code) To ensure maximum life cycle, Preventative Maintenance should be carried out according to the table below. Inspection and service must be carried by HillRom/Liko authorized personnel. Base Month 12 24 36 48 60 72 84 96 108 120 1 Surface treatment ............
1. If needed, clean the patient lift with warm water or ethanol. Warning! Do not use chemicals containing phenol or chlorine, since the aluminium parts may be damaged. 2. Touch-up painted surfaces with Laquer top coat, Spare Part No: 20190048 3. Replace broken / missing leg protectors with Spare Part No: 20190029 Preventative Maintenance Sabina www.liko.com...
Page 28
3. Remove and clean the castor wheel and housing. Re-assemble in reverse order. 17 mm 4. If wheels are worn or do not roll smoothly, replace them. 5. Check the brakes. They should lock in all directions. Recommended replacement is every 5 year Preventative Maintenance Sabina www.liko.com...
Page 29
6. Re-assemble base as in (Fig 3-2). 5. Clean holes and pin bolts. If pin bolts are worn, Tighten bolts and replace pins or locking nuts. replace with part. No. 20190057. Lubricate the holes and the pin bolts. Preventative Maintenance Sabina www.liko.com...
Page 30
7. Adjust the linkarms so that it goes up through the 6. Adjust base width (”D” in technical data). base at a 90-degree angle. Tighten locking nuts, check play after assembly. No. 2-7, every 3 year Preventative Maintenance Sabina www.liko.com...
Page 31
Pull back the handle to check compression spring. . Ensure that the turnable plate welding is not bent Inspect linkage arms and ball coupling hardware. and secures in turnable plate teeth when the handle is released. Recommended replacement is every 5 year Preventative Maintenance Sabina www.liko.com...
Page 32
A signal should be audible for more than 5 sec. - Repairs and maintenance may only be performed by personnel authorized by Liko and using original Liko spare parts. - Old batteries are to be left at the nearest recycling station or given to personnel authorized by Liko.
2020004 Sabina II EM is obsoleted. 1931 New spare part created, 184010 Center assembly set Spare part that only fits to Sabina-models 2020001 Sabina EE and 2020002 Sabina EM (obsoleted 2003), will go obsolete during 2014: Product No. 20290008 Actuator JKAS 250 G Sa 20290011 Control box Sa 20290011US Control Box Sabina, US...
Page 35
413373 New version of centre Locking nut M12 instead of welded castellated nut, EM 406485 New version of centre Locking nut M12 instead of welded castellated nut ,Sabina ll 413260 Foot tray tested on every lift 412854 New serial number decal EM...
Page 37
. l i k o . com Manufacturer: Liko AB SE-975 92 Luleå Sweden...
