Liko Golvo G7 Assembly Instruction Manual

20090069 Contains:
Easy strapper G7/G8
20090070 Contains:
Easy strapper G77/G88
1.
3.
NOTE
- After changing lift strap the Limit Switch must be tested by lifting maximum load all the way up to the highest position
through the entire lifting range.
- With the emergency stop out, move the liftstrap all the way up against the Limit switch. Check that the motor does not
operate when touching the Limit switch.
- Make sure the spare part is mounted according to the assembly instruction.
- Check all functions related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts.
© Copyright Liko AB
ServiceManual Golvo™ mobile lift (3EN400404 Rev 3)
Golvo™
Monteringssats komplett lyftband G7/G8, G77/G88
Now with grey strap and
grey plastic details.
Qty: Fits:
1 Golvo 7000
Golvo 7000 ES Classic
Golvo 8000 (all models)
Qty: Fits:
1 Golvo 7007 from S/N 7723630
Golvo 7007 ES Classic
Golvo 7007 LowBase
Golvo 8008 (all models)
Easy Strapper G7/G8, G77/G88
Prod. No. 20090069, 20090070
2.

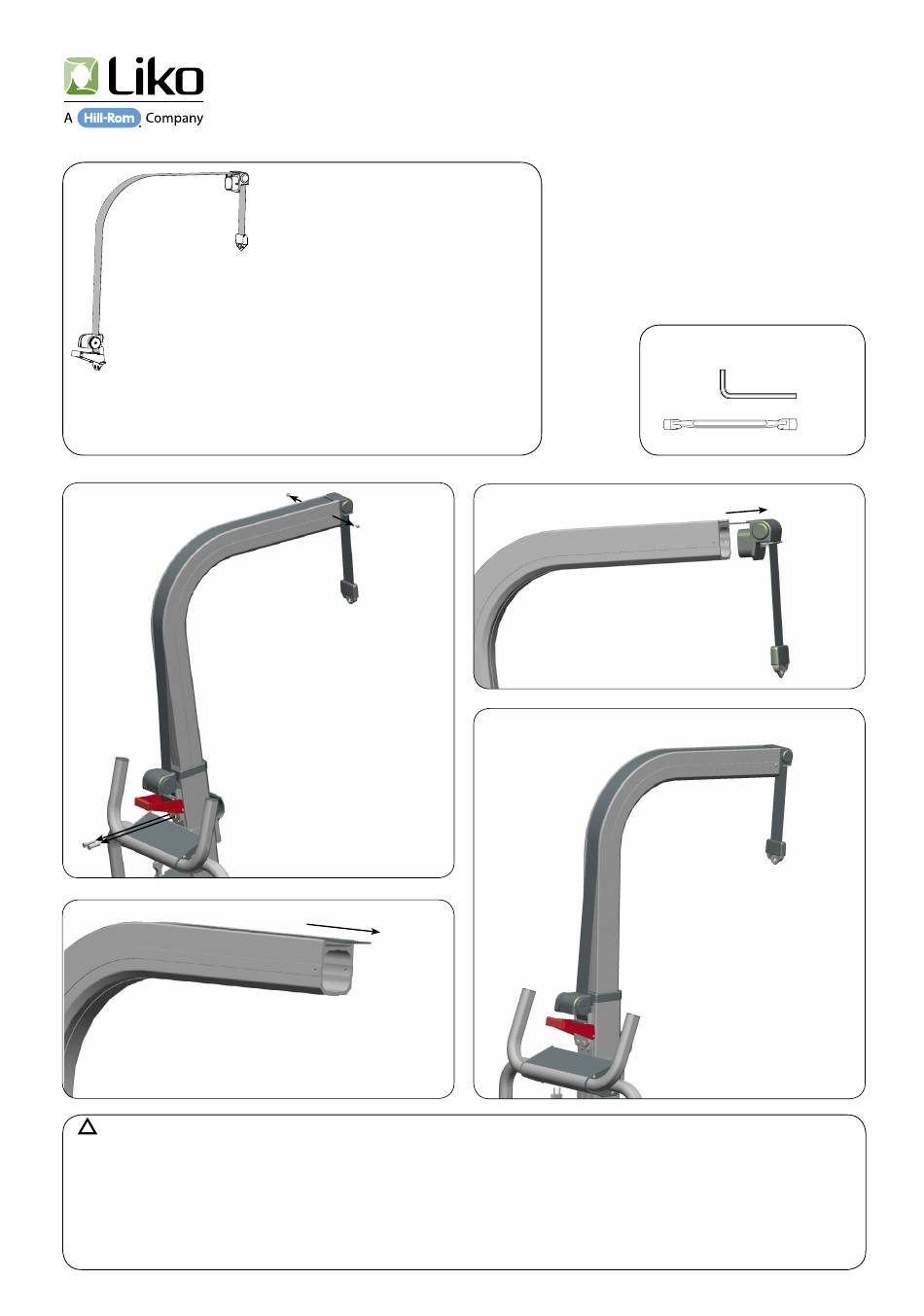

4. Mount the spare part,
assemble in reverse order.
55
5.323-324
Assembly Instruction
Monteringsanvisning
3SE640248-03
2011-03-30
Tools required:
www.liko.com
www.liko.com
3mm
13mm
