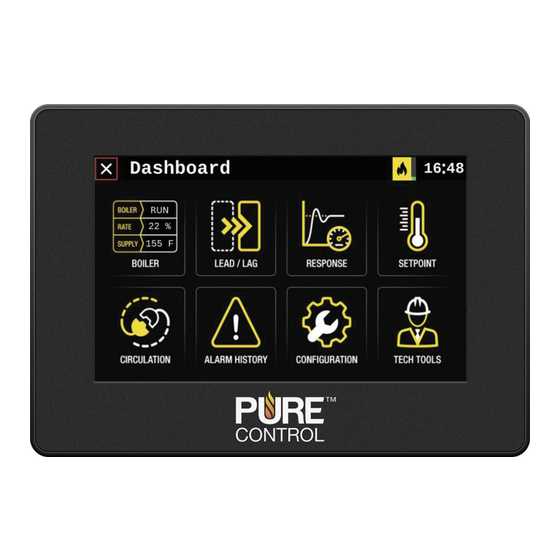

FULTON PURE CONTROL User Manual

FULTON PURE CONTROL User Manual

For endura xe condensing hydronic boilers
Hide thumbs

Advertisement

Quick Links

Download this manual
PURE CONTROL®
USER MANUAL
FOR ENDURA XE®
Condensing Hydronic Boilers
Serial/ National
Board Number
Model
Fulton Order
Owner
Site Name
Date
ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919

Advertisement

loading
Need help?

Need help?

Do you have a question about the PURE CONTROL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FULTON PURE CONTROL

Summary of Contents for FULTON PURE CONTROL

  • Page 1 PURE CONTROL® USER MANUAL FOR ENDURA XE® Condensing Hydronic Boilers Serial/ National Board Number Model Fulton Order Owner Site Name Date ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919...
  • Page 3 LAG STAGING ..........................3-14 Response Menu ....................3-15 Overview ......................7-2 OUTPUT ............................3-15 Wiring ........................7-2 PID CONFIG..........................3-17 PURE Control™ Controller Settings ............... 7-2 FREEZE PROTECTION .........................3-20 LOW FIRE HOLD..........................3-21 SOFT LIMIT ..........................3-22 RATE OF CHANGE ........................3-23 ANTI-CYCLE ..........................3-24 Temperature Menu .................... 3-25 SETPOINT CONFIG ........................3-25...
  • Page 4 TABLE OF CONTENTS ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919 © Fulton Group N.A., Inc. 2024...

  • Page 5: Bms Integration

    INTRODUCTION INTRODUCTION HARDWARE AND NAVIGATION CONTROL MENUS CONFIGURING LEAD/LAG OPERATION UPDATING THE CONTROL SOFTWARE USING THE DATA MANAGER BMS INTEGRATION Questions? Please Contact Your Local Manufacturer’s Representative...

  • Page 6: Disclaimers And Local Codes

    This User Manual is specific to the Endura XE(R) version of the should be consulted prior to installation. PURE Control and is intended for use in conjunction with the current edition of the respective boiler Installation, Operation, When required by local codes, the installation must conform and Maintenance (IOM) manual.
  • Page 7 HARDWARE AND NAVIGATION INTRODUCTION HARDWARE AND NAVIGATION CONTROL MENUS CONFIGURING LEAD/LAG OPERATION UPDATING THE CONTROL SOFTWARE USING THE DATA MANAGER BMS INTEGRATION Questions? Please Contact Your Local Manufacturer’s Representative...
  • Page 8 Screenshots are for reference only, and will vary by boiler product line and PURE Control(R) and is intended for use in Control version. This manual is based on Endura XE PURE Control version 4.5.0.0. conjunction with the current edition of the respective boiler Installation, Please be aware of which configuration has been supplied for your application.
  • Page 9 HARDWARE AND NAVIGATION SECTION 2 ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919 FIGURE 1 - CONTROL DISPLAY HARDWARE DIMENSIONS Questions? Please Contact Your Local Manufacturer’s Representative...
  • Page 10 HARDWARE AND NAVIGATION SECTION 2 ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919 PAGE LEFT INTENTIONALLY BLANK © Fulton Group N.A., Inc. 2024...
  • Page 11 CONTROL MENUS INTRODUCTION HARDWARE AND NAVIGATION CONTROL MENUS CONFIGURING LEAD/LAG OPERATION UPDATING THE CONTROL SOFTWARE USING THE DATA MANAGER BMS INTEGRATION Questions? Please Contact Your Local Manufacturer’s Representative...

  • Page 12: Dashboard Menu

    Provides a quick overview of the current boiler operations Including Status, • If you cannot reach your gas supplier, Temperature, Setpoint, and Firing Rate call the fire department. A qualified installer, service agency or the gas supplier, must perform installation and service. © Fulton Group N.A., Inc. 2024...
  • Page 13 CONTROL MENUS SECTION 3 ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919 Factory Modbus Parameter Name Range Units Description Default Register Boiler Status 0 – Standby Current Status of the Boiler (4)0000 INT16 1 – Pre-Purge Read 2 – Ignite 3 – Run 4 – Post-Purge 5 – Lock Out 6 –...
  • Page 14 Boiler Status 0 – Standby Current Status of the (4)0000 Boiler INT16 1 – Pre-Purge Read 2 – Ignite 3 – Run 4 – Post-Purge 5 – Lock Out 6 – Homing 7 – Switch Off © Fulton Group N.A., 2024...
  • Page 15 CONTROL MENUS SECTION 3 ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919 Factory Modbus Parameter Name Range Units Description Default Register Lead/Lag Status 0 – Waiting Lead/Lag Position or (4)0077 - current source of boiler (4)0086 1 – Disabled control INT16 2 – Not Available Read 3 – Lead 4 –...
  • Page 16 Enable / Disable Boiler Enabled (4)0103 Disable INT16 Boiler Disabled Read Automatic / Manual Automatic Control Automatic Manual Control Boiler Outlet 40.0 – 185.0 °F (4)0017 INT16 Read Boiler Inlet 40.0 – 185.0 °F (4)0018 INT16 Read © Fulton Group N.A., 2024...
  • Page 17 CONTROL MENUS SECTION 3 ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919 Factory Modbus Parameter Name Range Units Description Default Register Boiler Delta T 40.0 – 185.0 °F (4)0019 INT16 Read Exhaust Stack 40.0 – 185.0 °F (4)0022 INT16 Read Combustion Air 40.0 – 185.0 °F (4)0023 INT16 Read Setpoint:...
  • Page 18 / Outdoor Cutoff satisfied and will not prevent the Active  boiler from running.  Safeties OK / N/A  N/A  N/A  Green Highlight = Condition is Safeties not made  satisfied and will not prevent the boiler from running.  © Fulton Group N.A., 2024...
  • Page 19 CONTROL MENUS SECTION 3 ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919 ƒ Boiler History Shows operation information for the boiler. Parameter Name  Range  Units  Factory Description  Modbus Default  Register  Online Hours  0 – 999,999  Hours  N/A  Total Hours the Boiler has been powered (4)0046 on  UINT32 Read Run Hours ...
  • Page 20 (4)0028 header – System return)   INT16 Read System Return  40.0 – 185.0  °F  N/A  Current reading from the System (4)0027 Return Header sensor  INT16 Read Boiler X Info  Information Specific to each Lead/Lag boiler 3-10 © Fulton Group N.A., 2024...
  • Page 21 CONTROL MENUS SECTION 3 ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919 ƒ Universal Data The Universal Data system broadcasts specific sensor, BMS, and hardwired connections over the boiler Lead/Lag network, allowing for flexibility and redundancy in installation and operation of the modular boiler plant. The Originator boiler will utilize this information for plant sequencing purposes.
  • Page 22 Boiler 7 set to 192.168.1.106 Boiler 8 set to 192.168.1.107 Boiler 9 set to 192.168.1.108 Boiler 10 set to 192.168.1.109 Number of Boilers 0 – 10 0  Total number of boiler connected to the Lead/Lag network 3-12 © Fulton Group N.A., 2024...
  • Page 23 CONTROL MENUS SECTION 3 ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919 Parameter Name  Range  Units  Factory Default  Description  Modbus Register  Lead Start 0.0 – 20.0 °F 5.0  The Lead Start is the hysteresis below setpoint which begins a call for heat. Lead Stop 0.0 – 20.0 °F 10.0 ...
  • Page 24 Adjusts the PID CV at which the Lag boiler call for heat is removed. Decreasing this value will disable Lag stages later at lower firing rates, increasing this value will disable Lag stages sooner at higher firing rates. 3-14 © Fulton Group N.A., 2024...
  • Page 25 CONTROL MENUS SECTION 3 ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919 Response Menu ƒ Output Shows information specific to control of the boiler and its firing rate as well as items that would impact it. The Boiler Protections act as PID “modifiers” and will override the firing rate of the burner in accordance with configured settings. Parameter Name ...
  • Page 26 Configuration and setup found in this Section 3.  Inactive Flue Gas Vent Limit Active N/A  N/A  Configuration and setup found in this Section 3.  Inactive Anti-Cycle  Active N/A  N/A  Configuration and setup found in this Section 3.  Inactive 3-16 © Fulton Group N.A., 2024...
  • Page 27 CONTROL MENUS SECTION 3 ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919 ƒ PID Config Shows information specific to which PID Loop is currently active and sliders to adjust how the boiler responds to its heating load. Adjusting the slider to Aggressive will result in faster burner response, but a potentially higher rate of cycling of the boiler. Setting towards Passive will slow down the response.
  • Page 28 0 – 100%  %  N/A  Current Temperature being used by the PID  Control Variable  0 – 100%   %  N/A  Output of the PID   Local PID  N/A  N/A  N/A  Slide Bar to adjust Local PID Response  3-18 © Fulton Group N.A., 2024...
  • Page 29 CONTROL MENUS SECTION 3 ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919 Parameter Name  Range  Units  Factory Description  Modbus Default  Register  Lead/Lag PID  N/A  N/A  N/A  Slide Bar to adjust Lead/Lag PID Response  DHW PID  N/A  N/A  N/A  Slide Bar to adjust DHW PID Response  3-19 Questions? Please Contact Your Local Manufacturer’s Representative...
  • Page 30 Temperature at which the boiler is Enable  enabled to run during stage 2. Stage 2 Burner 32.0 – 100.00 °F 55.0 Temperature at which the boiler is Disable  disabled and shuts off during stage 2. 3-20 © Fulton Group N.A., 2024...
  • Page 31 CONTROL MENUS SECTION 3 ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919 ƒ Low Fire Hold Becomes active immediately after the call for heat. It is strictly time based and will hold the boiler at low fire until the user selected time has expired and then releases the boiler to normal operation. Cold Start is an optional setting that becomes active immediately after the call for heat.
  • Page 32 This setting must be configured lower than the Soft Limit setting. High Limit °F 210.0 The Manual Reset High Limit (MRHL). This is not field-adjustable, for safety purposes this parameter requires OEM equipment for modification. 3-22 © Fulton Group N.A., 2024...
  • Page 33 CONTROL MENUS SECTION 3 ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919 ƒ Rate of Change Rate of Change will prevent upward burner modulation in the event of excessive temperature rise in the heat exchanger. This feature prevents short cycling of the boiler, particularly during low flow situations. Parameter Name ...
  • Page 34 Disable  Turns the Anti-Cycle option on/off  Cycle Timer  00:00 – 59:59  MM:SS  01:00  Amount of time the boiler must re- main off between cycles, and before it can receive a new call for heat.   3-24 © Fulton Group N.A., 2024...

  • Page 35: Temperature Menu

    CONTROL MENUS SECTION 3 ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919 Temperature Menu ƒ Setpoint Config The setpoint settings are used for both Local standalone as well as Lead/Lag operation. For Lead/Lag operation, ensure the setpoint settings are identical on all boilers in the network. This screen allows configuration of the minimum and maximum allowable setpoint, as well as the selection of the setpoint source.
  • Page 36 °F  160.0  High range for the Outdoor temperature used in the setpoint scaling  Cold Outdoor Temp  40.0 – 185.0  °F  50.0  Low range for the Boiler Hot Water Setpoint used in the setpoint scaling  3-26 © Fulton Group N.A., 2024...
  • Page 37 CONTROL MENUS SECTION 3 ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919 Parameter Name  Range  Units  Factory Default  Description  Modbus Register  Warm Outdoor 40.0 - 185.0      °F  50.0  High  range for the Boiler Hot Water Setpoint  Setpoint used in the setpoint scaling  Analog 4-20mA 4-20mA signal  0.0 – 20.0  mA ...
  • Page 38 Lead/Lag plant will be enabled. Ensure appropriate deadband exists between these two values to prevent short cycling, a minimum separation of 5°F is recommended. 3-28 © Fulton Group N.A., 2024...
  • Page 39 CONTROL MENUS SECTION 3 ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919 ƒ Domestic Hot Water Enabling the Domestic Hot Water (DHW) Priority function will increase the boiler(s) setpoint temperature, where needed, to satisfy an indirect DHW demand. When the DHW Demand ends, the boiler(s) will return to their normal hydronic heating setpoint temperature.
  • Page 40 Hour From / Hour To on Monday to all seven days.   Setback Mode N/A  N/A  Enabled  Turns the feature on/off. When Enable / Disable  disabled the setback options will not take effect.   3-30 © Fulton Group N.A., 2024...
  • Page 41 CONTROL MENUS SECTION 3 ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919 ƒ Deviation Determines the start and stop deviations (hysteresis) around setpoint when operating in Local mode. This setting is not used while the boiler in under ModSync or Lead/Lag control. Parameter Name  Range  Units  Factory Default  Description ...
  • Page 42 Minimum Speed 4.0 - 20.0 Prevents the boiler (primary) pump from Output operating below a specified speed. Current Output 4.0 - 20.0 Signal that is currently being sent. 3-32 © Fulton Group N.A., 2024...
  • Page 43 CONTROL MENUS SECTION 3 ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919 ƒ System Pump Determines how the system (secondary) pump enable contact will operate. The system pump is used to circulate hydronic heating water to the coils, zones or users. Parameter Name  Range  Units  Factory Default  Description ...
  • Page 44 00:00 – 59:59  MM:SS  02:00 When selected will keep the valve open (MM:SS)  or pump on for the user designated amount of time to dissipate remaining heat in the boiler and prevent nuisance limit trips. 3-34 © Fulton Group N.A., 2024...

  • Page 45: Alarm History Menu

    The Alarm Info screen will display detailed information on the selected alarm, including the burner stage, target and actual modulation rates, and a detailed description of the alarm. Record this information prior to contacting your local Fulton Representative for technical support.
  • Page 46 CONTROL MENUS SECTION 3 ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919 Tapping on “Alarm Solution” will provide troubleshooting tips to resolve the alarm. For additional support, contact your local Fulton Representative. 3-36 © Fulton Group N.A., 2024...
  • Page 47 The boiler may also be given a unique name which will be displayed on the Lead/Lag Status screen. The version number of the software is also displayed on this screen. Record the version number prior to contacting your local Fulton Representative for technical support. Parameter Name ...
  • Page 48 00:05  Time before the password will timeout (HH:MM)  and need to be re-entered.   Lock Screen Check Boiler  N/A  N/A  Check box selection for what menus Boxes  should be password protected.   Lead/Lag  PID  Temperature  Circulation  3-38 © Fulton Group N.A., 2024...
  • Page 49 CONTROL MENUS SECTION 3 ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919 ƒ Sensors Displays the current status and reading from standard and optional sensors. The offset parameter may be used to calibrate sensor readings. Parameter Name  Range  Units  Factory Description  Modbus Default  Register  Boiler Sensors Inlet Boiler sensors are factory installed and Outlet...
  • Page 50 0 – 999,999,999  N/A  N/A  Total number of communications that have had an issue or where incomplete  Drops  0 – 999,999,999  N/A  N/A  Total number of communications where information was lost  Status  0 -   3-40 © Fulton Group N.A., 2024...
  • Page 51 CONTROL MENUS SECTION 3 ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919 ƒ BMS Modbus This screen is used to set the Modbus ID, view BMS Modbus communication, and override the BMS remote enable to permit the boiler to run regardless of BMS remote enable status. Parameter Name  Range ...
  • Page 52 Tapping this icon will navigate to the Maintenance screen, which may also be accessed through the Configuration menu. The Maintenance screen will display boiler information and provide QR codes for digital documentation. The Maintenance interval and reminder may be configured in the Tech Tools menu. 3-42 © Fulton Group N.A., 2024...
  • Page 53 CONTROL MENUS SECTION 3 ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919 ƒ Data Manager The Data Manager allows the user to save and load boiler settings to the microSD card or a portable USB flash drive. It is recommended to always save boiler settings after commissioning a new boiler or performing maintenance. Refer to the section “Exporting Data using the Data Manager”...
  • Page 54 • Follow the gas supplier’s instructions. • If you cannot reach your gas supplier, call the fire department. A qualified installer, service agency or the gas supplier, must perform installation and service. 3-44 © Fulton Group N.A., Inc. 2024...
  • Page 55 CONTROL MENUS SECTION 3 ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919 Tech Tools ƒ Install Setup The installation details should be configured by the authorized service technician prior to commissioning and operating the boiler. Parameter Name  Range  Units  Factory Default  Description  Modbus Register  Tech/Rep 0 - 99999999 5121 The numeric password (PIN) used to Password...
  • Page 56 Proportional 200 - 1000 The proportional value to be used for Passive the passive bounds of the PID slider. Integral 0 - 1000 The integral to be used for the full PID slider range. 3-46 © Fulton Group N.A., 2024...
  • Page 57 CONTROL MENUS SECTION 3 ENDURA-XE_PURE-CONTROL-USER-MANUAL-240919 ƒ IO Status The IO Status screen provides rapid access the flame safeguard (CFS, FSG) and PLC input and output status which can be used for advanced diagnostics or troubleshooting purposes. ƒ Commission The Commission screen is used by the authorized service technician to perform initial combustion adjustment and verification when commissioning a new boiler.
  • Page 58 Months remaining until the next service interval. This resets when the Months until Alert is updated or the operator acknowledges service. Reminder Time for service. The maintenance reminder message that will appear for the operator. 3-48 © Fulton Group N.A., 2024...
