5

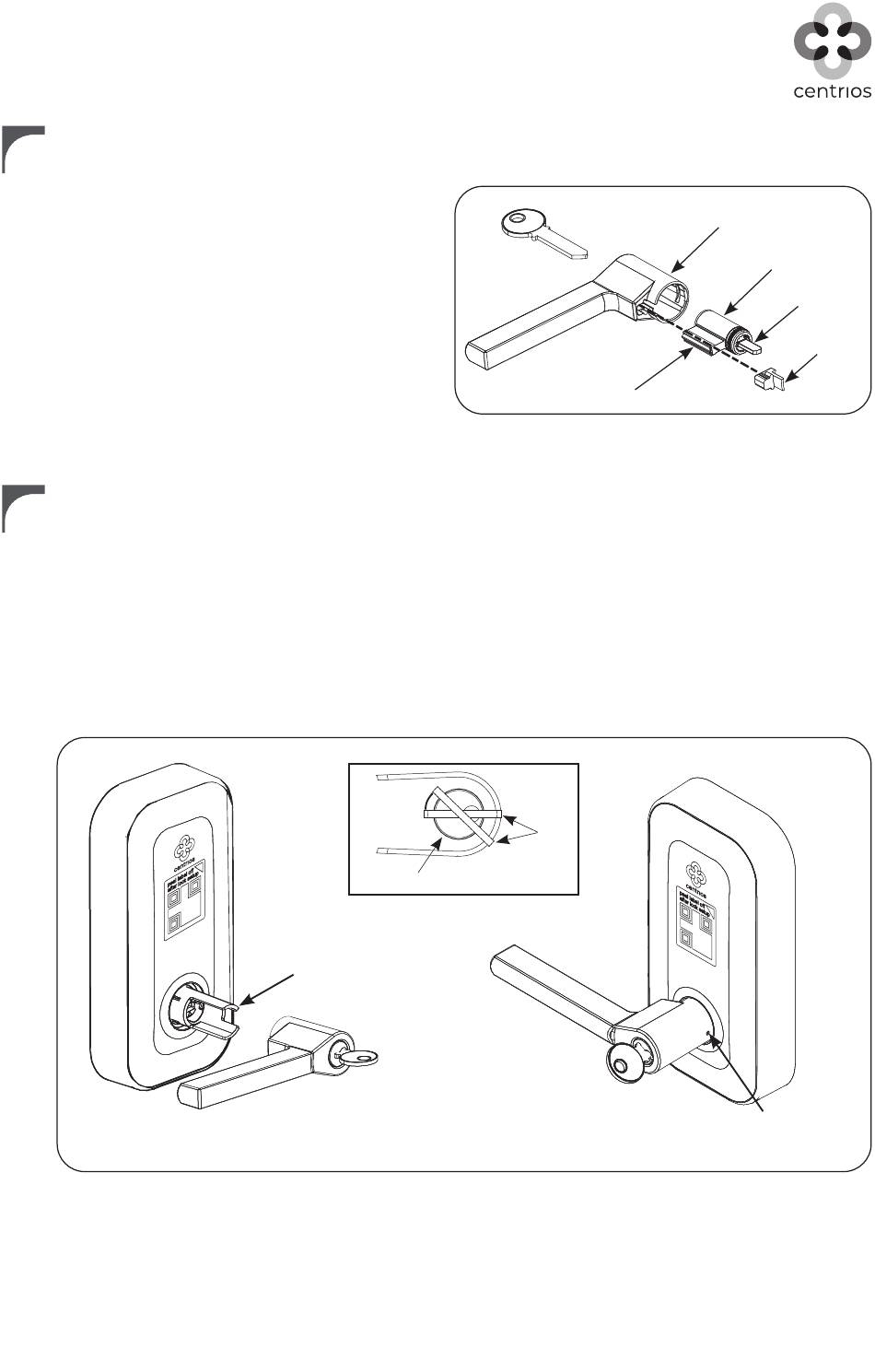

Install the cylinder into the lever (if necessary)
If you need to install the cylinder into the
lever, first make sure the cylinder tailpiece is
aligned in the same direction as the cylinder
bible (picture).
Then, slide the cylinder all the way into the
lever.
Press the cylinder retainer into the lever to
restrain the cylinder.
When you insert the key, be sure to not press
too hard so no parts fall out.
6
Install the exterior lever and cylinder
We're now ready to install the lever and cylinder to the outside (exterior) of your door.
Insert one of the keys into the cylinder, then turn the key 45 degrees clockwise. Also turn the
Cylinder Cam (see Step 4) 45 degrees to match.
Now you can slide the lever onto the shank of the exterior escutcheon. Press the lever until it
clicks into place.
Turn the key back to the horizontal position and remove it from the cylinder. If the lever is not
seated properly, you will not be able to rotate the key back to the horizontal position.
Need to remove the outside lever? Turn the key 45°, press the installation tool into the small
hole on the side of the lever. This will depress the lever catch. Then pull the lever and cylinder off
the shank.
45°
CYLINDER
shank
5
Lever
Cylinder
Bible
KEY
Cylinder
Cylinder
Tailpiece
Retainer
lever removal
hole
