4

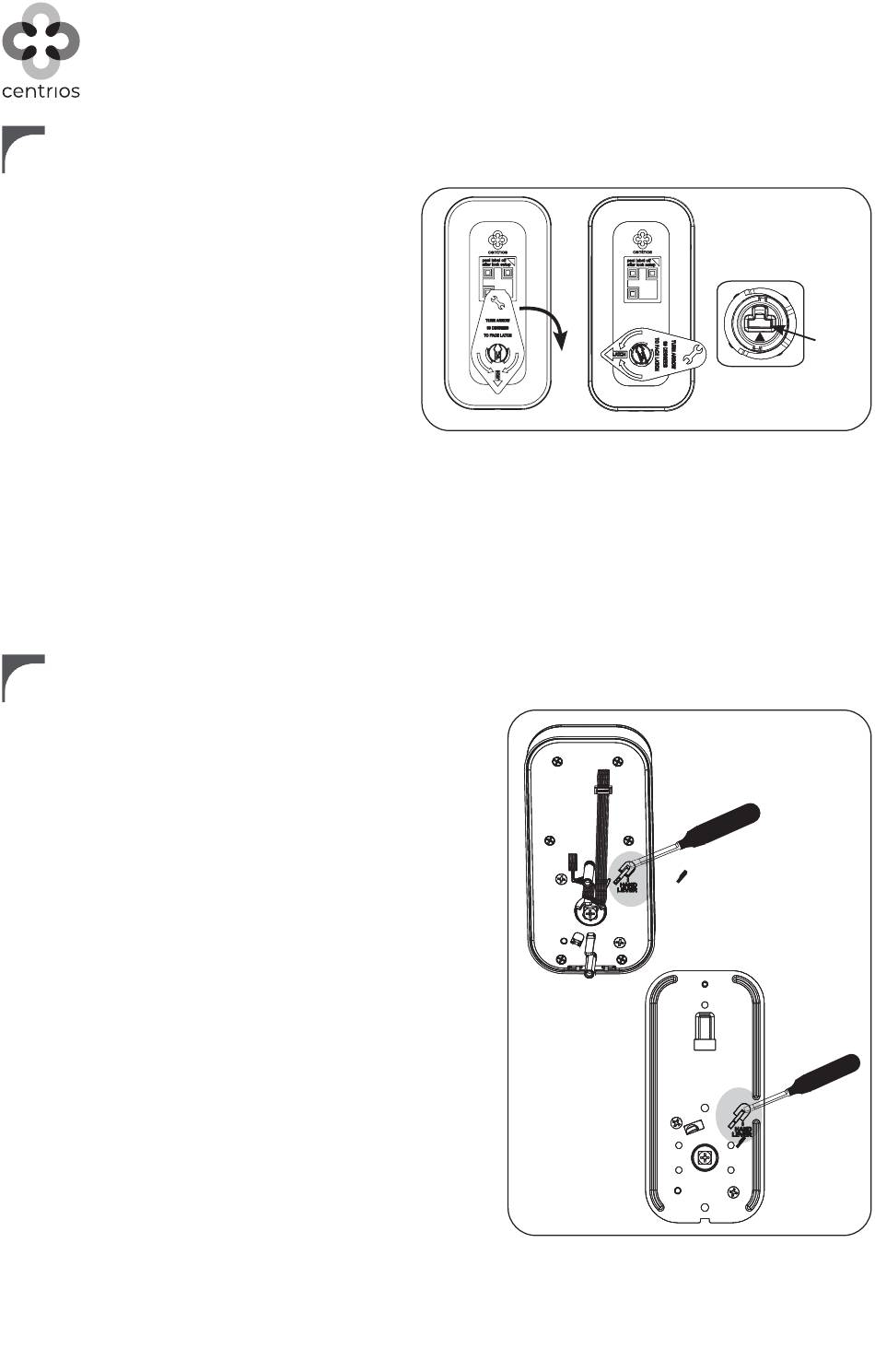

Set up the exterior escutcheon
IMPORTANT: DO NOT remove the QR
code label on the exterior escutcheon
until the lock is completely installed, set
up, and functioning.
We're now going to make sure your
escutcheon is set up correctly. Do this
procedure before you put the escutcheon
on the door. It's easy to do in the palm of
your hand.
The escutcheon has a temporary
cardboard tool fitted. Holding the
escutcheon up to the outside face of the door, rotate the cardboard tool 90° so that the printed
arrow points towards the latch. It will click into place. You can now remove the cardboard tools.
Be sure to save the blue tool for a later step.
IMPORTANT: the blue plastic 'UP' indicator piece may rotate when you turn the cardboard tool.
Make sure the blue arrow is always pointing up after you rotate the cardboard tool.
4a Need to reset escutcheon or mounting plate?
If you set up the exterior escutcheon or interior
mounting plate with the cardboard tool pointing in
the wrong direction, here's how you change it:
If the escutcheon or mounting plate is installed on
the door, remove it from the door.
If the lever and cylinder are installed, remove them
from the escutcheon/mounting plate (step 5).
Replace the cardboard tool on the escutcheon or
mounting plate if necessary.
For the outside escutcheon, use the blue plastic
tool to re-set the cylinder cam from step 4 to the
up position prior to re-handing.
On the back of the escutcheon or mounting plate
use a flat bladed screwdriver to push the tab
labeled HAND LEVER down.
You should now be able to rotate the cardboard
tool in the correct direction so that it points to the
latch side of the door.
Interior
Mounting Plate
(Back View)
4
Remove cardboard
tools.
Save blue tool for
later step.
cam
Cylinder Cam
(correct position)
Exterior
Escutcheon
(Back View)
