User Guide | Testing and startup guide, type AK-PC 782B

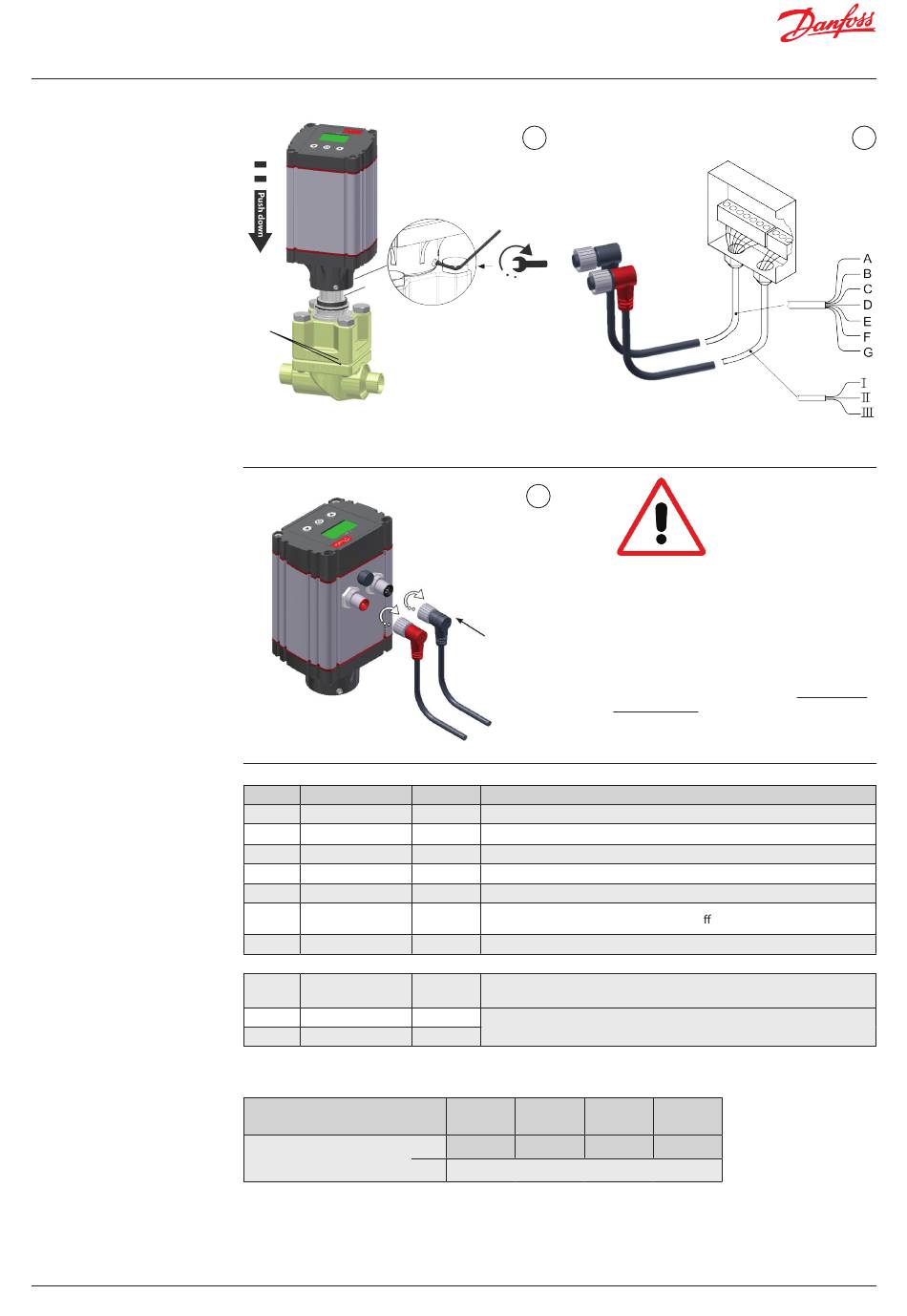

9. ICAD 600A/1200A quick
start
© Danfoss | Climate Solutions | 2024.02
Grease
Note!
Cross tighten all 3 screws to ensure equal tightening.
Max 3 Nm torque.
Ref. Colour
A Black
B Brown
C Red
D Orange
E Yellow
F Green
G Blue
I Black
II White
III Brown
* Uninterruptable Power Supply
Prefabricated ICAD cable length
Code number
Voltage ICAD terminal
(600A/1200A) [V DC]
* Do not measure inside the ICAD itself
1
3
Description
– Common Alarm
– ICM fully open
– ICM fully closed
– GND ground
+ 0/4 – 20 mA Input
+ 0/2 – 10 V input or digital input for on/o control
+ 0/4 – 20 mA Output
Fail safe supply
+
Battery / UPS* 19 V DC
+
Supply voltage
24 V DC
–
1.5 m 3 m
027H0426 027H0438
Min. 21 22
Max. 26.4
Terminal box -
not supplied
by Danfoss
24 Volt DC
ONLY
Please observe cable voltage drop
Distance between the applied DC trans-
former and the ICAD terminal box may
cause
a voltage drop. Cross section of cables and
size of DC transformer must be calculated
so that the voltage at all time at the ICAD
terminal box*, both during standstill and
during operation of ICAD, is within this
range:
10 m 15 m
027H0427 027H0435
23 24
