User Guide | Testing and startup guide, type AK-PC 782B
4. AK-PC 782B analog input
con guration
© Danfoss | Climate Solutions | 2024.02

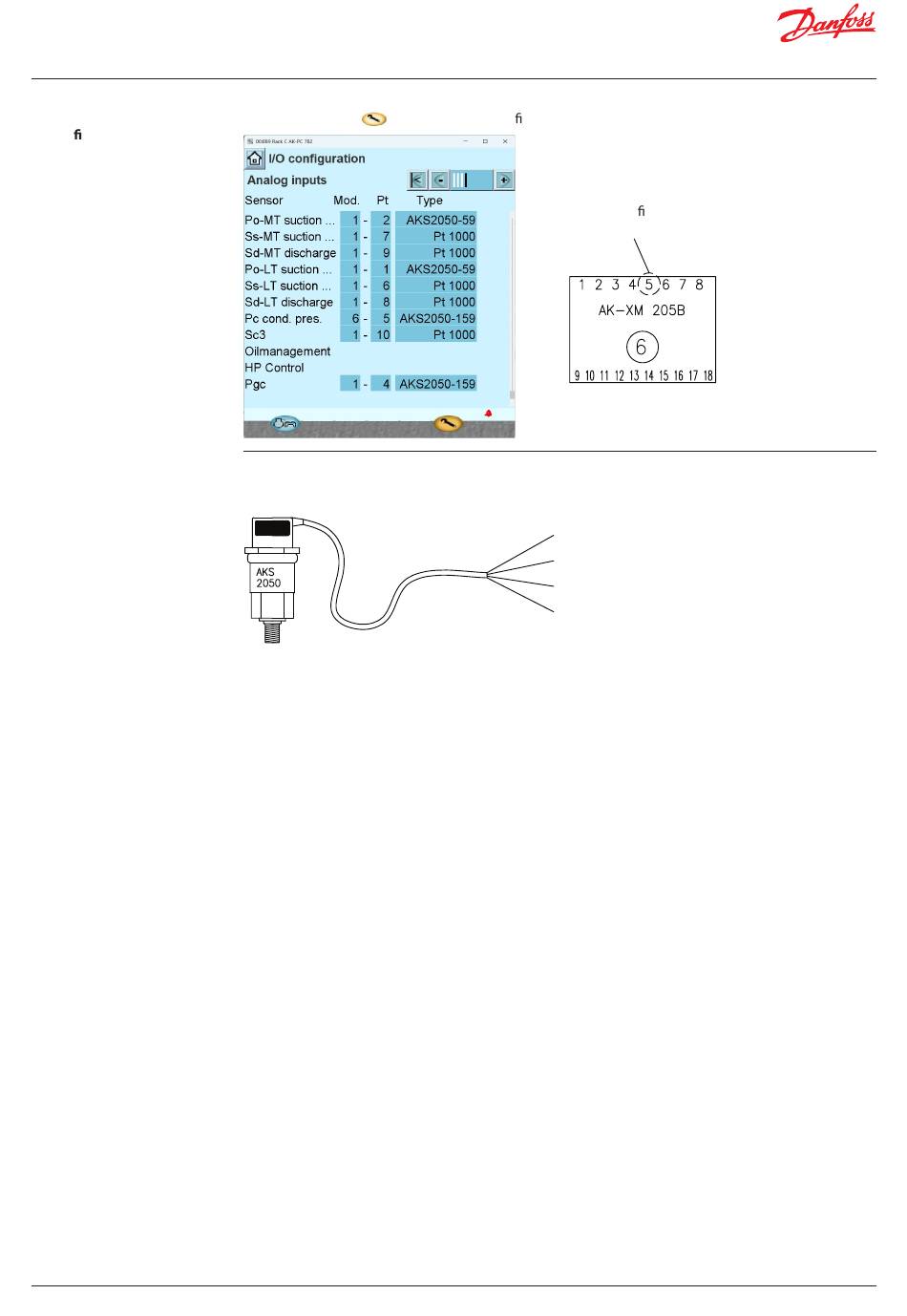

Open ST500, press , then select "I/O con guration"
If MOD/PT assignments are accurate, verify sensor wiring
Transducers should be AKS2050-59 or AKS2050-159 only
Danfoss temperature sensors are not polarity sensitive
one wire to input (–), the other wire to input (+)
Example: "Pc cond. pres." assigned module #6,
point #5 using the layout from page 2.
We should nd the transducer landed at this
location on the middle row of modules
PIN 1 = Black (+5 V power)
PIN 2 = Blue (–Common @input)
PIN 3 = Brown (+Signal @input)
PIN 4 = Yellow/Green (GND)
