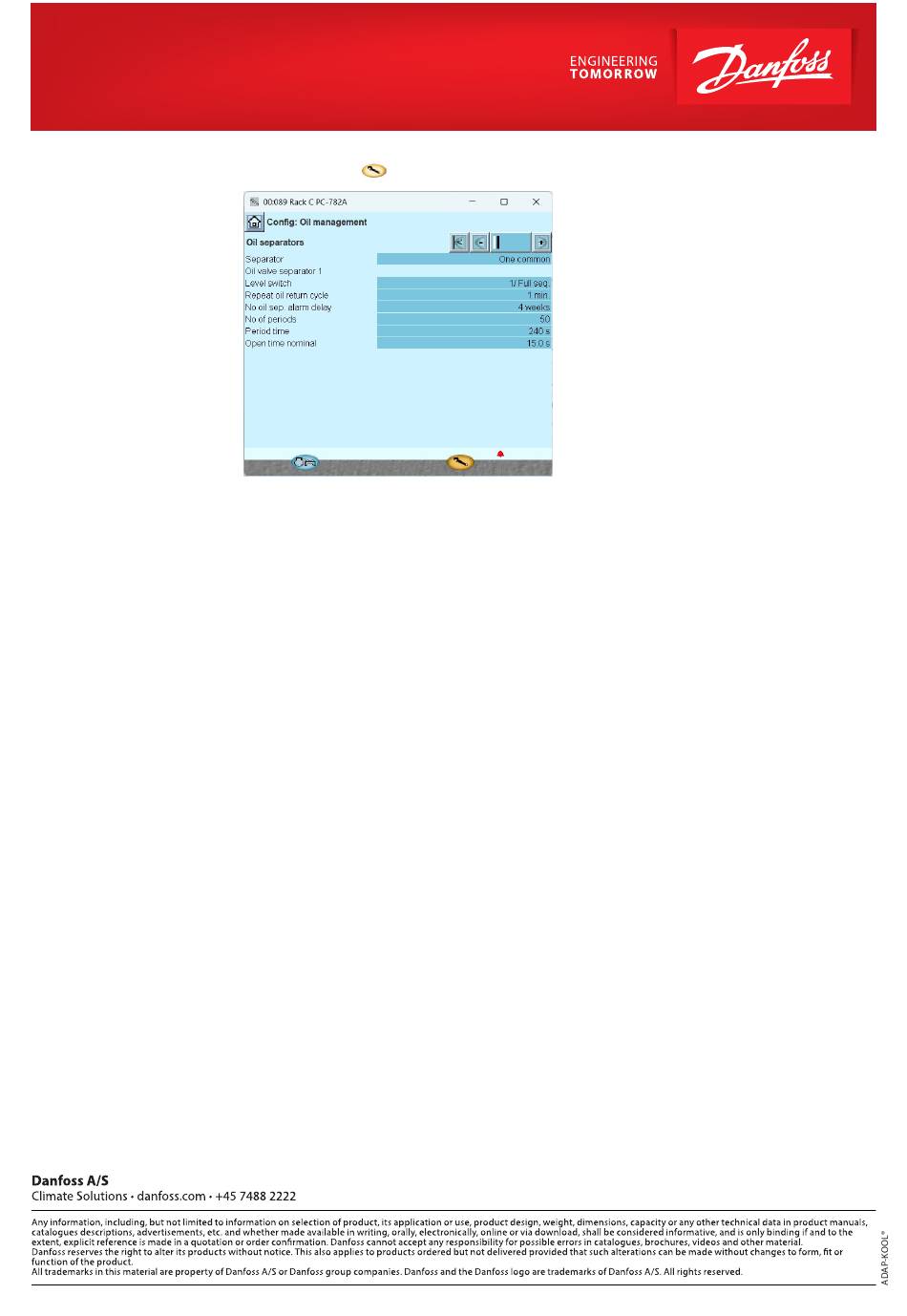

Open ST500, press , then select "Oil management". Press the "+" icon to move to next page
Separator = select the number of oil reservoirs
Level switch = 1 /Full seq. is used for both none and only High. Low & high is selected on systems with
both a high and low level switch on the oil reservoir.
Repeat oil return cycle = time between emptying sequences
No oil sep. alarm delay = alarm delay if high-level never activates
No of periods = times oil pulse valve should open during emptying sequence
Period time = time between valve openings
Open time nominal = time valve is open during the period
Example: based on the settings above, when the emptying sequence starts it will pulse the oil
reservoir dump valve for 15 seconds every four minutes.
