User Guide | Testing and startup guide, type AK-PC 782B
7. AK-PC 782B output input
veri cation
© Danfoss | Climate Solutions | 2024.02

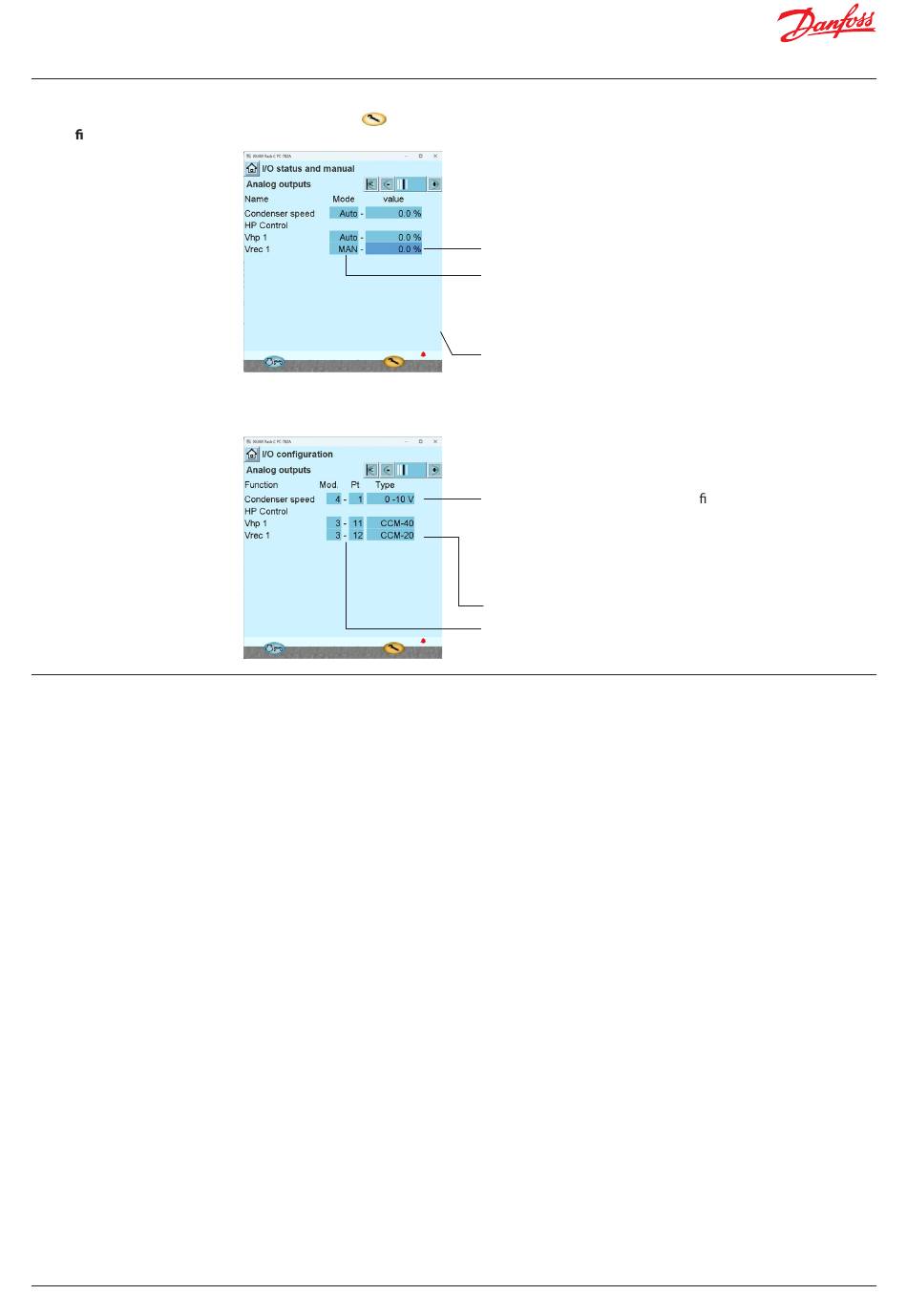

Open ST500, press , then select "I/O status and manual". Press the "+" icon to move to "analog
outputs" page
If issues are present, verify MOD/PT assignments and "Type" selection.
The status of each analog output is shown in the value column.
Toggle mode from Auto to MAN and set a manual valve
percentage to verify operation.
Note: change mode back to auto for normal operation
(Manual overrides stay forever).
Be sure to scroll down the page to verify all "Active at"
selections.
Analog voltage outputs can be de ned as either
0 – 5 V
1 – 5 V
0 – 10 V
10 – 0 V
5 – 0 V
Select valve model listed on the valve name plate
Verify MOD/PT assignments in the same fashion as described
on pages 3 & 4.
