Installation Instructions

Remote Mounting of LCP
®
VLT
HVAC Drive FC 102
Items Supplied
LCP cables with 2 M12 connectors (90° male connector and straight female connector). Cable lengths: 3 m, 5 m, and 10 m
(10 ft, 16 ft, 33 ft). See also Table 1.1.
Blind cover with M12 female connector.
Base plate with D-sub connector and M12 male connector.
Two gaskets and 1 nut for the D-sub connector.
Intermediate cover with the front cover.
Disassembly tool.
Length [m (ft)]
3 (10)
5 (16)
10 (33)
Table 1.1 Cable Ordering Numbers
More Items Required

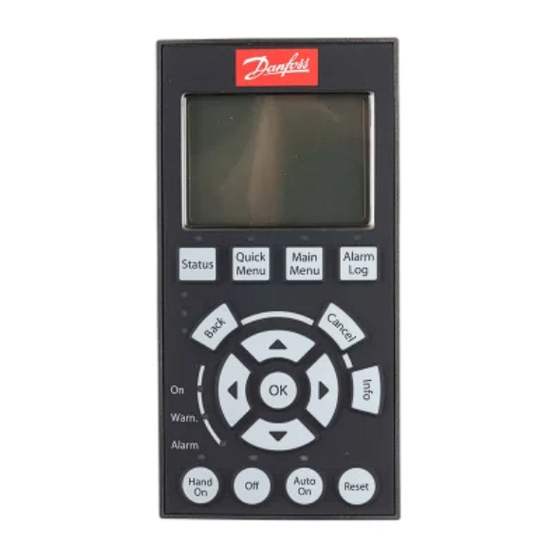

Local control panel (LCP).
Four M4 self-tapping screws for mounting.
This instruction is valid for frequency converters that were ordered with the LCP. Front covers of frequency converters that
were ordered without LCPs do not have holes for mounting the blind covers.

Safety Instructions

For important information about safety precautions for installation, refer to the product-specific operating guide.
WARNING
DISCHARGE TIME
The frequency converter contains DC-link capacitors, which can remain charged even when the frequency converter is not
powered. High voltage can be present even when the warning LED indicator lights are off. Failure to wait the specified time
after power has been removed before performing service or repair work can result in death or serious injury.
Stop the motor.
Disconnect AC mains and remote DC-link power supplies, including battery back-ups, UPS, and DC-link connections to
other frequency converters.
Disconnect or lock PM motor.
Wait for the capacitors to discharge fully. The minimum duration of waiting time is specified in .
Before performing any service or repair work, use an appropriate voltage measuring device to make sure that the
capacitors are fully discharged.
Ordering number
134B5223
134B5224
134B5225
Danfoss A/S © 11/2017 All rights reserved.
MI05A202
