Danfoss VLT LCP 11 Installation Instructions

Installation Instructions

VLT LCP Remote Mounting Kit
IP55 rated remote mounting kit for mounting of VLT Control
Panel of type LCP 11, LCP 12 and LCP 21.
Items supplied
•
Sealing gasket
•
Mounting bracket
•
Mounting screws
•
Cable (3 m)
Mounting
1. Fit the sealing gasket on the LCP.

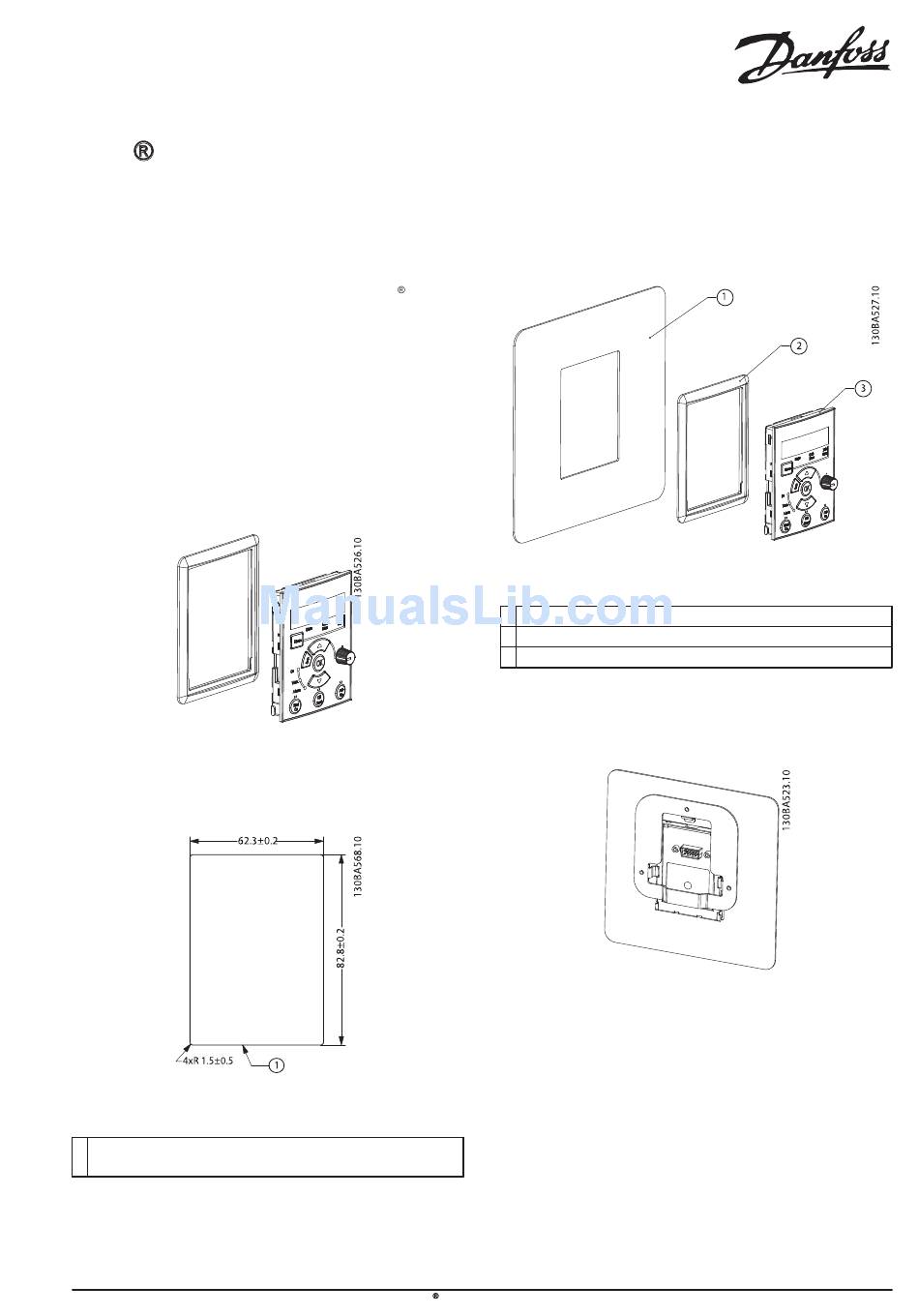

Illustration 1.1 Example: Gasket on LCP
2. Cut out section of panel and locate the LCP in the
cut-out.
Illustration 1.2 Dimensions
1 Panel cut out
Panel thickness: 1-3 mm
Table 1.1 Legend to Illustration 1.2
Illustration 1.3 Example: LCP on Mounting Plate
1 Mounting plate
2 Gasket
3 LCP
Table 1.2 Legend to Illustration 1.3
3.
Illustration 1.4 Mounting Bracket on LCP
MI02C202 - VLT is a registered Danfoss trademark
Slide the mounting bracket into place on the
backside of the LCP and fasten it with screws.
