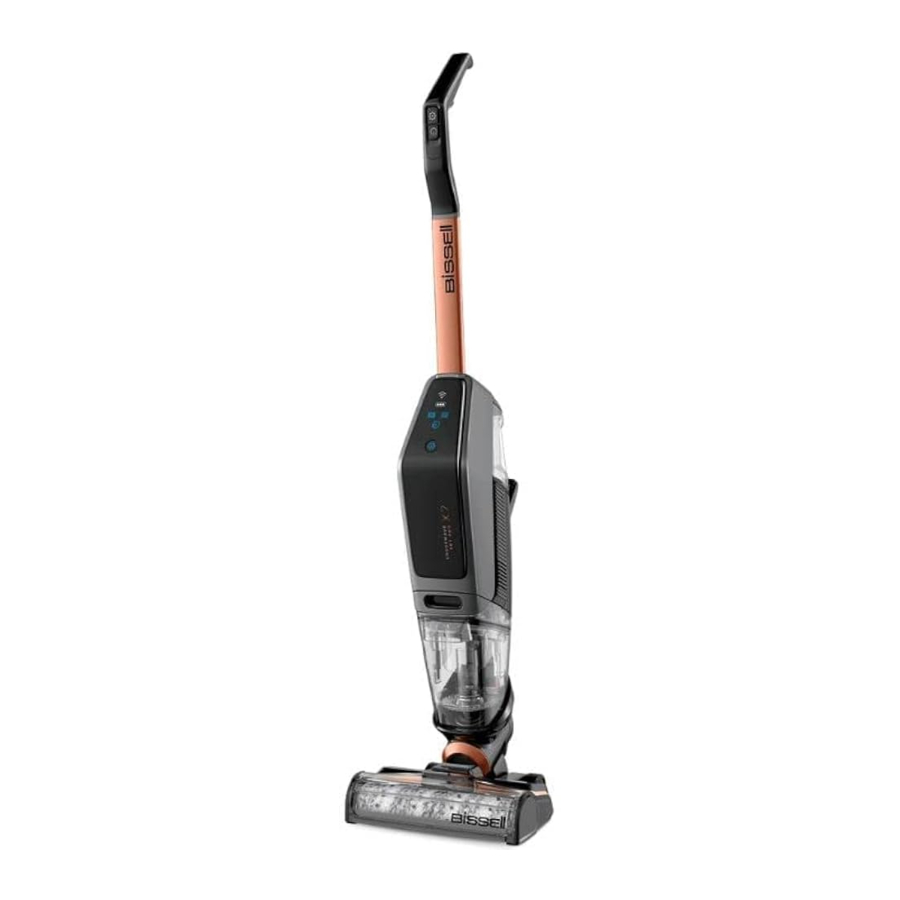

Bissell CrossWave X7, 3277 Series Manual

What's in the Box?

Standard accessories may vary by model. To identify what should be included with your purchase, please refer to the "Carton Contents" list located on the carton top flap.

Handle & Body	3-in-1 Docking Station	Charging Adapter Plug	(4) Trial-Size Formulas	Replacement Filter
(2) PET Multi- Surface Brush Rolls	Wood Floor Brush Roll	Multi-Surface Brush Roll	Clean Out Brush

Product View

For additional support videos and information, visit support. BISSELL.com.

Product View

1. Upper Handle
2. Mode Button
3. Power Button
4. Solution Spray Trigger
5. Clean Out Cycle Button
6. Clean Water Tank
7. Carry Handle
8. Dirty Water Tank Release Button
9. Dirty Water Tank
10. Strainer (inside tank)
11. Easy-Remove Brush Roll Window Button
12. Brush Roll Window

Digital Display

1. WiFi Connection
2. Battery Indicator
3. Area Rug Mode
4. Hard Floor Mode
5. Error Indicator
6. TURBO PET™ Mode
7. Fan Error Indicator
8. Clean Water Tank Empty
9. Clean Out Cycle
10. Dirty Water Tank Full

Connecting to the BISSELL Connect App

For more help, visit support.BISSELL.com.

Downloading the BISSELL Connect App lets you track filter, brush roll and formula life, access usage tips, cleaning history, how-to videos, and set up automatic reordering.

1. In the App or Google Play Store search "BISSELL Connect" and download.	2. Once downloaded, open the app to sign in or create a new login.	3. Make sure you are near a WiFi router and your machine is charged or on the 3-in-1 Docking Station prior to pairing.
4. Select CrossWave®.	5. The QR code needed for setup can be found behind the clean water tank.	6. Follow the instructions in the app to scan the QR code and pair your machine.

WiFi Reset

To remove the currently connected WiFi data, press and hold the mode button for 25 seconds until you hear a sound and the WiFi icon blinks 2 times.

WiFi Disable

Note: When WiFi is disconnected, your machine will not sync with the app to deliver cleaning data and reminders.

To disable the WiFi connection, press and hold the mode button for 45 seconds until you hear a sound and the WiFi icon blinks 3 times. To resume WiFi connection, press and hold the mode button for 45 seconds until you hear a sound and the WiFi icon blinks 3 times.

Assembly

Go to support. BISSELL.com for assembly videos.

1. Firmly insert the handle into body of machine.	2. When the handle is inserted correctly, a button will appear behind the clean tank.

Charging the Battery

Go to support. BISSELL.com to watch helpful how-to videos.

Make sure machine is fully charged before first use. To check the battery status, remove the machine from the dock and press the power button to turn it ON. You'll know the battery is fully charged when all three white status lights are illuminated.

1. Plug the charging cord into the bottom of the 3-in1 Docking Station. Plug the adapter into a wall outlet.	2. Place your machine onto the dock. The battery life indicator will illuminate when charging.	3. For maximum run time, charge the machine for 4 hours.

Choosing Your Brush Roll & Formula

View our family of formulas for your family of mess-makers at BISSELL.com.

Keep plenty of CrossWave® formulas on hand so you can clean whenever it fits your schedule.

Note: Only use CrossWave formulas in your machine. Other formulas or household cleaners may harm the machine. Do not use hard floor formula on area rugs or carpet.

Multiple Surfaces	Wood Floors	Area Rugs
Multi-Surface Formula Great for cleaning all sealed hard floors and refreshing area rugs. Multi-Surface Brush Roll Microfibers mop and nylon bristles help remove tough, sticky messes while picking up dry debris.	Wood Floor Formula Restores your wood floors' natural shine. Wood Floor Brush Roll Soft-touch microfibers wash sealed hardwood floors while picking up dry debris.	Area Rug Formula Removes stuck-on and embedded dirt from area rugs. Area Rug Brush Roll Bristles work on area rugs to pick up dry debris and pet hair.
Homes with Pets	Hard Floors	Sensitive Floors
PET Multi-Surface with Febreze Formula Removes pet odors to clean sealed hard floors and refresh area rugs. PET Multi-Surface Brush Roll Microfibers mop and nylon bristles help remove tough, sticky messes while picking up dry debris and pet hair.	Hard Floor Sanitize Cleans and sanitizes, eliminates 99.9% of bacteria.* Multi-Surface Brush Roll Microfibers mop and nylon bristles help remove tough, sticky messes while picking up dry debris.	PET Clean + Natural Multi Surface Effective, plant-based cleaning formula to eliminate pet odors Multi-Surface Brush Roll Microfibers mop and nylon bristles help remove tough, sticky messes while picking up dry debris.

*Kills 99.9% of Enterobacter aerogenes (ATCC 13408) and Staphylococcus aureus (ATCC 6538)

To reduce the risk of fire and electric shock due to internal component damage, use only BISSELL cleaning formula intended for use with the hard floor device.

Filling the Clean Water Tank

Go to support. BISSELL.com to watch additional how-to videos.

1. The clean water tank is located on the back of the machine. Pull the tank up to remove.	2. Open the cap on top of the tank.	3. Choose the best BISSELL® formula and brush roll for your needs using the chart.
4. Fill with hot (140°F/60°C MAX) tap water to the WATER FILL line. Do not use boiling water. Do not heat water in the microwave.	5. Add formula to the FORMULA FILL line.	6. Close the cap. Slide the tank back into place.
Cleaning Your Floors We have cleaning tips for stuck-on messes and more at support. BISSELL.com.
1. Press the power button ON. Press the mode button to switch between modes.	2. Recline to start the brush roll spinning. Brush roll will not spin when machine is upright.	3. Before each use, hold the solution spray trigger for 10 seconds to prime the system with solution. LED lights are always illuminated, but turn blue when the trigger is held. Bubbles will appear in brush roll window when solution is flowing.
4. Hold the solution spray trigger to apply solution on forward and backward passes.	5. Release the trigger and make a backward pass without dispensing solution. To dry floors faster, make additional dry passes.	6. Turn OFF the machine by pressing the power button.

Cleaning Modes

Emptying the Dirty Water Tank

Go to support. BISSELL.com for a full list of how-to videos.

1. Press the button on the top of tank and grab the front handle and pull tank out.	2. Hold the top of the tank near the sides of the filter and pull up to remove.	3. Pull strainer tab out of the tank to separate debris from dirty water.
4. Throw debris into the trash.	5. Pour dirty water down the sink and rinse the tank.

Clean Out Cycle

Go to support. BISSELL.com for a full list of how-to videos

Note: For best results, run the Clean Out Cycle no more than two times after each cleaning session.

1. Place the machine on the 3-in-1 Docking Station.	2. Empty dirty water tank prior to starting the cycle.	3. Make sure water reaches the Clean Out Cycle line. Refill if needed.
4. Push the Clean Out Cycle Button to start the 40-second cycle.	5. For easy drying, press the button on top of the foot to release the window. Rest the window on the dock.	6. Remove the machine from the dock and wipe out the tray. Do NOT rinse under faucet. This keeps water out of the charging plug.

To reduce the risk of fire, electric shock or injury, turn power OFF and disconnect plug from electrical outlet before performing maintenance or troubleshooting on the dock.

After-Cleaning Care

Go to support. BISSELL.com for a full list of how-to videos.

The filter must be cleaned and dried after every use to maximize suction and performance. Replace the filter every 3 months.

1. Press the button on the top of the foot to release the brush roll window.	2. Pull the brush roll tab to remove.	3. Use the Clean Out Brush hook to remove hair wrap.
4. The brush and window can be hand washed.	5. Remove and empty the dirty water tank.	6. Use the Clean Out Brush to clean the dirty water tank.
7. Remove filter from the top of the tank by pulling it up.	8. Wash filter and screen with warm water and mild detergent. Rinse the bottom of the tank cover.	9. Leave all parts out to dry before reassembling.
10. Clean along the inside of the foot and suction hose with the brush.	11. Place the end of the brush into the right side of the foot.	12. Press the tab of the brush down so it locks into place.
13. Replace the brush roll window by lining up tabs on the edges of the foot.	14. Press the window back so it clicks into place.	15. Reassemble the dirty water tank.
16. Insert the bottom of the tank first. Pivot the top toward the machine until it clicks into place.	17. Wipe the dock with a cloth. Do NOT rinse under faucet. This keeps water out of the charging plug.	18. Wipe the gold charging contacts with a cloth.

Storing Your Machine

Go to support. BISSELL.com for more useful tips on storing and maintaining your machine.

Store your machine in a protected, dry area. Since this product uses water, it must not be stored where there is danger of freezing. Freezing will damage internal components and may void the warranty.

Connection Issues

Note: CrossWave® X7 can only connect to 2.4GHz networks. 5GHz is not supported.

Machine Issues

Note: Any other servicing should be performed by an authorized service representative.

But wait, there's more!
Join us online for a comprehensive walkthrough of your new product, including troubleshooting, product registration, parts, and more.
Go to support.BISSELL.com.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING YOUR APPLIANCE. When using an electrical appliance, basic precautions should be observed, including the following:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

• Use indoors only.
• Do not immerse. Use only on surfaces moistened by cleaning process.
• Use only cleaning products intended for use with this appliance to prevent internal component damage. See the "Choosing Your Brush Roll & Formula" section of this guide.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Do not use for any purpose other than described in this user guide. Use only manufacturer's recommended attachments.
• Do not charge with damaged charger or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors or dropped into water, have it repaired by a qualified technician.
• Do not pull or carry charger by cord, use cord as a handle, close door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord, docking station or charger away from heated surfaces.
• Do not unplug charger by pulling on cord. To unplug, grasp the charger plug, not the cord.
• Do not handle charger, charger plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep openings free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Turn OFF all controls before plugging or unplugging charger.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible materials (lighter fluid, gasoline, kerosene, etc.) or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
• Do not use without filters in place.
• Risk of injury from moving parts. Brush may start unexpectedly. Turn OFF before cleaning or servicing.
• Turn OFF all controls, including the power switch and disconnect charger from electrical outlet before making any adjustments, performing maintenance, troubleshooting, changing accessories, or storing appliance. Such preventative safety measures reduce the risk of starting the appliance accidentally.
• Recharge appliance only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use only with charger Mass Power Electronic Ltd., model S030-1B295085HU.
• Battery pack, charging port on the appliance and charger output are not to be short-circuited.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
• Do not use appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
• Do not expose battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130°C/265°F may cause explosion.
• Follow all charging instructions and do not charge the appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
• Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
• Do not modify or attempt to repair the appliance except as indicated in the instructions for use or care.
• Unplug charger from electrical socket when not in use, before cleaning maintaining or servicing the appliance.
• Keep the temperature range of between 4-40°C/40-104°F when charging battery, storing appliance or during use.
• Do not charge the machine outdoors.
• Do not turn your appliance ON until you are familiar with all instructions and operating procedures.
• This appliance contains batteries that are non-replaceable.
• Do not incinerate the appliance even if it is severely damaged. The batteries can explode in a fire.
• The battery must be removed from the appliance before it is scrapped.
• Keep appliance on a level surface.
• Do not carry the vacuum cleaner while it in use.
• Do not use appliance in an enclosed space filled with vapors given off by oil-based paint, paint thinner, some moth-proofing substances, flammable dust, or other explosive or toxic vapors.
• Do not use to pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).
• Do not pick up hard or sharp objects such as glass, nails, screws, coins, etc.
• Plastic film can be dangerous. To avoid danger of suffocation, keep away from children.
• Liquid must not be directed towards equipment containing electrical components.
• This product contains Lithium-Ion rechargeable batteries. DO NOT mix Lithium-Ion batteries with general household waste. According to Federal and State regulations, removal and proper disposal of Lithium-Ion batteries is required. For specific battery disposal instructions please contact Call2Recycle at 877-723-1297 or visit www.call2recycle.org. For full instructions on battery removal for recycling visit support.BISSELL.com.

• Keep appliance on a level surface.
• If your appliance has a motorized brush roll, do not leave machine running in the same spot without the handle fully upright.
• Do not store where freezing may occur.
• The software included in this product contains open source software. The open source licenses associated with this project may be obtained by visiting BISSELL.com/opensource.

SAVE THESE INSTRUCTIONS
This model is for household use only. Commercial use of this appliance voids the manufacturer's warranty.
