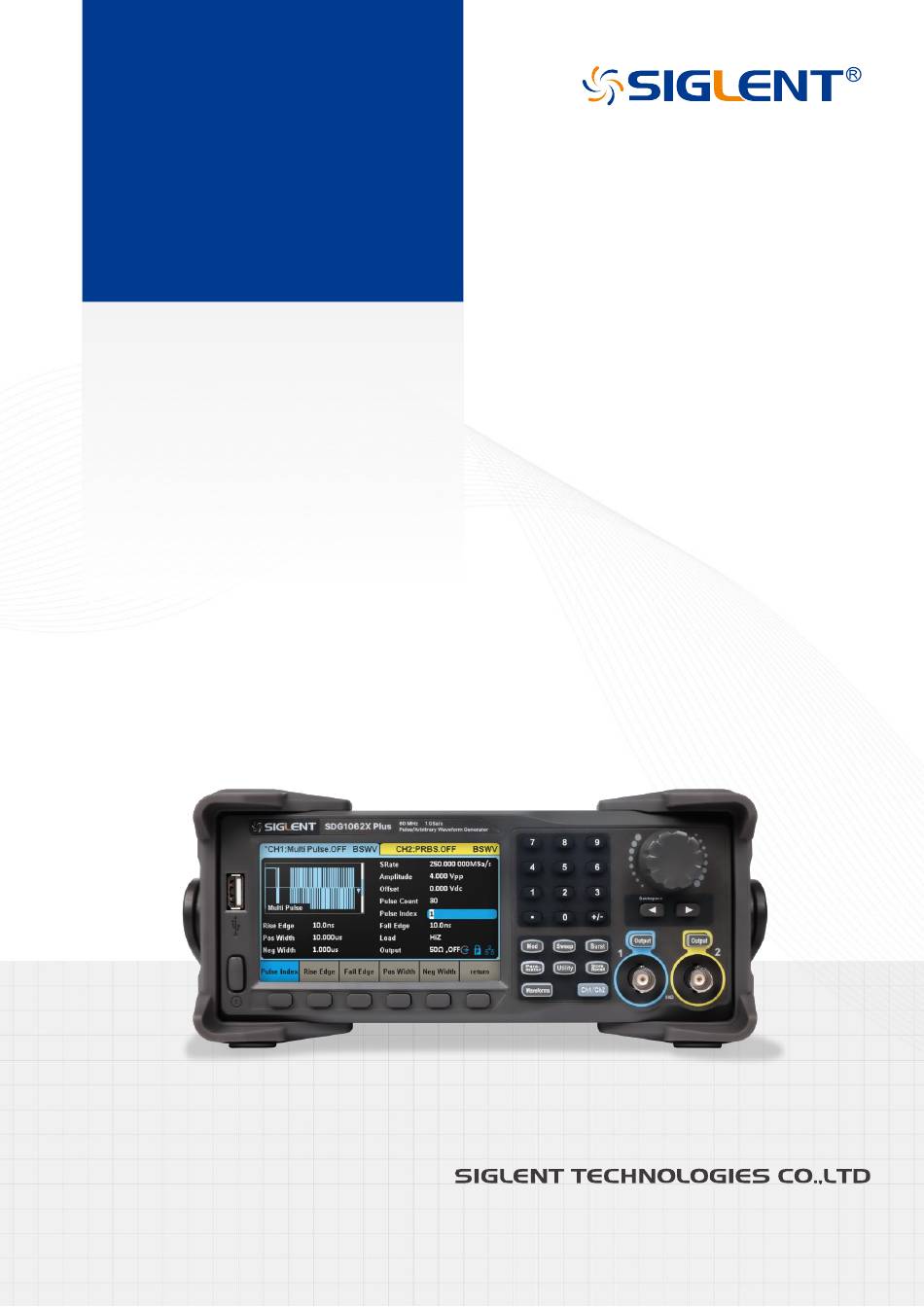

- Page 1 SDG1000X Plus Arbitrary Waveform Generator Quick Start EN01A...
-
Page 3: Copyright Information
Information in this publication replaces all previously corresponding material. Any method of copying, extracting, or translating the contents of this manual is not allowed without the permission of SIGLENT. Note: SIGLENT is the registered trademark of SIGLENT TECHNOLOGIES CO., LTD. SDG1000X Plus Quick Start... -
Page 4: Table Of Contents
Sicherheitsbegriffe und Symbole ................... 8 General Care and Cleaning ....................9 General Inspection ........................ 9 First steps ..........................10 Preparation before Use ....................... 11 Panel Introduction ........................ 12 User Interface ........................16 Basic Operations ......................... 17 Troubleshooting ........................28 SDG1000X Plus Quick Start... -
Page 5: General Safety Summary
Contact the manufacturer or the maintenance department designated by the manufacturer to carry out maintenance to avoid the wrong test data caused by the use of the fault or endanger the personal safety. Do Not Operate with Suspected Failures. SDG1000X Plus Quick Start... - Page 6 If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. Any parts of the device and its accessories are not allowed to be changed or replaced, other than authorized by the manufacturer or agent. SDG1000X Plus Quick Start...
-
Page 7: Safety Terms And Symbols
Indicates potential injury or hazards that may happen. CAUTION Indicates potential damage to the instrument or other property that may happen. Symbols used in this product. These symbols may appear on the product: Hazardous Warning Protective Earth Ground Power Switch Voltage Earth Ground SDG1000X Plus Quick Start... -
Page 8: Allgemeine Sicherheitsübersicht
Sorgen Sie daher für eine gute Belüftung und überprüfen Sie regelmäßig die Ansaugung und den Lüfter. Vermeiden Sie freiliegende Schaltkreise oder Komponenten Berühren Sie keine freiliegenden Kontakte oder Bauteile, wenn das Gerät eingeschaltet ist. Richtige Sicherung verwenden Verwenden Sie nur die angegebene Sicherung. SDG1000X Plus Quick Start... - Page 9 Das Gerät darf nicht so positioniert werden, dass es schwierig ist, die Trennvorrichtung (abnehmbarer Stecker) zu bedienen. Wenn das Gerät auf eine Weise verwendet wird, die nicht vom Hersteller angegeben ist, kann der Schutz, den das Gerät bietet, beeinträchtigt warden. SDG1000X Plus Quick Start...
-
Page 10: Sicherheitsbegriffe Und Symbole
Protective Warning Terminal Ground Power Switch Voltage Earth Ground Wenn Sie solche Symbole auf dem Produkt finden, ziehen Sie das Handbuch zu Rate, um die Art der potenziellen Gefahr und die zu ergreifenden Maßnahmen zu erfahren SDG1000X Plus Quick Start... -
Page 11: General Care And Cleaning
If there are instruments found damaged, defective, or have failed any electrical and / or mechanical tests, please contact SIGLENT. Check the accessories Please check the accessories according to the packing list. If the accessories are incomplete or damaged, please contact your SIGLENT sales representative. SDG1000X Plus Quick Start... -
Page 12: First Steps
We provide various services on the basis of maintenance agreements. We offer extended warranties as well as installation, training, enhancement and on-site maintenance and other services through specialized supplementary support agreements. For details, please consult your local SIGLENT customer service center or distributor. SDG1000X Plus Quick Start... -
Page 13: Preparation Before Use
Carrying Position Adjust the Handle Connecting to Power Supply The standard power supply for the instrument is 100~240 V, 50/60 Hz. Please use the power cord provided with the instrument to connect it to AC power. SDG1000X Plus Quick Start... -
Page 14: Panel Introduction
This key is used to turn on/off the AWG. When the power key is off, the AWG is in the power off state. USB Host SDG1000X Plus supports U-Disk using FAT format. It’s used to read waveforms or state files from a U-Disk or store the current state of the instrument to the U-Disk. Users can update the firmware through U-Disk. - Page 15 3.2Vpp and the DC offset is lower than |2VDC|. Choose Utility → Page 1/3 → OverVoltage Protection to turn on/off the function. Channel Select Key This key is used to switch the current selected channel between CH1 and CH2. SDG1000X Plus Quick Start...
-
Page 16: The Rear Panel
BNC connector. The instrument uses external clock source, the connector accepts an external 10MHz clock source. Earth Terminal Used to ground the instrument. AC Power Supply Input SDG1000X Plus can accept two different types of AC input power. AC power: 100-240V, 50/60Hz or 100-120V, 400Hz. Fuse: 1.25A, 250V. SDG1000X Plus Quick Start... - Page 17 Through this interface, the generator can be connected to your computer or network for remote control. An integrated testing system may be built, as the generator conforms to the VXI-11 class standard of LAN- based instrument control. SDG1000X Plus Quick Start...
-
Page 18: User Interface
From left to right are the clock source prompt, phase mode prompt, and LAN connection status prompt, respectively. Menu Display the operation menu corresponding to the currently selected function, and select the corresponding function through the menu soft key. Modulation Parameters Area Display the parameters of the current channel modulation function. SDG1000X Plus Quick Start... -
Page 19: Basic Operations
Select Waveforms → Sine , and a sine wave operation menu will appear in the display area. By setting the waveform parameters of the sine wave, the corresponding waveform can be output. The parameters for setting sine waves mainly include: frequency/period, amplitude/high level, offset/low level, phase/delay. SDG1000X Plus Quick Start... - Page 20 PRBS-3~32 can be set, corresponding to lengths (2^3-1)~(2^32-1). edge Refers to a rise time of 10% to 90% and a decrease time of 90% to 10%, expressed in seconds. Setting both rising and falling edges simultaneously. SDG1000X Plus Quick Start...
- Page 21 View saved waveforms or built-in waveforms. Multi pulse setting The SDG1000X Plus has a built-in multi pulse output function, which facilitates the testing of the switching characteristics of power devices. Select Waveforms → Current Page 1/2 → Multi Pulse . The parameters for setting multi pulse waves mainly include: sampling rate, amplitude/high level, offset/low level, delay, number of pulses, rising edge, falling edge, positive pulse width, negative pulse width.
- Page 22 Set negative pulse width time. Sequence Waveform setting SDG1000X Plus can output sequence waveforms, and the sequence waveform and output sequence can be user-defined. The maximum number of total waveform points for a sequence wave is 8 Mpts. The edited sequence waveform can be stored in the instrument's internal or external memory.
- Page 23 Set waveform amplitude/high level, press the corresponding function button to HighLevel switch up and down. Offset/ Set waveform offset/low level, press the corresponding function button to switch LowLevel up and down. Save/Recall Save the current sequence wave file or load a stored sequence wave file. SDG1000X Plus Quick Start...
- Page 24 Hop Freq FSK modulation parameters. The output frequency varies between carrier frequencies �� �� - �� �� ℎ���� �� SDG1000X Plus Quick Start...
- Page 25 Scanning belongs to special frequency modulation (FM) or amplitude modulation (AM). When the frequency sweep is turned on, the carrier output frequency or amplitude can vary according to the set pattern (linear/logarithmic) and can be controlled by the trigger signal. SDG1000X Plus Quick Start...
- Page 26 (the amplitude parameters are also the same during amplitude scanning). When the scanning direction is "up and down", set the symmetry of the modulated triangular wave. SDG1000X Plus Quick Start...
- Page 27 Burst Counter Set the number of burst cycles output when the trigger source is external and manual under N cycles. Polarity Set the pulse train to output waveform when the gate control signal is "positive" or "negative" SDG1000X Plus Quick Start...
- Page 28 Restore the frequency meter settings to default values: Turn off the frequency meter and modify the measurement parameters to frequency, positive pulse width, reference frequency set to 10MHz, coupling mode set to AC coupling, turn off high-frequency suppression, and trigger level set to 0V. SDG1000X Plus Quick Start...
- Page 29 Save & Recall SDG1000X Plus supports storing and calling status files, waveform files, and firmware upgrade files. The storage and retrieval locations include internal memory (Local) and external USB storage devices (such as USB drives). Storage and invocation operations are implemented through a file manager.
-
Page 30: Troubleshooting
Troubleshooting If the power switch is pressed, the SDG1000X Plus series function/any waveform generator LCD screen still appears black. Please follow the following steps to handle it: Check if the power supply is powered on Check if the power switch is properly connected Restart the instrument ... - Page 32 Headquarters: SIGLENT Technologies Co., Ltd Add: Bldg No.4 & No.5, Antongda Industrial Zone, 3rd Liuxian Road, Bao'an District, Shenzhen, 518101, China Tel: + 86 755 3688 7876 Fax: + 86 755 3359 1582 Email: sales@siglent.com Website: int.siglent.com North America: SIGLENT Technologies America, Inc...
