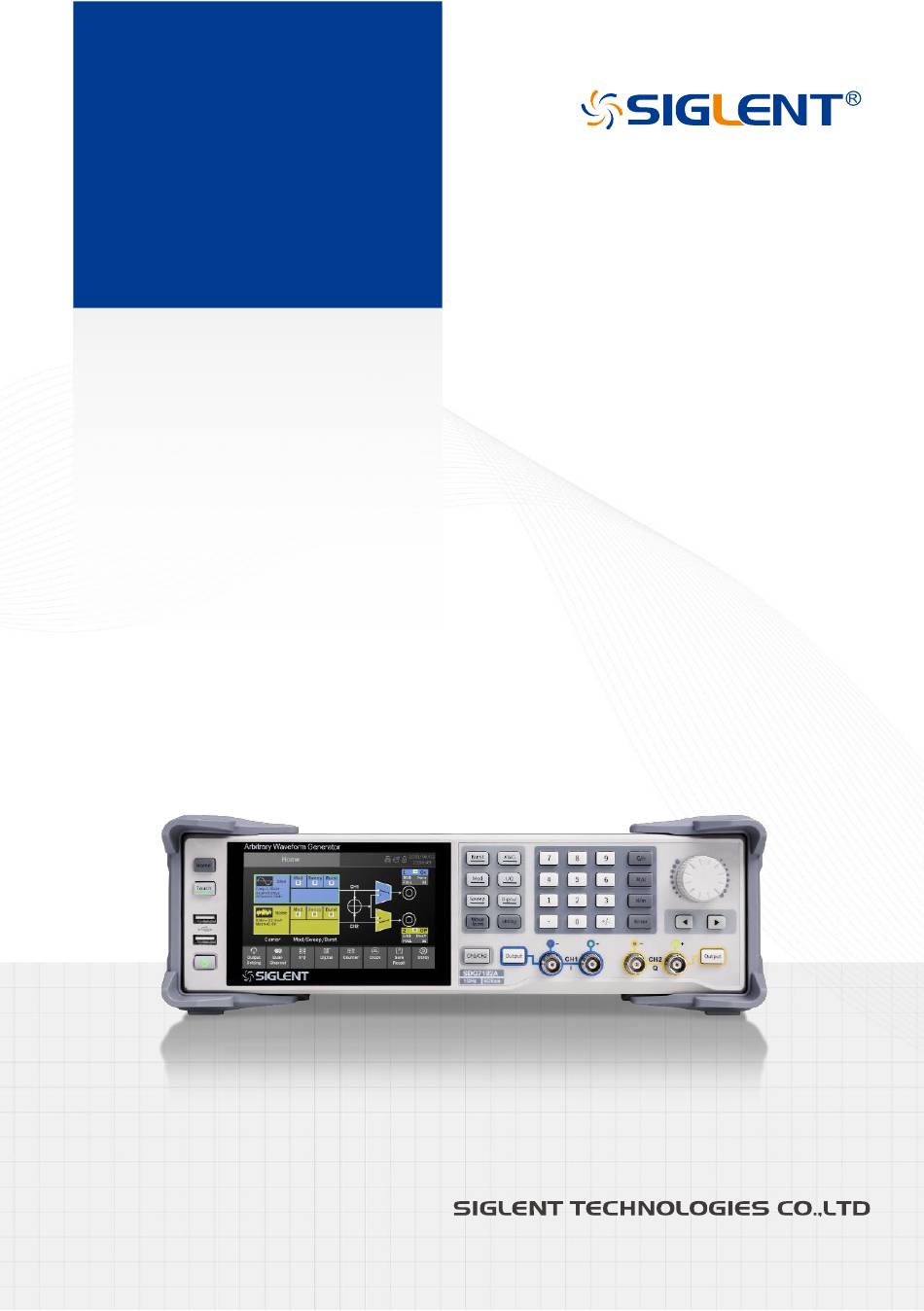

- Page 1 SDG7000A Arbitrary Waveform Generator Quick Start EN01A...
-
Page 3: Copyright And Declaration
Copyright SIGLENT TECHNOLOGIES CO., LTD. All Rights Reserved. Trademark Information SIGLENT is the registered trademark of SIGLENT TECHNOLOGIES CO., LTD. Declaration SIGLENT products are protected by patent law in and outside of P.R.C. SIGLENT reserves the right to modify or change parts of or all the specifications or pricing policies at company’s sole decision. -
Page 4: Table Of Contents
Contents COPYRIGHT AND DECLARATION ....................I GENERAL SAFETY SUMMARY ....................1 SAFETY TERMS AND SYMBOLS ....................3 MAINTENANCE AND CLEANING ....................4 FIRST STEPS ............................ 5 PREPARATION BEFORE USE ...................... 6 THE FRONT PANEL........................8 THE REAR PANEL .......................... 9 TOUCH SCREEN DISPLAY ...................... -
Page 5: General Safety Summary
In the event of an equipment failure, please do not dismantle the machine for maintenance. The equipment contains capacitors, power supply, transformers and other energy storage devices which may cause high voltage damage. The internal devices of the equipment are sensitive to static electricity and direct contact can SDG7000A Qui ck Start... - Page 6 Keep the surface of the instrument clean and dry. Only lithium batteries with the same specification could be used to replace the battery on the main board. The responsible body or operator should refer to the instruction manual to SDG7000A Quick Start...
-
Page 7: Safety Terms And Symbols
Indicates an injury or hazard that may not immediately happen CAUTION Indicates potential damage to the instrument or other property might occur Symbols used on the instrument. Hazardous Protective Warning Measurement Power Voltage Earth Ground Ground Switch SDG7000A Qui ck Start... -
Page 8: Maintenance And Cleaning
Note: To avoid damaging the instrument, do not use any corrosive reagent or cleaning reagent, and do not put it in fog, liquid or solvent. Before re-energizing, please make sure that the instrument is dry to avoid electrical short circuit or personal injury caused by moisture. SDG7000A Quick Start... -
Page 9: First Steps
We provide various services on the basis of maintenance agreements. We offer extended warranties as well as installation, training, enhancement and on-site maintenance and other services through specialized supplementary support agreements. For details, please consult your local SIGLENT customer service center or distributor. SDG7000A Qui ck Start... -
Page 10: Preparation Before Use
Before adjustment After adjustment Connecting to Power Supply The standard power supply for the instrument is 100~240 V, 50/60 Hz. Please use the power cord provided with the instrument to connect it to AC power. SDG7000A Quick Start... - Page 11 AC power input by turning off the power switch under the AC socket on the rear panel or unplugging the AC power cord from the outlet. Choosing the Language Utility > Setting > Language. System Information Utility > System Info . SDG7000A Qui ck Start...
-

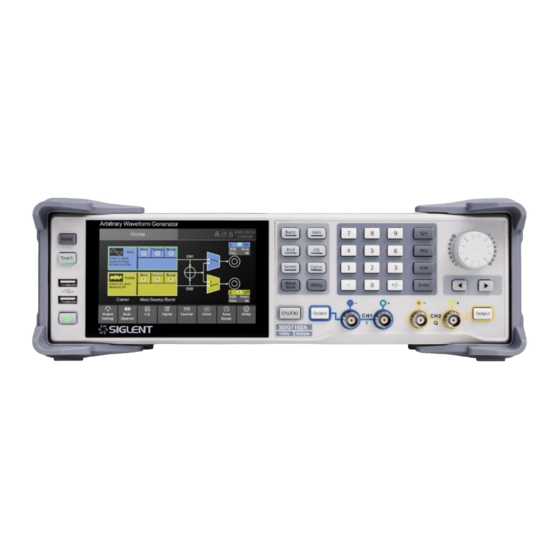

Page 12: The Front Panel
"+" and left is "-"; When the output is single- ended, it is output by the "+" port. When outputting baseband I / Q signal, CH1 is as “I” signal; When outputting IF signal, CH1 is as the IF. SDG7000A Quick Start... -
Page 13: The Rear Panel
AC Power Input input from the port; It can also be Power Switch output synchronization signal with the same signal Earth Terminal frequency and input as external modulation signal for ASK / FSK / OCXO (factory installed) PSK. SDG7000A Qui ck Start... -
Page 14: Touch Screen Display
Touch Screen Display Home Page Carrier Setting Boxes set and display parameters of the carrier. Click to enter the carrier setting page. Modulation/Sweep/Burst Setting Boxes set and display parameters of modulation/sweep/burst. Click to enter the modulation/sweep/burst setting page. Waveform Combine Setting provides schematic diagram and setting of two channel combine. - Page 15 If the parameter value is followed by an icon more detailed parameter settings. Click the icon to enter the corresponding next level page. Go to the Homepage Status Bar Displays information such as network connection status, clock status, phase mode and time/date. SDG7000A Quick Start...
- Page 16 Description of Icons in the Status Bar The network is connected. Click this icon to quickly set the LAN. No network connection. Click this icon to quickly set the LAN. USB storage device detected. The clock source is internal. Click this icon to quickly set the clock source.
-
Page 17: Front Panel Operation
Press the knob on the selected parameter box and press the ◀ ▶ button below the knob to select the digit to be adjusted, and then rotate the knob clockwise to increase the value or counterclockwise to decrease the value. SDG7000A Quick Start... - Page 18 Channel Setting Buttons Press this button to quickly switch between CH1 and CH2 parameter setting pages Press this button to switch the channel output on/off. When the channel is ON, the indicator light above the corresponding BNC connector lights up. Press this button for 2 seconds to switch the channel output load between 50Ω...
-
Page 19: Basic Operations
Offset/Low level setting The load setting: It is used to Phase/Delay setting inform the instrument of the Harmonic setting (sine wave only) accurate external load value. Output switch Modulation/Sweep/Burst setting Frequency/Period setting SDG7000A Quick Start... - Page 20 Table 1 Description of basic waveform parameters Sine/Square/Pulse/Ramp/PRBS Frequency/Period Frequency/Period of the signal. The unit of frequency is Hz and the unit of period is second. The relationship between the two is: Frequency = 1/Period Amplitude/Highlevel The amplitude/offset of the signal is linked with the high Offset/Lowlevel level/low level.
- Page 21 1) ～ (2 -1). It refers to the rise time of 10% ～ 90% and the fall time Rise/Fall of 90% ～ 10%, with the unit of second. Both rising and falling edges are set at the same time. SDG7000A Quick Start...
- Page 22 Arbitrary Waveform Setting Waveform Preview Sample Rate/Frequency setting Amplitude Setting Working Mode setting Waveform data source selection Interpolation Mode setting Sequence setting Marker output position setting S D G 7 0 0 0 A Q u i c k S t a r t...
- Page 23 0-order hold interpolation. Sequence The setting of parameters of the sequence such as waveform of segment, waveform length, amplitude, and the sequence run mode. Marker Setting Marker switch, and set the marker output corresponding waveform point position. SDG7000A Quick Start...
- Page 24 AWG mode supports multi-segment waveform output in sequence. Sequence refers to the combination of multiple arbitrary waveforms into a sequence in the form of "segment". The generation of sequence is realized through the embedded Sequence Editor. The sequence editor can combine up to 1024 segments into a waveform sequence output.
- Page 25 I/Q vector signal setting The SDG7000A can be used as a vector signal generator to provide I/Q vector signals in ASK, PSK, QAM, FSK, MSK, multitone and other modulation modes. I/Q signal source data can be generated by the software EasyIQ on the host computer, which is connected with the instrument through USB or LAN.
- Page 26 You can choose to load the built-in waveform or the saved waveform. I/Q Adjustment In baseband I/Q mode, SDG7000A provides the option of I/Q compensation to minimize the image caused by the imbalance of the two channels. I/Q compensation options include gain balance, I-channel offset, Q-channel offset and Q-angle adjustment.
- Page 27 Modulation The SDG7000A supports common analog modulation (AM/DSB-SC/FM/PM/PWM, etc.) and digital keying modulation (ASK/FSK/PSK, etc.). The modulated source can be set as internal, external and channel. Waveform Preview Mod/Sweep/Burst quick setting: Click any one of the three to quickly switch to the corresponding function and open its parameter setting page.
- Page 28 Sweep Sweep is a special frequency modulation (FM). When the frequency sweep is turned on, the carrier output frequency changes according to the sweep type (linear / logarithmic) and can be controlled by the trigger signal. Waveform Preview Sweep parameter setting area Mod/Sweep/Burst quick Quickly switch to carrier setting...
- Page 29 At each trigger, a specified number (N) of carrier cycles are output. Gated When the gating signal is valid, the carrier is output, otherwise it is not output. The gating signal can be active high or active low. SDG7000A Quick Start...
- Page 30 Digital Channel The SDG7000A provides 16-bit of digital bus output. The digital output function can be obtained by purchasing the optional digital output kits. There are two digital levels: LVTTL and LVDS. The kit providing LVTTL output converts the LVDS signal to LVTTL signal.
- Page 31 Display parameter setting: Parameters that can be displayed include Frequency, Period or Duty Cycle. Reference frequency setting: Input the desired input frequency here, and the frequency meter will automatically calculate the deviation between the measured value and the reference frequency. Clear statistics SDG7000A Quick Start...
- Page 32 Save & Recall The SDG7000A supports storing and recalling setting files, waveform files and firmware upgrade files. Storage and recalling locations include internal memory (local), external USB storage devices (such as USB flash disk) or network paths. The storage and recalling operations are...
- Page 33 Follow the instructions below to install the options. Utility > Options . Select the corresponding option name from the option list. Enter the option key in the text box below and click Install . Reboot the instrument. SDG7000A Quick Start...
- Page 34 We firmly believe that today SIGLENT is the best value in electronic test & measurement. Headquarters: SIGLENT Technologies Co., Ltd Add: Bldg No.4 & No.5, Antongda Industrial Zone, 3rd Liuxian Road, Bao'an District, Shenzhen, 518101,...
