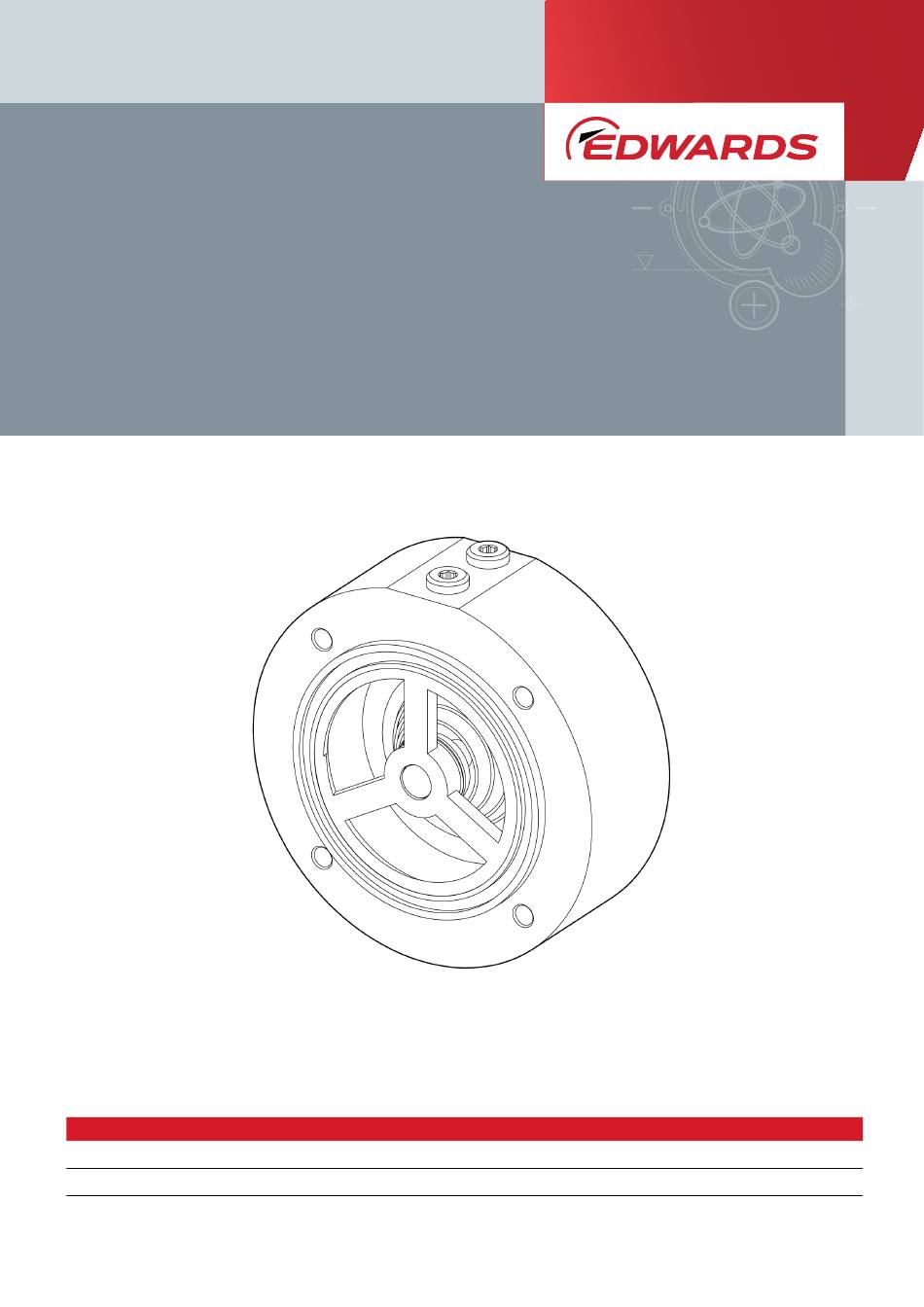

- Page 1 Non-return Valves EDS 200, EDS 300, EDS 480 INSTRUCTION MANUAL edwardsvacuum.com DESCRIPTION ITEM NUMBER Non-return valve for EDS 200 and EDS 300 A41896003 Non-return valve for EDS 480 A41896006 A41891860_A Original instructions...
-
Page 2: Copyright Notice
Copyright notice ©Edwards Limited 2021. All rights reserved. Trademark credit Edwards and the Edwards logo are trademarks of Edwards Limited, Innovation Drive, Burgess Hill, West Sussex RH15 9TW. Disclaimer The content of this manual may change from time to time without notice. We accept no liability for any errors that may appear in this manual nor do we make any expressed or implied warranties regarding the content. -
Page 3: Table Of Contents
6. Legal declarations......... 12 A41891860_A Page 3 04/2021 - ©Edwards Limited... -
Page 4: List Of Figures
Figure 1: Non-return valve for EDS 200 and EDS 300....... . -
Page 5: Safety And Compliance
“Trained personnel” for the operation of this equipment are ▪ skilled workers with knowledge in the fields of mechanics, electrical engineering, pollution abatement and vacuum technology and ▪ personnel specially trained for the operation of vacuum pumps. A41891860_A Page 5 04/2021 - ©Edwards Limited... -
Page 6: Safety Symbols
The safety symbols that follow are used on the product or in the product documentation. Warning/Caution An appropriate safety instruction must be followed or caution to a po- tential hazard exists. Warning - Hot surfaces Identifies a potential hazard from a hot surface. A41891860_A Page 6 04/2021 - ©Edwards Limited... -
Page 7: Description
Figure: Non-return valve for EDS 480 for the scope of delivery. The actual valve is the same for all models, only the mounting parts are different. Figure 1 Non-return valve for EDS 200 and EDS 300 Parts Item Quantity Centering ring, DN 40 KF, VA, FPM... - Page 8 Figure 2 Non-return valve for EDS 480 Parts Item Quantity Screw ISO 4762 M8 x 30 Washer ISO 7089-8-200 O-ring 80 x 3 FPM Lock screw G1/8” with gasket Check valve 932 - DN 65 Claws, DN 63/100 ISO-K A41891860_A Page 8 04/2021 - ©Edwards Limited...
-
Page 9: Installation
Connect a DN 63 ISO-K exhaust pipe to the non-return valve. Depending on the application we recommend you to carry out a final leak test. A41891860_A Page 9 04/2021 - ©Edwards Limited... -
Page 10: Operation
A41891860_A - Operation 4. Operation Proper operation of the non-return valve is only ensured in connection with clean processes. The operation of the valve must be checked regularly depending on the type of application. A41891860_A Page 10 04/2021 - ©Edwards Limited... -
Page 11: Disposal
A41891860_A - Disposal 5. Disposal Dispose of the non-return valve in accordance with all local and national safety and environmental requirements. A41891860_A Page 11 04/2021 - ©Edwards Limited... - Page 12 edwardsvacuum.com...
