IN HOUSE ASSEMBLY TEMPLATE

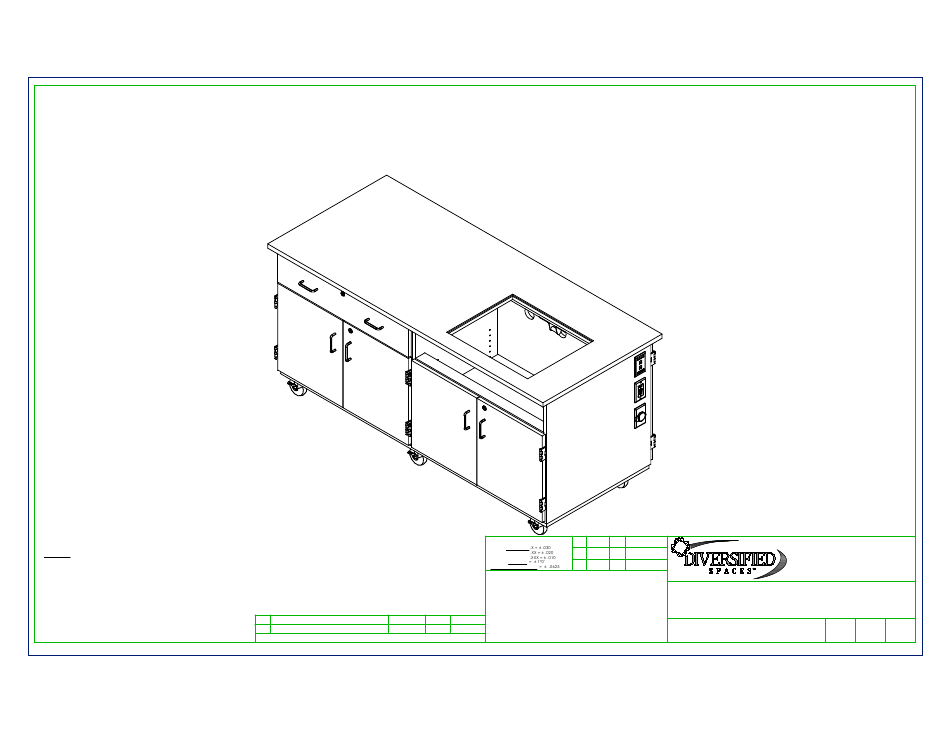

INTERACTIVE MOBILE MEDIA CABINET
NOTE:
1.
MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED
K:\AutoCAD\Assembly Instructions\4544.dwg, 11/2/2021 10:44:20 AM, DWG To PDF.pc3
4544 (OAK OR MAPLE)
ASSEMBLY INSTRUCTIONS
A
CREATED ASSEMBLY INSTRUCTIONS
2/10/15
EMR
REV.
DESCRIPTION
DESCRIPTION
DATE
DATE
NAME
NAME
REVISION LEVEL
ALL DIMENSIONS ARE IN INCHES UNLESS
DATE
DWN
2/10/15
EMR
NOTED OTHERWISE
BY:
DWN:
DECIMALS:
APR
DATE
BY:
APR:
ANGLES:
APR
DATE
CABINET SQUARENESS
BY:
APR:
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.
THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
-
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
ECN NO.
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
300 South Krueger Street
Suring, WI 54174
diversifiedwoodcrafts.com
TITLE:
INTERACTIVE MOBILE MEDIA CABINET
ASSEMBLY INSTRUCTIONS
DRAWING NUMBER:
SCALE:
4544
NTS
SHEET:
REVISION:
REV A
1 OF 7
