ASSEMBLY TEMPLATE

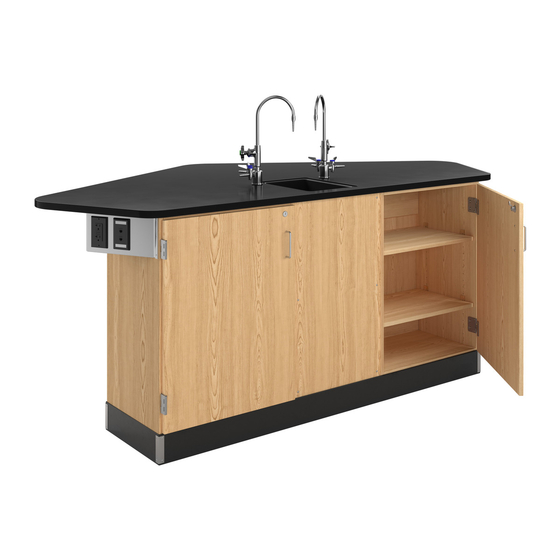

FORWARD VISION II
NOTE:
1.
MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED
K:\AutoCAD\Assembly Instructions\2944K & 2944KF.dwg, 10/29/2021 3:23:06 PM, DWG To PDF.pc3
2944K & 2944KF
ASSEMBLY INSTRUCTIONS
A
CREATED DRAWING
11/4/16
EMR
REV.
DESCRIPTION
DATE
NAME
REVISION LEVEL
DATE
ALL DIMENSIONS ARE IN INCHES UNLESS
DWN
11/4/16
EMR
NOTED OTHERWISE
DWN:
BY:
DECIMALS:
APR
DATE
BY:
APR:
DATE
ANGLES:
APR
CABINET SQUARENESS
BY:
APR:
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.
THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
-
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
ECN NO.
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
300 South Krueger Street
Suring, WI 54174
diversifiedwoodcrafts.com
TITLE:
FORWARD VISION II
ASSEMBLY INSTRUCTIONS
DRAWING NUMBER:
SCALE:
FORWARD VISION II
NTS
SHEET:
REVISION:
REV A
1 OF 13
Advertisement
Related Manuals for DIVERSIFIED SPACES FORWARD VISION II 2944K
Summary of Contents for DIVERSIFIED SPACES FORWARD VISION II 2944K
- Page 1 ASSEMBLY TEMPLATE FORWARD VISION II 2944K & 2944KF ASSEMBLY INSTRUCTIONS DATE ALL DIMENSIONS ARE IN INCHES UNLESS 11/4/16 NOTED OTHERWISE DWN: 300 South Krueger Street DECIMALS: NOTE: DATE APR: Suring, WI 54174 DATE ANGLES: CABINET SQUARENESS APR: diversifiedwoodcrafts.com MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED CONFIDENTIAL: ALL DESIGN RIGHTS RESERVED TITLE:...
-
Page 2: Tools Required
ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS TOOLS REQUIRED ITEMS INCLUDED PART # PART DESCRIPTION " WRENCH TOP, PHENOLIC, 1.00X88X46, (EITHER VARIES " SOCKET AND TORQUE WRENCH - OPTIONAL FIXTURE OR FLAT),LABV CONTACT CEMENT CABINET 24"W X 35"H X 15.25"D SCREW DRIVER REMOVABLE PANEL 18"W X 35"H X 0.75"D C-CLAMPS BACK PANEL... - Page 3 ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS ITEMS INCLUDED PART # PART DESCRIPTION SILICONE 100711 SILICONE,SEALANT,CLEAR RUBBER BASE MOLDING (SOLD BY FOOT) RUBBER BASE MOLDING 100283 STAINLESS STEEL CORNERS 100057 CORNERS-STAINLESS STEEL,BASE SCREW,#6X PTH SMS SS SCREW SCREWS - BASE 100064 BRACKET,ELEC BOX,DATA OUTLET ELECTRICAL BRACKET 231782 SCREWS - ELECTRICAL BRACKET...
- Page 4 ASSEMBLY TEMPLATE LEFT CABINET STEP 1: POSITION THE TWO CABINETS IN DESIRED LOCATION. MAKE SURE DOOR HINGES ARE ON THE OUTSIDE. IF YOU HAVE A "K" SERIES UNIT, PLACE UNIT OVER UTILITY RIGHT CABINET HOOKUPS. LEAVE ENOUGH ROOM IN BETWEEN CABINETS FOR REMOVABLE PANEL.
- Page 5 ASSEMBLY TEMPLATE TOP MOUNTING CLEAT - TYPICAL ATTACH BACK TO TOP AND BOTTOM MOUNTING CLEATS FROM INSIDE OF BOTH CABINETS (BOTTOM MOUNTING CLEAT NOT SHOWN) BACK CLEATS STEP 2: ATTACH REMOVABLE PANEL WITH HARDWARE PROVIDED TO THE CLEATS ON SIDES OF LEFT AND RIGHT CABINETS BY DRILLING PILOT HOLES THROUGH CLEATS.
- Page 6 ASSEMBLY TEMPLATE STEP 3: APRON LAYOUT WORKSTATION FRAME WITH SQUARE EDGES OF APRONS ON FLOOR AND BOTTOM OF LEGS FACING UP. ATTACH THE APRON TO APRON BRACKET ONTO THE LEG WITH HARDWARE PROVIDED. MAKE SURE BRACKET IT FLUSH TO TOP OF LEG. TIGHTEN NUTS USING A "...
- Page 7 ASSEMBLY TEMPLATE LEG LEVELER LEG BOOT STEP 4: SLIDE LEG BOOT ONTO LEG WITH FLARED END TOWARDS BOTTOM OF LEG. SCREW LEG LEVELER INTO T-NUT ON BOTTOM OF THE LEG. REPEAT FOR ALL LEGS. CLOSE UP OF LEG LEVELER AND LEG BOOT ASSEMBLY NOTE: DATE ALL DIMENSIONS ARE IN INCHES UNLESS...
- Page 8 ASSEMBLY TEMPLATE APRON TO CABINET BRACKET - TYPICAL STEP 5: WITH HELP FROM ANOTHER PERSON, STAND WORKSTATION FRAME UP. POSITION FRAME UP TO CABINET, MAKING SURE APRONS ARE SET IN " FROM SIDE OF CABINETS. ATTACH APRON TO CABINET BRACKET ONTO APRON WITH REMAINING SCREWS PROVIDED.
- Page 9 ASSEMBLY TEMPLATE STEP 6: ATTACH ELECTRICAL BOX BRACKET ONTO BOTH SIDES OF UNIT WITH HARDWARE PROVIDED. ATTACH COAT HOOKS IN DESIRED LOCATION ON BOTH SIDES OF UNIT (NOT SHOWN). ELECTRICAL BOX BRACKET - TYPICAL NOTE: DATE ALL DIMENSIONS ARE IN INCHES UNLESS 11/4/16 NOTED OTHERWISE DWN:...
- Page 10 ASSEMBLY TEMPLATE STEP 7: ADJUST LEG LEVELERS TO LEVEL WORKSTATION FRAME WITH CABINETS. APPLY SILICONE ADHESIVE TO TOP EDGES OF CABINET AND WINGS. PLACE TOP ON UNIT WITH PROPER OVERHANG (CENTERED ON WORKSTATION). CLAMP ON TOP TO WINGS TO REMOVE ANY WARP USING SHIMS AND C-CLAMPS, IF NEEDED, WHEN ALIGNING THE TOP (DO THIS BEFORE ADHESIVE ON EDGES SETS UP).
- Page 11 ASSEMBLY TEMPLATE STEP 8: IF YOU DO NOT HAVE A 2944K UNIT, SKIP TO STEP 9. APPLY SILICONE ADHESIVE TO THE SINK OPENING ON TOP. LOWER SINK INTO OPENING. WIPE OFF ANY EXCESS CAULK AND ALLOW TO SET. LET CURE FOR 6-12 HOURS. APPLY SILICONE ADHESIVE AROUND OPENING FOR SINK NOTE:...
- Page 12 ASSEMBLY TEMPLATE MULTI-SERVICE FIXTURE -TYPICAL STEP 9: ATTACH RUBBER MOLDING TO BASE OF WORKSTATION USING CONTACT CEMENT. SCREW STAINLESS STEEL CORNER BRACKETS ON EACH CORNER OVER BASE MOLDING WITH HARDWARE PROVIDED. IF YOU HAVE A 2944K UNIT, INSTALL MULTI-SERVICE FIXTURES IN THE HOLES PROVIDED ON TOP.
- Page 13 TROUBLESHOOTING YOUR GFCI ELECTRICAL RECEPTACLE: PLEASE NOTE: THROUGHOUT ANY OF THE FOLLOWING STEPS (PROCEDURES); IF YOU ARE NOT SURE YOU CAN DO THIS JOB SAFELY, AND COMPETENTLY, REFER THIS WORK TO QUALIFIED PROFESSIONAL! If your unit comes equipped with a GFCI (Ground Fault Circuit Interrupter) electrical receptacle, and there is no power in the receptacle please consider/check the following: •...
