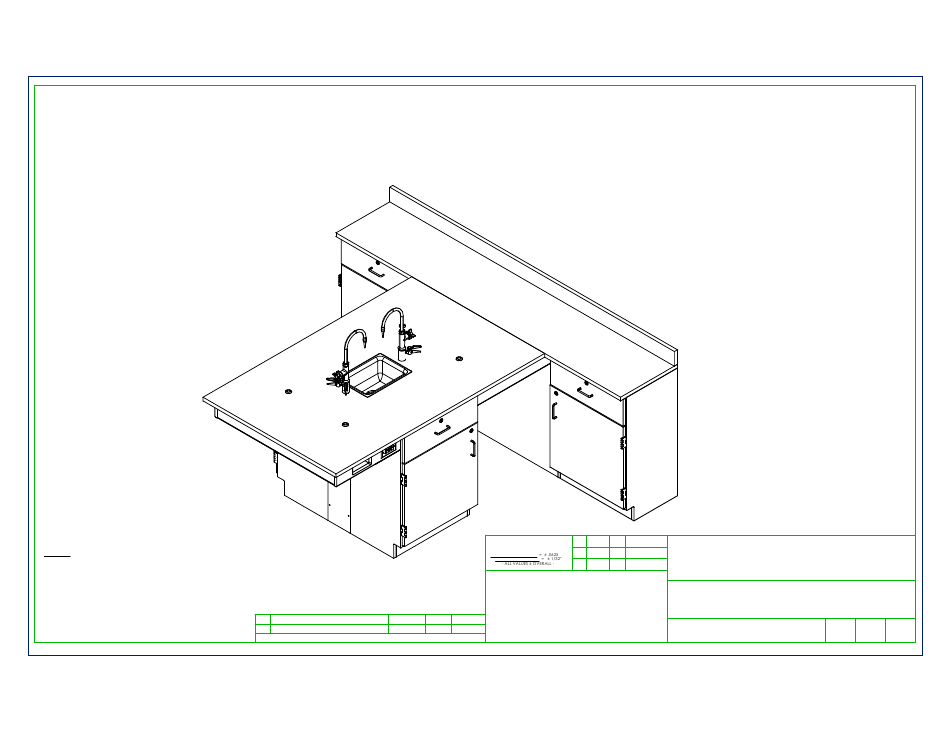

ASSEMBLY TEMPLATE
PERIMETER WORKSTATION
NOTE:
1.
MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED
K:\AutoCAD\Assembly Instructions\2810K & KF, 2820K & KF, 2830K & KF,
2840K & KF SERIES.dwg, 4/16/2020 3:26:31 PM, DWG To PDF.pc3
2810K, 2810KF, 2820K, 2820KF, 2830K, 2830KF, 2840K, & 2840KF SERIES
ASSEMBLY INSTRUCTIONS
A
CREATED DRAWING
12/1/16
REV.
DESCRIPTION
DATE
REVISION LEVEL
DWN
ALL DIMENSIONS ARE IN INCHES UNLESS
EMK
BY:
NOTED OTHERWISE
APR
CABINET SQUARENESS
BY:
FRACTIONAL VALUES
APR
BY:
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.
THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
EMK
-
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
NAME
ECN NO.
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
DATE
12/1/16
DWN:
DATE
APR:
DATE
APR:
TITLE:
PERIMETER WORKSTATION
ASSEMBLY INSTRUCTIONS
DRAWING NUMBER:
PERIMETER WORKSTATION
SCALE:
SHEET:
REVISION:
REV A
NTS
1 OF 18
Advertisement
Related Manuals for DIVERSIFIED SPACES PERIMETER WORKSTATION 2810K Series
Summary of Contents for DIVERSIFIED SPACES PERIMETER WORKSTATION 2810K Series
- Page 1 ASSEMBLY TEMPLATE PERIMETER WORKSTATION 2810K, 2810KF, 2820K, 2820KF, 2830K, 2830KF, 2840K, & 2840KF SERIES ASSEMBLY INSTRUCTIONS DATE 12/1/16 ALL DIMENSIONS ARE IN INCHES UNLESS DWN: NOTED OTHERWISE NOTE: DATE CABINET SQUARENESS APR: FRACTIONAL VALUES DATE APR: MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED CONFIDENTIAL: ALL DESIGN RIGHTS RESERVED TITLE:...
-
Page 2: Tools Required
ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS TOOLS REQUIRED ITEMS INCLUDED PART # PART DESCRIPTION CONTACT CEMENT TOP,(STYLE VARIES),1.00X42X66,BLK, SCREW DRIVER TOP A VARIES (EITHER FIXTURE OR FLAT) C-CLAMPS TOP,(STYLE VARIES),1.00X18X90,BLK TOP B VARIES SHIM STOCK (IF NEEDED) TOP,(STYLE VARIES),1.00X4.00X90,BLK TOP C VARIES CABINET (STYLE VARIES) 24"W X 35"H X CABINETS 16"D... - Page 3 ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS ITEMS INCLUDED PART # PART DESCRIPTION ELECTRICAL BOX 100033 ELECTRICAL BOX 3.00X2X2.5 DEEP ELECTRICAL OUTLET 100034 ELE,OUT,GFI,20A 125V,BLK FIXTURE,L65-WSA-DIV(MULTI-SERVICE) **FIXTURE - FAUCETS** 100074-BKR **FIXTURE - SINK** 100691 SINK,EPOXY L3,BLK **FIXTURE - SINK TRAP** 100056 SINK TRAP,PLASTIC ADJUSTABLE SINK STOPPER 1 , BLK **FIXTURE - SINK STOPPER**...
- Page 4 ASSEMBLY TEMPLATE B19 CABINET CLEATS ATTACHED TO RIGHT SIDE B18 CABINET STEP 1: CLEATS ATTACHED TO LEFT SIDE PLACE THE TWO CABINETS (CLEATS ATTACHED TO THE SIDES) AGAINST WALL. CLEATS SHOULD BE FACING EACH OTHER. LEAVE ENOUGH ROOM IN BETWEEN CABINETS FOR REMOVABLE PANELS.
- Page 5 ASSEMBLY TEMPLATE SMALL REMOVABLE PANEL TOP EDGE SHOULD BE FLUSH WITH TOP EDGE OF BOTH CABINETS STEP 2: ATTACH LARGE REMOVABLE PANEL TO THE CLEATS ON THE CABINETS FIRST. MAKE SURE BOTTOM EDGE OF PANEL IS FLUSH WITH BOTTOM EDGE OF CABINETS AND FRONT EDGE IS FLUSH WITH TOE KICK NOTCH.
- Page 6 ASSEMBLY TEMPLATE B18 CABINET CLEATS ATTACHED ON BACK STEP 3: PLACE THE OTHER TWO CABINETS (WITH CLEATS ATTACHED TO BACK) CENTERED IN FRONT OF CABINETS AGAINST WALL IN CORRECT LOCATION. LEAVE ENOUGH ROOM IN BETWEEN CABINETS FOR REMOVABLE PANELS. LEVEL CABINETS. ANCHOR TO FLOOR.
- Page 7 ASSEMBLY TEMPLATE WALL CABINETS - TYPICAL STEP 4: ATTACH TWO SMALL REMOVABLE PANELS IN BETWEEN THE TWO BACK TO BACK CABINETS WITH HARDWARE PROVIDED. PRE-DRILL HOLES IN CLEATS TO PREVENT CRACKING . REMOVABLE DATE PANEL - TYPICAL 12/1/16 ALL DIMENSIONS ARE IN INCHES UNLESS DWN: NOTED OTHERWISE BACK TO BACK...
- Page 8 ASSEMBLY TEMPLATE STEP 5: WITH HELP FROM ANOTHER PERSON, POSITION APRON ASSEMBLY UP TO THE SIDE OF THE TWO BACK TO BACK CABINETS SO IT IS CENTERED CORRECTLY AND FLUSH WITH TOP OF BASE CABINETS. PLACE THE L-BRACKETS IN CORRECT POSITION ON APRON ASSEMBLY AND SIDE OF CABINETS POSITION L-BRACKETS AND APRON ASSEMBLY HERE (SHOULD BE FLUSH WITH TOP EDGE OF CABINETS AND FRONT AND BACK OF APRONS).
- Page 9 ASSEMBLY TEMPLATE STEP 6: ATTACH L-BRACKETS TO SIDE OF CABINETS WITH HARDWARE PROVIDED. L-BRACKET - TYPICAL DATE 12/1/16 ALL DIMENSIONS ARE IN INCHES UNLESS DWN: NOTED OTHERWISE NOTE: DATE CABINET SQUARENESS APR: FRACTIONAL VALUES DATE APR: CONFIDENTIAL: ALL DESIGN RIGHTS RESERVED TITLE: THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED PERIMETER WORKSTATION...
- Page 10 ASSEMBLY TEMPLATE ATTACH APRON ASSEMBLY TO L-BRACKETS - TYPICAL STEP 7: WITH HELP FROM ANOTHER PERSON, PLACE APRON ASSEMBLY UP TO SIDE AND ATTACH TO L-BRACKETS WITH HARDWARE PROVIDED. SUPPORT THIS ASSEMBLY UNTIL TOP IS SECURED, IT IS NOT STRONG ENOUGH TO WITHSTAND WEIGHT UNTIL TOP IS ATTACHED .
- Page 11 ASSEMBLY TEMPLATE L-BRACKETS - TYPICAL ATTACHED TO APRONS, FLUSH WITH FRONT AND BACK EDGES OF APRONS AND TOP BACK EDGE FLUSH WITH TOP EDGE OF APRONS EDGE TOP EDGE STEP 8: APRON ATTACH REMAINING L-BRACKETS TO THE TWO APRONS. MAKE SURE BRACKETS ARE FLUSH WITH FRONT AND BACK EDGES OF APRONS AND TOP EDGE OF BRACKET IS FLUSH WITH TOP EDGE OF APRONS.
- Page 12 ASSEMBLY TEMPLATE WALL CABINET - TYPICAL STEP 9: ATTACH THE TWO APRONS IN BETWEEN THE BACK TO BACK CABINETS AND THE WALL CABINETS IN DESIRED LOCATION WITH REMAINING SCREWS PROVIDED. APRON - TYPICAL BACK TO BACK CLOSE UP OF APRONS ATTACHED IN BETWEEN BACK TO BACK CABINET- TYPICAL CABINETS AND WALL CABINETS SHOWN DATE...
- Page 13 ASSEMBLY TEMPLATE WALL CABINET - TYPICAL CLEAT ATTACHED TO LARGE REMOVABLE PANEL - TYPICAL REMAINING REMOVABLE PANEL - TYPICAL STEP 10: PLACE TWO REMAINING REMOVABLE PANELS TO THE CLEATS ATTACHED ON LARGE REMOVABLE PANEL AND SIDES OF THE BACK TO BACK CABINETS (NOT SHOWN). ATTACH WITH REMAINING SCREWS PROVIDED.
- Page 14 ASSEMBLY TEMPLATE DO NOT APPLY SILICONE ADHESIVE TO REMOVABLE PANELS STEP 11: APPLY SILICONE ADHESIVE TO TOP EDGES OF CABINETS AND WINGS. PLACE TOPS ON UNIT WITH PROPER OVERHANG (CENTERED ON WORKSTATION). APPLY A BEAD OF ADHESIVE TO EDGES OF THE TOPS (WHERE THE TWO TOPS MEET) AND PRESS FIRMLY TO CONNECT TOPS TOGETHER.
- Page 15 ASSEMBLY TEMPLATE APPLY SILICONE ADHESIVE HERE FOR BACKSPLASH TOP B STEP 12: IF YOU DO NOT HAVE A "K" SERIES UNIT, SKIP TO STEP 13. APPLY SILICONE ADHESIVE TO SINK OPENING ON TOP A. APPLY SILICONE LOWER SINK INTO OPENING. ADHESIVE AROUND APPLY SILICONE ADHESIVE TO CUT EDGE OF BACKSPLASH (TOP C).
- Page 16 ASSEMBLY TEMPLATE BACKSPLASH (TOP C) STEP 13: IF YOU HAVE ADJUSTABLE SHELVES IN YOUR UNIT, INSERT SHELF CLIPS IN DESIRED LOCATION. PLACE SHELVES ON CLIPS, MAKING SURE THEY SINK ARE LEVEL. ADJUSTABLE SHELF - TYPICAL DOORS REMOVED TO SHOW CLARITY DATE 12/1/16 ALL DIMENSIONS ARE IN INCHES UNLESS...
- Page 17 ASSEMBLY TEMPLATE STEP 14: MULTI-SERVICE FIXTURES - TYPICAL ATTACH RUBBER MOLDING TO BASE OF CABINETS USING CONTACT CEMENT. SCREW STAINLESS STEEL CORNER BRACKETS ON EACH CORNER OVER BASE MOLDING WITH HARDWARE PROVIDED. IF YOU HAVE A "K" SERIES UNIT, INSTALL MULT-SERVICE FIXTURES IN HOLES PROVIDED ON TOP.
- Page 18 TROUBLESHOOTING YOUR GFCI ELECTRICAL RECEPTACLE: PLEASE NOTE: THROUGHOUT ANY OF THE FOLLOWING STEPS (PROCEDURES); IF YOU ARE NOT SURE YOU CAN DO THIS JOB SAFELY, AND COMPETENTLY, REFER THIS WORK TO QUALIFIED PROFESSIONAL! If your unit comes equipped with a GFCI (Ground Fault Circuit Interrupter) electrical receptacle, and there is no power in the receptacle please consider/check the following: •...
