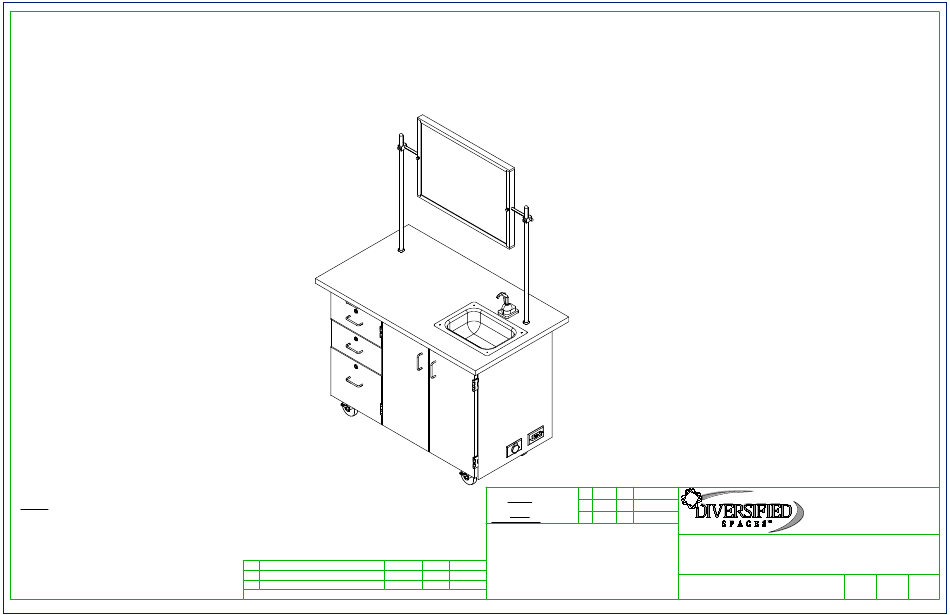

IN HOUSE ASSEMBLY TEMPLATE
NOTE:
1.
MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED
MOBILE LAB UNITS
4111, 4121, 4222, 4332, 4342, & 4352 SERIES (OAK OR MAPLE)
ASSEMBLY INSTRUCTIONS
B
TOTES ADDED TO 4222, CASTER INSTALLATION FIX
2/23/2024
A
CREATED ASSEMBLY INSTRUCTIONS
REV.
DESCRIPTION
REVISION LEVEL
ALL DIMENSIONS ARE IN INCHES UNLESS
NOTED OTHERWISE
DECIMALS: .X = ± .030
.XX = ± .020
.XXX = ± .010
ANGLES: = ± 1°0'
CABINET SQUARENESS = ± .0625
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.
RJM
1447 & 1461
THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
1/29/18
EMR
-
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
DATE
NAME
ECN NO.
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
DATE
DWN
1/29/18
EMR
BY:
DWN:
APR
DATE
BY:
APR:
APR
DATE
BY:
APR:
TITLE:
MOBILE LAB UNITS
ASSEMBLY INSTRUCTIONS
DRAWING NUMBER:
MOBILE LAB UNITS
300 South Krueger Street
Suring, WI 54174
diversifiedwoodcrafts.com
SCALE:
SHEET:
REVISION:
REV B
NTS
1 OF 10
Advertisement
Related Manuals for DIVERSIFIED SPACES 4111 Series
Summary of Contents for DIVERSIFIED SPACES 4111 Series
- Page 1 IN HOUSE ASSEMBLY TEMPLATE MOBILE LAB UNITS 4111, 4121, 4222, 4332, 4342, & 4352 SERIES (OAK OR MAPLE) ASSEMBLY INSTRUCTIONS DATE ALL DIMENSIONS ARE IN INCHES UNLESS 1/29/18 NOTED OTHERWISE DWN: 300 South Krueger Street DECIMALS: .X = ± .030 NOTE: DATE .XX = ±...
- Page 2 IN HOUSE ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS TOOLS REQUIRED ITEMS INCLUDED PART # PART DESCRIPTION " WRENCH CASTERS 100081 CASTER,4IN SWIVEL TOP PLATE, W/BRAKE ADJUSTABLE PLIERS CASTER,ASSY,HDWRE,16-SCREWS, SCREW DRIVER CASTER HARDWARE KIT 206509 16-NUTS **TOTE TRAY - SINGLE** 254150-CL SLIM LINE SINGLE DEPTH TRAY IN CLEAR **EXTENSION CORD** 100036 ELECTRICAL EXTENSION CORD...
- Page 3 IN HOUSE ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP DESCRIPTION PART NUMBER CASTERS 100081 CASTER HARDWARE KIT 206509 STEP 1: LAY CABINET ON ITS BACK. ATTACH CASTERS FROM INSIDE OF CABINET USING PROVIDED HARDWARE LISTED ABOVE. **SEE NOTE** IF YOUR CABINET DOES NOT HAVE TOTE TRAYS, A HAND PUMP, WATER FIXTURE, OR UPRIGHTS AND A CROSSBAR, SKIP TO STEP 7.
- Page 4 IN HOUSE ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP DESCRIPTION PART NUMBER TOTE TRAY - SINGLE 254150-CL STEP 2: TIP CABINET UP. PLACE TOTE TRAYS ONTO TOTE TRAY INSERTS. IF YOUR CABINET DOES NOT HAVE A HAND PUMP, WATER FIXTURE, OR UPRIGHTS AND A CROSSBAR, SKIP TO STEP 7. SLIM LINE SINGLE DEPTH TOTE TRAY - TYPICAL DOORS AND HARDWARE REMOVED...
- Page 5 IN HOUSE ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP STEP 3: DESCRIPTION PART NUMBER ATTACH HAND PUMP OR WATER FIXTURE TO PILOT HOLES LOCATED ON TOP WITH HARDWARE PROVIDED. EXTENSION CORD 100036 ATTACH ONE END OF THE " TUBING TO THE PUMP OR WATER HAND PUMP 100013 FIXTURE AND INSERT OTHER END INTO FRESH WATER CONTAINER...
- Page 6 IN HOUSE ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP DESCRIPTION PART NUMBER UPRIGHTS 100004 UPRIGHT - TYPICAL STEP 4: INSERT TAPERED END ON UPRIGHTS INTO ROD SOCKETS ON THE TOP. ROD SOCKETS - TYPICAL DATE ALL DIMENSIONS ARE IN INCHES UNLESS 1/29/18 NOTED OTHERWISE DWN:...
- Page 7 IN HOUSE ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP DESCRIPTION PART NUMBER CLAMPS 100003 STEP 5: SLIDE ROD CLAMPS OVER UPRIGHT AND TIGHTEN IN THUMB SCREW DESIRED LOCATION USING THUMB SCREWS PROVIDED ON CLAMPS. REPEAT ON OTHER UPRIGHT. ROD CLAMP CLOSE UP OF UPRIGHT DATE ALL DIMENSIONS ARE IN INCHES UNLESS 1/29/18...
- Page 8 IN HOUSE ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP DESCRIPTION PART NUMBER CROSS BAR 100007 STEP 6: SLIDE CROSS BAR THROUGH ONE CLAMP. CROSS BAR POSITION OTHER SIDE THROUGH THE OTHER CLAMP. IF YOU HAVE A MIRROR/MARKER BOARD, SEE MIRROR/MARKER BOARD ASSEMBLY INSTRUCTIONS FOR PROPER INSTALLMENT.
- Page 9 IN HOUSE ASSEMBLY TEMPLATE STEP 7: SET CABINET IN DESIRED LOCATION. COMPLETE UNIT SHOWN NOTE: DATE ALL DIMENSIONS ARE IN INCHES UNLESS 1/29/18 NOTED OTHERWISE DWN: 300 South Krueger Street DECIMALS: .X = ± .030 RECOMMENDED CLEANING INSTRUCTIONS AFTER EVERY USE: DATE .XX = ±...
- Page 10 TROUBLESHOOTING YOUR GFCI ELECTRICAL RECEPTACLE: PLEASE NOTE: THROUGHOUT ANY OF THE FOLLOWING STEPS (PROCEDURES); IF YOU ARE NOT SURE YOU CAN DO THIS JOB SAFELY, AND COMPETENTLY, REFER THIS WORK TO QUALIFIED PROFESSIONAL! If your unit comes equipped with a GFCI (Ground Fault Circuit Interrupter) electrical receptacle, and there is no power in the receptacle please consider/check the following: •...
