- Page 1 TERRESTRA - PROFILA - ACTIVA - CONTURA - INTEGRA SERIE 10 NOV - 2009 CBE S.r.l. Via Vienna, 4 - z.i. Spini di Gardolo (settore D) - 38121 Trento - Italy Tel. +39 0461 991598 - Fax +39 0461 960009 - www.cbe.it - cbe @cbe.it...
-
Page 3: Table Of Contents
INDEX TERRESTRA and PROFILA MAIN PARTS OF THE ELECTICAL SYSTEM ..........5 CONTROL PANEL “PC-100EM”... -
Page 5: Terrestra And Profila
TERRESTRA - PROFILA MAIN PARTS OF THE ELECTRIC AL SYSTEM CONTROL PANEL mains’ control, battery test, tank test, (PC-100 and PC-200) - clock function (only for “PC-200). 12V DISTRIBUTION BOX “DS-300EM “ main relais, battery parallel relais (12V - 70A), fridge relais, pump relais, car battery recharging device, protection fuses. -
Page 6: Control Panel "Pc-100Em

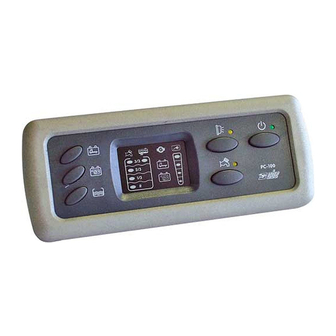

CONTROL PANEL “PC-100EM” - PROFILA P C - 1 0 0 LEGENDA Test button to check the drink water tank. Test button to check the leisure battery (B2). Test button to check the car battery (B1). It shows the drink water tank test, the blinking indicates the empty tank alarm. Leds to signal the drink water tank levels. -
Page 7: Control Panel "Pc-200T 3T Em
CONTROL PANEL “PC-200T EM” - T ERRESTRA LEGENDA Test button to set the clock. Test button to check the voltage of the car (B1) and leisure (B2) battery and to set the clock. Test button to check the level in % of the drink and waste water tank and to set the clock. External light switch, it switches automatically off when you star tup the engine. - Page 8 FUNCTIONS MINIMAL VOLTAGE CONTROL An electronic device switches all the 12V mains off, when the leisure battery reaches the minimal voltage level of 10V. It is possible to switch on again all the mains for 1 minute by switching off and then on again the main switch. They are also automatically switched on again when the voltage is >...
- Page 9 SETUP To enter the programming menu turn on the control panel with the switch ref. 5 while keeping pushed the buttons ref. 2 and 3. The programming is sequential: to shift to the next parameter push the button ref. 1. 1.
-
Page 10: Distribution Box "Ds-300Em
DISTRIBUTION BOX “DS-300EM” AW-P ZU-S AW-S 1 2 3 4 FA18 FA20 PROTECTION FUSES 5A fuse to give power to the awning light, it depends on the main switch and it switches automatically off when the engine is started. 10A fuse to give power to the water pump, it depends on the main switch. 10A fuse to give power to the heating / boiler, it depends on the main switch. - Page 11 + output electric step 5-6) + output gas mains’ supply (fridge, kitchen, boiler valve) + input signal “S” net coming WHITE from the CBE battery charger BLACK WASTE WATER TANK (AW-P) N.C. To connect to the waste water tank probe with screws. (Only for PROFILA)
-
Page 12: Switch Modules
FUNCTIONS CAR BATTERY (B1) RECHARGING When the battery charger is charging, an electronic device allows a recharging (max 2A) of the car battery (B1), the system gives priority to the leisure battery (B2). LEISURE BATTERY (B2) RECHARGING a) by alternator: through the separating relais, when the engine is started. The engine ignition controls electronically a small relais which controls the other relais: parallel, fridge, external light, etc... -
Page 13: Components Scheme "Pc-100 Em
COMPONENTS SCHEME “PC-100EM” - PROFILA... -
Page 14: Components Scheme "Pc-200T 3T Em
COMPONENTS SCHEME “PC200T 3t EM” - TERRESTRA... -
Page 15: Activa, Contura Und Integra
ACTIVA - CONTURA - INTEGRA MAIN PARTS OF THE ELECTRIC AL SYSTEM CONTROL PANEL - “PC-250EM” mains’ control, battery test, tank test, temperature test and clock function. 12V DISTRIBUTION BOX “DS-450EM” main relais, battery parallel relais (12V - 70A), fridge relais, pump relais, car battery recharging device, protection fuses and broken fuses’... -
Page 16: Control Panel "Pc250Em
CONTROL PANEL “PC-250EM” Motor C APTIONS Test button to check both internal and external temperature and to set the clock. Test button to check the voltage of the leisure battery (B2) and car battery (B1), to check charge and discharge currents of leisure battery and to set the clock. Test button to check the level in % of the drink and waste water tank and to set the clock. - Page 17 “PC-250EM” CONTROL PANEL CONNECTIONS "DS-450EM" DISTRIBUTION BOX BLACK To be connected to the 6 pole connector (ref.26) of the distribution box “DS-450EM”. BUS CONNECTION BLACK To be connect to the bus modules. BLACK NOT CONNECTED BLACK NOT CONNECTED...
- Page 18 It displays the batteries’ paralleling when engine is on or with car battery recharging unit. It displays that the 230V net is connected. It displays the recharging through solar panel (possible with a CBE solar regulator only). It displays that the main gas bottle is empty.
- Page 19 FUNCTIONS START ALARM Alarm signals acoustically and visually with the message “230V CONNECTED!” and then blinking of symbols ref. 6 and 7. Alarm is activated also with panel off when, while connected with the 230V net, start key is operated. EXTERNAL STEP ALARM (with ignition on) Alarm occurs also when panel is off if external step is out and motor is turn on.
- Page 20 FUNCTIONS TANKS a) Drink water tank with electronic probe: levels are displayed numerically in % and graphically with represented tank filling and graphically with represented tank filling. Waste water tank with electronic probe: levels are displayed numerically in % and graphically with represented tank filling and graphical with represented tank filling.
- Page 21 FUNCTIONS AMPEREMETER External amperometer module. - It measures the current of the leisure battery. - Measure range is -80A÷ +80A, the precision is 0,1A. - The measure happens through the differences among the charging and discharging currents; with “+” symbol indicates the recharging current; with the “-” symbol indicates a discharging current.
- Page 22 ALARM MESSAGES, TESTS AND CONFIRMATIONS It confirms the switching on of eis-ex. EIS-EX ON It confirms the switching off of eis-ex. EIS-EX OFF ENGINE HEATING It confirms that engine heating is switched on ENGINE HEATING It confirms that engine heating is switched off It confirms that awning light is switched on AWNING LIGHT ON It confirms that awning light is switched off...
-
Page 23: User's Settings
USER’S SETTINGS Disconnect 230V external power supply. To enter the set mode, press the “PROG” button (ref. 4) for more than 2 seconds from the main clock screen. To run through the menu press arrow keys (ref. 2 and 3). To select a function press the “PROG”... - Page 24 DISPLAY DISPLAY MENU à Select the function à -CONTRAST Display contrast setting (0÷100 %). -BACKLIGHT Display back light can be: -ON (always on) -OFF (always off) -AUTO (light switches off if no button is pressed for 10 seconds. TONES TONES MENU à...
-
Page 25: Manufacturer's Settings
MANUFACTURER’S SETTINGS To access the programming mode, turn the control panel on by keeping the «PROG » ref.4 button pushed. To run through the menu press arrow keys (ref. 2 and 3). To select a function press the «PROG» button (ref. 4). To go back to previous menu select «... - Page 26 GAS (optional) MENU à Select the function à -GAS BOTTLES Gas bottles control device activation/deactivation (ON / OFF). -GAS BOTTLE VALVE Gas bottles valve control device activation/deactivation (ON / OFF). -TANK Tank control device activation/deactivation (ON / OFF). -TANK’S VALVE Tank gas valve control device activation/deactivation (ON / OFF).
- Page 27 ENGINE HEATING ENGINE HEATING MENU à Activation / deactivation of engine heating device (ON / OFF). DIAGNOSIS DIAGNOSIS MENU à Select the function à -ANOMALY It indicates all possible communication errors of each activated bus module (n°ERR). -SOFTWARE VERSION It indicates the software version of each bus module. -SONDE ON It activates the power supply to all system probes for maintenance or troubleshooting procedures (ON/OFF).
-
Page 28: Ds450Em" Distribuition Board
“DS-450EM” DISTRIBUTION BOARD DIR1 DIR2 3A fuse for control panel power supply. 1A fuse to give power to the “EIS-EX” exit, it depends on the “EIS-EX” button. 5A fuse for engine’s heating power supply, it depends on the engine’s heating button. - Page 29 8-9) + exit "DIR2" (direct B2) WHITE SIGNALS CONTROL PANEL BLACK + input signal “S” net coming To connect to the 6 poles connector from the CBE battery charger of the control panel (rif. 01). free SIGNALS BUS CONNECTION BLACK 1-2) + input signal ignition.
- Page 30 WHITE SIGNALS 1) input step contact signal (-) 2) input RUN pump signal (+) 3) input button switched light (-) 4) input solar signal (only possible with CBE solar regulator). 5) input gas bottle signal (-) 6) N.C. WHITE MASSE...
-
Page 31: Battery Separator Bus-Module Connection
BATTERY SEPARATOR BUS-MODULE CONNECTION SIGNAL AMPEREMETER / DS-450EM WHITE N.C. To be connected to the bolt “+12V” rif.2 N.C. of the amperemeter and to the bolt Masse “+B2” rif.38 of the distribution box + input signal ignition “DS-450EM” N.C. N.C. C AR BATTERY “B1”... -
Page 32: Switch Mode Battery Charger "Cb516
SWITCH MODE BATTERY CHARGER “CB516” The CB 510/516 switch-mode battery charger has been expressly designed for the caravanning and boating sector and can automatically charge 12V lead batteries. The battery charger is protected against overtemperature and the 12V outputs are protected against short circuit and polarity inversion. -
Page 33: Specifications
SPECIFIC ATIONS INPUT TECHNICAL DATA Nominal voltage 230V ± Frequency 50 Hz Maximum power CB510 - 150 W CB516 - 250 W T 2A (glass 5x20) Protection fuse ref. F2 Security switch 230V luminous OUTPUT TECHNICAL DATA Maximum voltage 14,3 V (Pb-Gel) - 14,1V (Pb-Acido) Maintenance voltage... -
Page 34: Installation
- The installation requires the fixing of no. 4 pins that can be easily placed on the 4 sides. - The battery charger can be installed together with CBE 12V and 230V distribution panels, using the appropriate modular joints. -
Page 35: Switch Modules
SWITCH MODULES STEP-RECTRACT BUTTON Button placed on the dashboard to the step retractation. When motor gets turned on and the step is out, the buzzer gets on. STEP AND LIGHT SWITCHES Step switch. Awning Light-switch. Internal Light-swich. Step relay-box. -
Page 36: Components Scheme "Pc250Em
COMPONENTS SCHEME “PC250EM”... -
Page 37: Technical Documentation
TECHNICAL DOCUMENTATION ADVICE AND CHECKS IMPORTANT Maintenance interventions on the electric plant shall be carried out by specialized personnel. Before carrying out maintenances works disconnect the battery and the power supply line. BATTERIES Read with care the maintenance and use instructions provided by the manufacturer. The acid kept in the batteries is poisoning and corrosive. -
Page 38: Symbol And Wire Colours
SYMBOLS Car battery Duomatic Radio switch Leisure battery Gas valve Suction hood switch 2nd Leisure battery Pump Iso-Air switch Battery charger Brake pedal contact Iso-Air Drink water tank Step-comand Suction hood Waste water tank Step-retract button Marker lights Light Step limit switch 3 stop Two-way light Step buzzer... -
Page 50: Wiring Diagram Double Switch / Switch
DOPPEL SCHALTER DOUBLE SWITCH CBE 200264 EM 45-05-725 SCHALTER SWITCH CBE 200266 EM 45-05-724 Due to continued improvement, this specification is subject to change without prior notice. Foglio / Sheet Foglio / Sheet DOPPEL SCHALTER / SCHALTER Descrizione: 1 / 1... -
Page 51: Wiring Diagram Pump Heat Exchanger - L-Klasse Alde Heating
4-Poliger weisser Stecker 4-Poles white connector WAPU Wärmetauscher Heat exchanger Grundkabelbaum -12V +12V Main wiring harness Original DUCATO X250 Hydraulisches Ventil / Hydraulic Valve (original DUCATO) Taster / Push-Button (original DUCATO) Foglio / Sheet ANSCHLUSSPLAN PUMPE “MOTORWÄRMETAUSCHER” L-KLASSE ALDE-HEIZUNG Descrizione: 1 / 1 WIRING DIAGRAM PUMP HEAT EXCHANGER L-KLASSE ALDE HAETING Data... -
Page 53: Troubleshooting Guide For Battery Separator
7528%/(6+227,1* *8,'( )25 %$77(5< 6(3$5$725 &%( SQ 67$57 9ROWDJH 5HSODFH EDWWHU\ %!9" <(6 'LVFRQQHFW 9 $FWLYDWH LJQLWLRQ %DWWHULH V 3DUDOOHO DFWLYDWHG" 6WDUW XS HQJLQH <(6 %DWWHULH V %!9" SDUDOOHO $FFHOHUDWH DFWLYDWHG" <(6 <(6 %!9" 6WRS HQJLQH <(6 5HVWRUH DQG GHDFWLYDWH LJQLWLRQ LJQLWLRQ VLJQDO ,JQLWLRQ VLJQDO!9"... -
Page 55: Pin-Out Control Panels'cables
VIEW FROM THE BACK CABLE 6 WAY (for ACTIVA, CONTURA and INTEGRA) COLOR DESCRIPTION White 12V On/Off relay Brown Ground Green Bus Data Yellow Grey Command ON/OFF Button Pink +12V "B2" VIEW FROM THE BACK CABLE 16 WAY (for PROFILE and TERRESTRA) DESCRIPTION COLOR PC200...
