Pioneer SC-LX901B Service Manual page 3

1

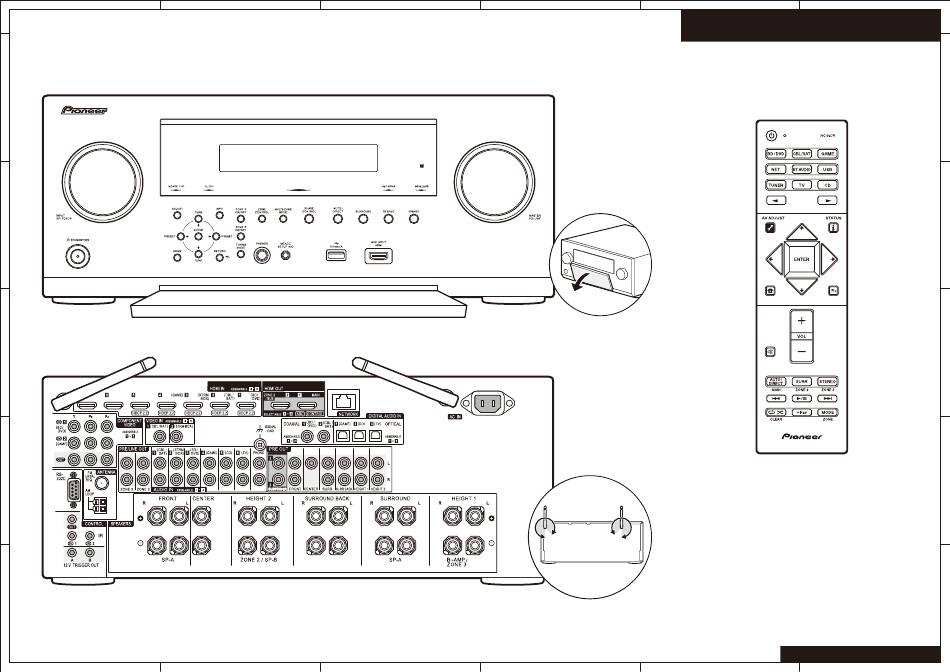

Front Panel
E
D
C
Rear Panel
B
A
Dimensions (W × H × D) : 435 mm × 185 mm × 441 mm (17-1/8" × 7-5/16" × 17-1/3")
Weight : 18.0 kg (39.7 lbs.) (North American), 18.3 kg (40.3 lbs.) (Others)
1
2 3
2 3
4 5
Accessory
1. Remote controller (RC-927R) ×1
Batteries (AAA/R03) ×2
2. Indoor FM antenna ×1
3. AM loop antenna ×1
4. Speaker setup microphone ×1
5. Power cord ×1
4 5
6
Panel
Remote Control Unit
RC-927R
SC-LX901
