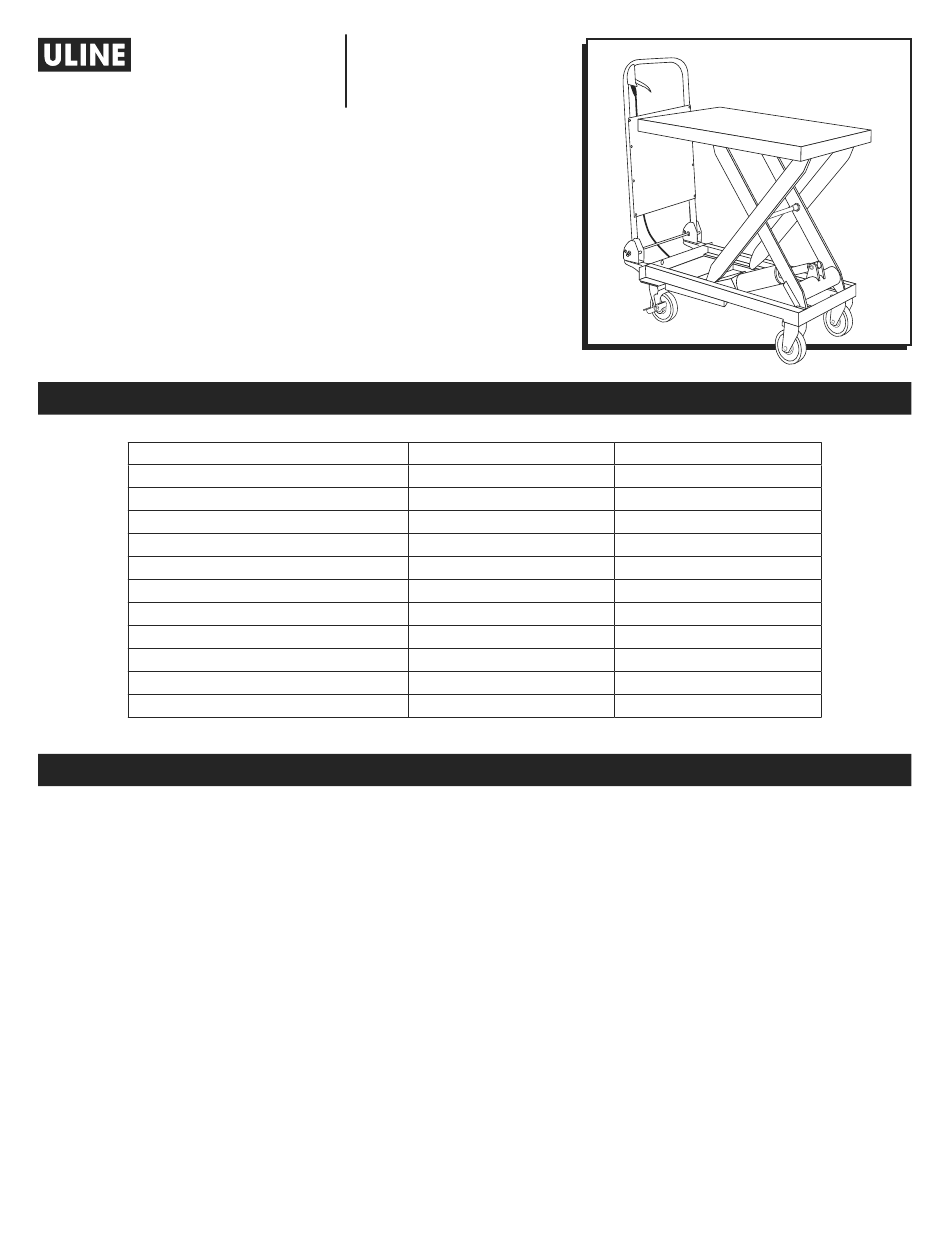

H-1486, H-1487
MANUAL LIFT TABLE –
32 x 20"
SPECIFICATIONS
Capacity
Height Raised
Height Lowered
Table Size
Total Height
Overall Length
Foot Pedal Cycles to Max Height
Wheel Diameter
Weight

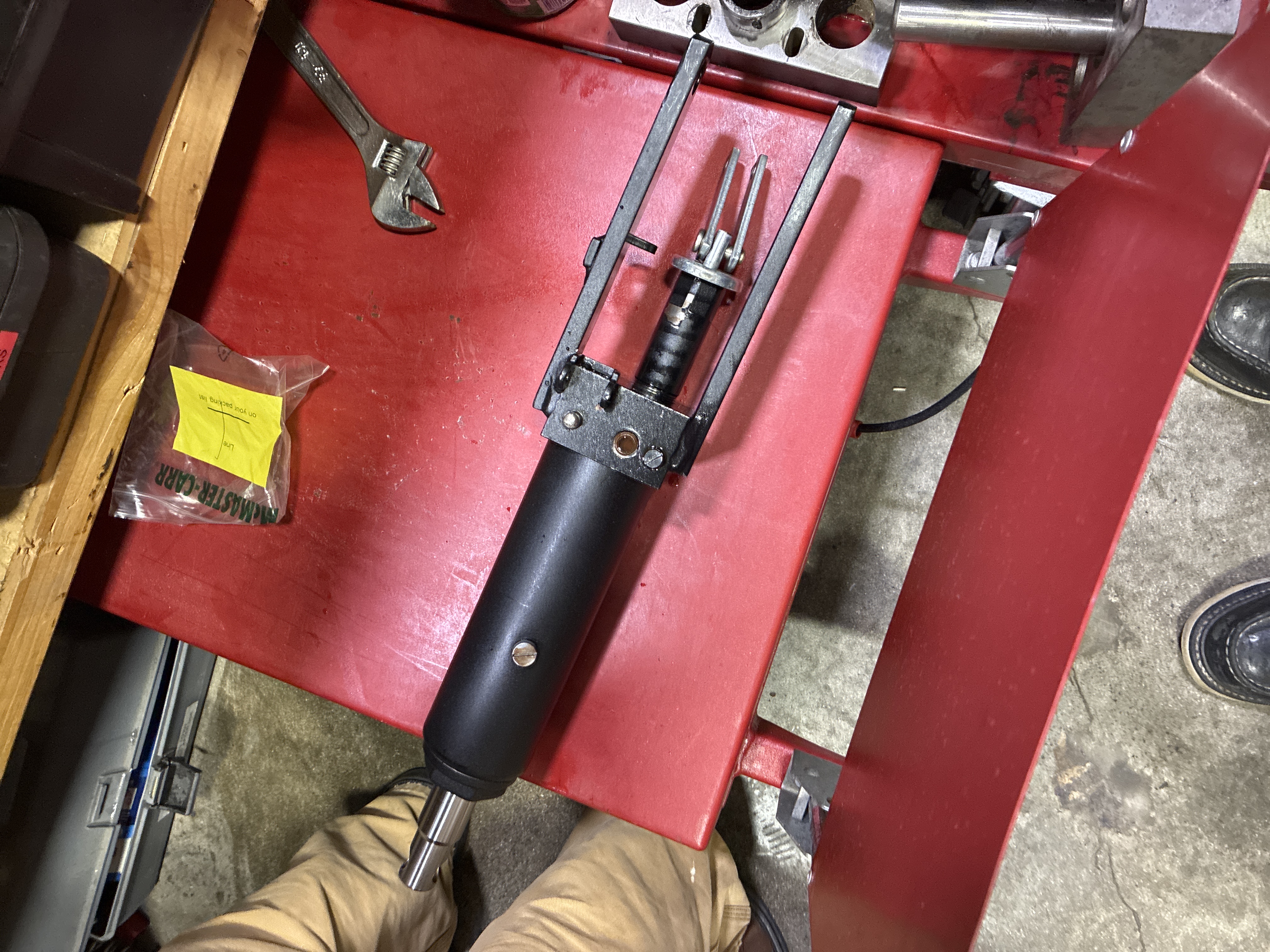

Working Volume of Oil Cylinder
Oil Capacity
1.
Read all instructions carefully before operating the
lift table.
2. DO NOT overload the lift table and always operate
it within the rated load. Overloading will cause
damage to the lift table and the operator.
3. DO NOT stand or sit on the table to work.
4. DO NOT put hands or feet under the table when
lowering.
5. Apply the brakes while loading to prevent the table
from moving.
6. The load must be distributed uniformly across the
whole table.
7.
DO NOT load loose or unstable loads onto the table.
8. DO NOT leave the table loaded for extended
periods of time.
PAGE 1 OF 10
1-800-295-5510
uline.com
TECHNICAL INFORMATION
H-1486
660 lbs.
35"
11"
32 x 20 x 2"
39"
37"
32
5"
165 lbs.
164 ml
250 ml
GENERAL INFORMATION
9. DO NOT move the truck while lifting.
10. The table should only be used on flat solid surfaces.
11. Make sure not to overload the table when it is in
12. When loading and unloading goods in the raised
13. When maintaining and repairing the table, the
Pour le français, consulter les pages 7 à 10.
H-1487
1,100 lbs.
32 x 20 x 2"
187 lbs.
250 ml
the raised position. The safety valve only works as
the table is lifted. Overloading in the raised position
may damage the table.
position, do not drag loads across the table.
This may cause offset loading and the table may
turn over.
stand bar should be used to support the fork arm in
order to prevent table from falling. There should not
be a load on table while maintaining and repairing
the table.
Para Español, vea páginas 4-6.
35"
11"
39"
37"
45
5"
164 ml
1124 IH-1486

Advertisement

loading
Need help?

Need help?

Do you have a question about the H-1486 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for U-Line H-1486

Summary of Contents for U-Line H-1486

  • Page 1 Para Español, vea páginas 4-6. Pour le français, consulter les pages 7 à 10. H-1486, H-1487 1-800-295-5510 uline.com MANUAL LIFT TABLE – 32 x 20" TECHNICAL INFORMATION SPECIFICATIONS H-1486 H-1487 Capacity 660 lbs. 1,100 lbs. Height Raised 35" 35" Height Lowered 11"...
  • Page 2 ASSEMBLY HANDLE LOWERING 1. The foot lever is dismantled when shipped. It must be attached to lift table before operating. 1. Table must be in lowered position. 2. These are folding tables. They can only be operated 2. Pull buckle toward the foot pedal. (See Figure 1) if the handle is in the upright position.

  • Page 3: Maintenance

    MAINTENANCE It is very important to conduct necessary maintenance 5. If there is any failure, the lift table should be and upkeep so as to prolong the service life and repaired at once before it is put into use again. safety of the lift table.

  • Page 4: Información Técnica

    H-1486, H-1487 800-295-5510 uline.mx MESA DE ELEVACIÓN MANUAL – 32 x 20" INFORMACIÓN TÉCNICA ESPECIFICACIONES H-1486 H-1487 Capacidad 660 lbs. 1,100 lbs. Altura Máxima 35" 35" Altura Mínima 11" 11" Tamaño de la Mesa 32 x 20 x 2" 32 x 20 x 2"...
  • Page 5 ENSAMBLE El pedal se desmonta para el envío. Debe BAJAR EL ASA colocarse en la mesa de elevación antes de La mesa debe estar en posición baja. hacerla funcionar. 2. Jale la hebilla hacia el pedal. (Vea Diagrama 1) 2. Estas son mesas plegables. Solo pueden funcionar si el asa está...

  • Page 6: Mantenimiento

    MANTENIMIENTO Es muy importante realizar el mantenimiento necesario 5. En caso de alguna falla, la mesa de elevación debe para prolongar la vida útil y la seguridad de la mesa repararse de inmediato antes de volver a utilizar. de elevación. Verifique la mesa de elevación antes de 6.

  • Page 7: Renseignements Techniques

    H-1486, H-1487 1 800 295-5510 uline.ca TABLE ÉLÉVATRICE MANUELLE – 32 X 20 po RENSEIGNEMENTS TECHNIQUES SPÉCIFICATIONS H-1486 H-1487 Capacité 660 lb 1 100 lb Hauteur élevée 35 po 35 po Hauteur abaissée 11 po 11 po Dimensions de la table...
  • Page 8 ASSEMBLAGE POUR RABATTRE LA POIGNÉE Le levier à pied est démonté lors de la livraison. Il doit être fixé sur la table élévatrice avant l'utilisation. La table doit être en position abaissée. 2. Ces tables sont pliantes. Elles ne peuvent être 2.

  • Page 9: Dépannage

    ENTRETIEN Il est très important d'effectuer l'entretien nécessaire 5. En cas de défaillance, la table élévatrice doit être afin d'améliorer la durée de vie et la sécurité de la réparée immédiatement avant d'être utilisée de table élévatrice. Veuillez vérifier les points suivants avant nouveau.
  • Page 10 DÉPANNAGE Figure 2 Figure 3 Figure 4 Insertion Câble avec Insertion adéquate inadéquate du gaine du câble câble 1 800 295-5510 uline.ca PAGE 10 OF 10 1124 IH-1486...
