U-Line H-5441 Quick Start Manual

π

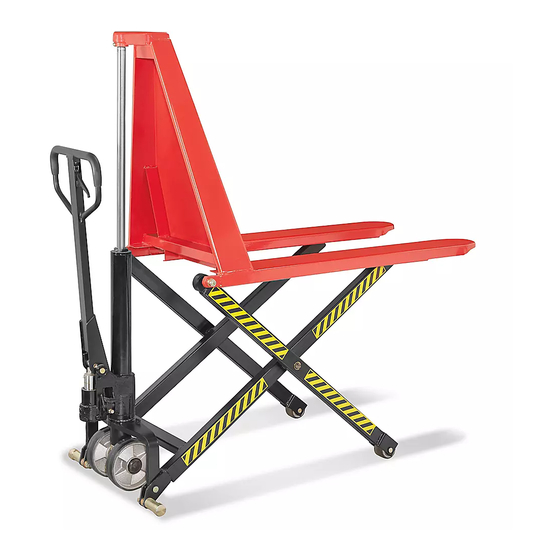

H-5441, H-5442
HEAVY DUTY
SCISSOR LIFT TRUCK
TOOL NEEDED
Flathead Screwdriver
WARNING! Read and understand instructions
here and on truck prior to use.

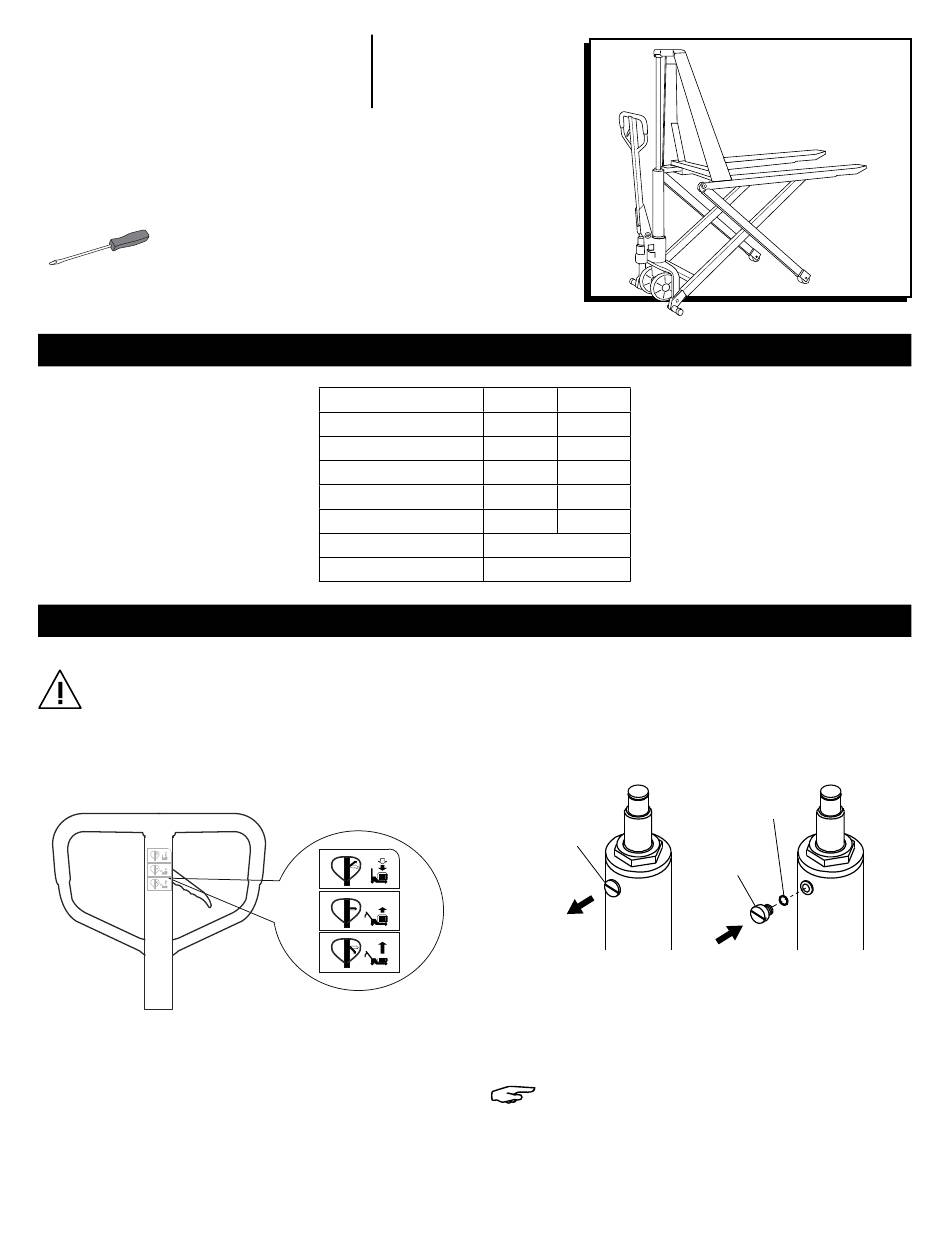

The control lever on the handle of the truck can be set in
three positions. (See Figure 1)
Figure 1
RELEASE
SLOW
LIFT
QUICK
LIFT
RELEASE = to lower the forks
SLOW LIFT = slowly raise the forks (use when moving load)
QUICK LIFT = quickly raise the forks
PAGE 1 OF 9
1-800-295-5510
uline.com
TECHNICAL DATA
MODEL H-5441
Capacity 3,000 lbs.
Min. Fork Height
Max. Fork Height
Fork Length
Overall Fork Width
Fork Wheel Diameter
Steering Wheel Diameter
OPERATION
1.
2. Install large breather cap and O-ring on pump unit.
RELEASE
SLOW
LIFT
QUICK
LIFT
3. If forks do not lift or lower while in the QUICK LIFT position,
4. If forks do not lower, turn the setting screw clockwise
Pour le français, consulter les pages 7-9.
H-5442
3,000 lbs.
3½" 3½"
31½" 31½"
46" 46"
27" 21"
3" Polyurethane
7" Polyurethane
Before use, remove shipping cap located at top of
pump unit using flathead screwdriver. (See Figure 2)
(See Figure 2)
Figure 2
Shipping
Cap
turn the setting screw counter-clockwise until the forks
elevate while pumping in the QUICK LIFT position.
until raising the control lever lowers the forks.
NOTE: When viewing the truck from the handle
side, the setting screw is located on the right
side of the pump, above the right wheel.
The truck will lower faster or slower depending
on how far in or out the screw is. (See Figure 3)
Para Español, vea páginas 4-6.
O-Ring
Breather
Cap
0321 IH-5441
