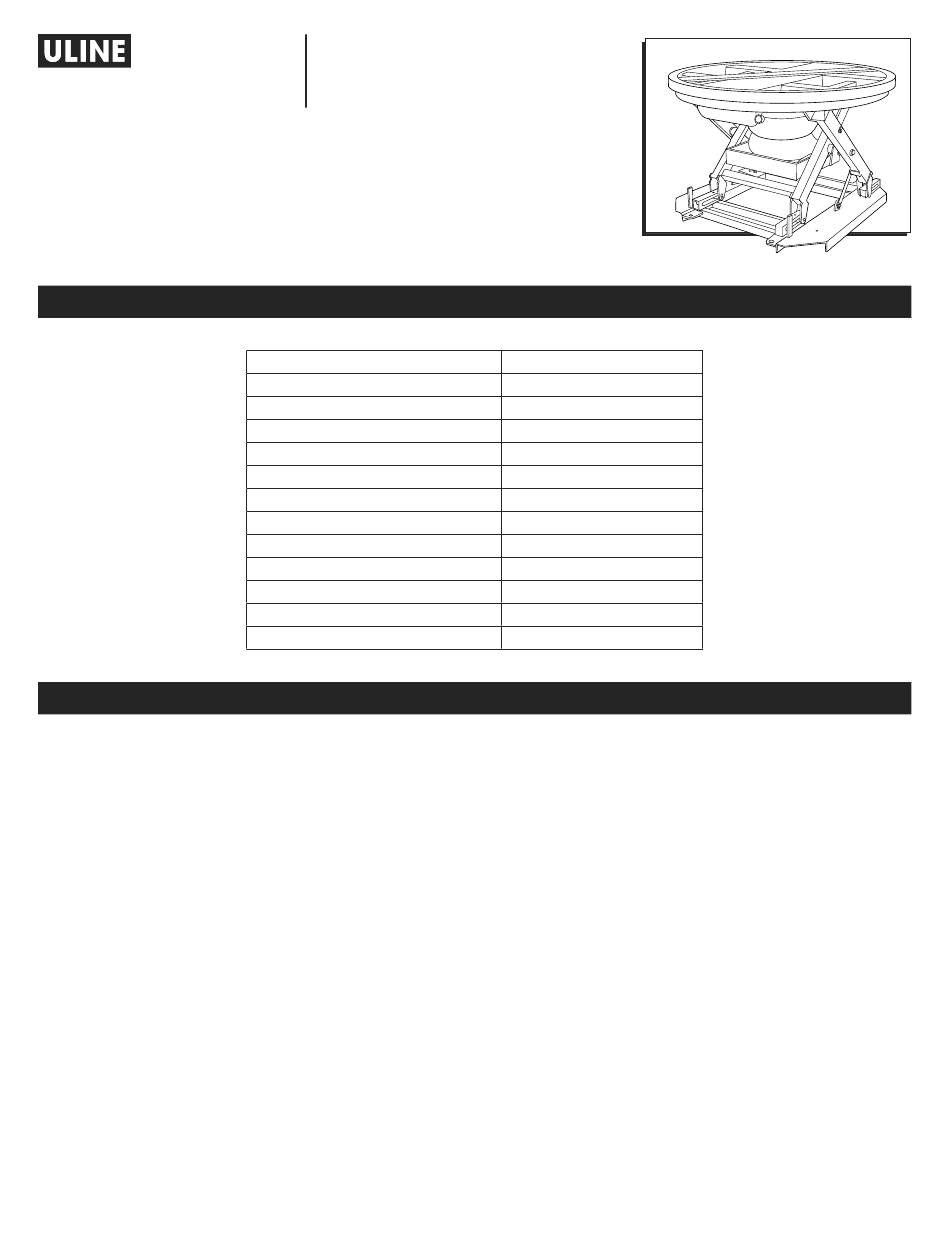

H-1820
PALLET POSITIONER
Users should apply sound principles of safety, training,
inspection and maintenance to the expected
operating environment.
Users should keep and maintain a copy of the
operating and maintenance instructions and ensure its
availability to operating and maintenance personnel.
It is the responsibility of the users to inspect and
maintain the machine as required to ensure
proper operation. The frequency of inspection
and maintenance should be based on operating
conditions and the severity of the operating
environment. Machinery that is not in proper operating
condition should be immediately removed from
service until repaired. Maintenance and repairs should
be made by a qualified person, and the repairs should
be in conformance with the recommendations in
these instructions.
PAGE 1 OF 24
1-800-295-5510
uline.com
TECHNICAL DATA
Height (Lowered)
Height (Raised)
Platform Diameter
Load Capacity
Base Frame
Product Weight
Load Dimensions
Air Source
Maximum System Pressure (Unloaded)
Maximum System Pressure (Loaded)
Pressure Relief Valve Setting
Operating Environment
Operating Temperature
9½"
27¾"
43⁄"
4,500 lbs.
36 x 36"
405 lbs.
50 x 50 x 72"
80 PSI
30 PSI
65 PSI
80 PSI
Indoor Only
0ºF – 120ºF
SAFETY
Before starting adjustments and repairs on the
machine, take the following precautions
(as applicable):
• Remove the load from the platform.
• Relieve air pressure from all circuits before
loosening or removing any components.
• Set all controls in the "off" position and secure all
operating features from inadvertent motion by
brakes, blocks or other means.
• Follow precautions and directions as specified by
the instructions and warnings on the unit.
• Use only replacement parts or components
approved by the original manufacturer.
User should ensure only qualified personnel inspect
and maintain the machine.
Para Español, vea páginas 9-16.
Pour le français, consulter les pages 17-24.
0325 IH-1820

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-1820 and is the answer not in the manual?

Questions and answers

Summary of Contents for U-Line H-1820

  • Page 1 Para Español, vea páginas 9-16. Pour le français, consulter les pages 17-24. H-1820 1-800-295-5510 uline.com PALLET POSITIONER TECHNICAL DATA Height (Lowered) 9½" Height (Raised) 27¾" Platform Diameter 43⁄" Load Capacity 4,500 lbs. Base Frame 36 x 36" Product Weight 405 lbs.
  • Page 2 SAFETY CONTINUED User who directs or authorizes an individual to operate Before operation, the operator should: the machine should ensure that the individual has • Read and understand the operating instruction(s) been: and user's safety rules or have them explained. •...
  • Page 3: Label Placement

    SAFETY CONTINUED • The operator should comply with the means and • Any problem(s) or malfunction(s) that affect the procedures provided to protect against use by an safety of operations should be repaired prior to the unauthorized person(s). use of the machine. •...
  • Page 4: Installation

    FEATURES DESCRIPTION DESCRIPTION Rotator Ring Bearing Lower Link Bar Air Pressure Gauge Rotator Ring Pivot Pin and Thrust Washer Manual Discharge Valve Rotator Ring Valve Stem Upper Roller and Rolller Track Pressure Relief Valve Down Stop Pressure Tank Fork Pocket Actuator Maintenance Device Pin with Minimum Load Assist Spring...
  • Page 5: Operation

    AIR SYSTEM FEATURES SIDE VIEW DESCRIPTION Valve Stem Access Pressure Gauge Manual Discharge Valve Pressure Tank Actuator Pressure Relief Valve Hose to Actuator SETUP 1. Clear area of all packing material and other debris. WARNING! Do not inflate the system to more than 30 PSI while unloaded and at the fully 2.
  • Page 6 OPERATION CONTINUED TRANSPORTING THE MACHINE WARNING! Do not push/roll a load off the edge of the platform. This may cause the machine NOTE: This machine may be moved while to rebound quickly and could lead to injury or loaded or unloaded. damage to the machine.
  • Page 7: Maintenance

    MAINTENANCE Before use each day or at the beginning of each shift, 2. Insert the pins into the holes in the top of the roller the machine should be given a visual inspection and track (both sides) to prevent rollers from going functional test including but not limited to the following: forward and lowering the platform.
  • Page 8: Troubleshooting

    MAINTENANCE CONTINUED EVERY SIX MONTHS • Apply PTFE lubricant to all pivot points, rollers, thrust washer and bearings. (See Figures 4-5) Figure 4 Figure 5 Minimum Load Assist Spring Minimum Load Assist Spring * Upper roller track removed for visibility. TROUBLESHOOTING OPERATING ISSUE PROBABLE CAUSES...
  • Page 9: Datos Técnicos

    H-1820 800-295-5510 uline.mx POSICIONADOR DE TARIMAS DATOS TÉCNICOS Altura (Mínima) 9½" Altura (Máxima) 27¾" Diámetro de Plataforma 43⁄" Capacidad de Carga 4,500 lbs. Armazón Base 36 x 36" Peso del Producto 405 lbs. Dimensiones de Carga 50 x 50 x 72"...
  • Page 10 CONTINUACIÓN DE SEGURIDAD El usuario que instruya o autorice a un individuo • Funcionamiento real de la máquina. Bajo la operar la máquina debe asegurarse de que el dirección de una persona capacitada, el aprendiz individuo se haya: debe operar la máquina durante un periodo suficiente de tiempo para mostrar aptitud en el •...
  • Page 11: Colocación De Las Etiquetas

    CONTINUACIÓN DE SEGURIDAD • La capacidad clasificada no se debe exceder • Si un operador se encuentra con alguna cuando las cargas se transfieren a la plataforma. posible falla o cualquier peligro o condición potencialmente insegura relacionada a la • El operador debe asegurar que el área que rodea capacidad, uso indicado o funcionamiento, este la máquina esté...
  • Page 12: Instalación

    CARACTERÍSTICAS DESCRIPCIÓN DESCRIPCIÓN Balero del Anillo Giratorio Barra de Enlace Inferior Clavija del Pivote del Anillo Giratorio y Manómetro de Aire Rondana de Empuje Válvula de Descarga Manual Anillo Giratorio Vástago de la Válvula Rodillo Superior y Riel del Rodillo Válvula de Escape de Presión Tope Inferior Tanque de Presión...
  • Page 13 FUNCIONES DEL SISTEMA DE AIRE VISTA LATERAL DESCRIPCIÓN Acceso al Vástago de la Válvula Manómetro Válvula de Descarga Manual Tanque de Presión Accionador Válvula de Escape de Presión Manguera a Accionador CONFIGURACIÓN Despeje el área de todo material de empaque y ¡ADVERTENCIA! No infle el sistema a más de otros desechos.
  • Page 14 CONTINUACIÓN DE FUNCIONAMIENTO TRANSPORTAR LA MÁQUINA ¡ADVERTENCIA! No empuje/haga rodar una carga del borde de la plataforma. Esto NOTA: Esta máquina se puede mover mientras podría ocasionar que la máquina rebote se carga o descarga. rápidamente y provocar lesiones o daños a la máquina.
  • Page 15: Mantenimiento

    MANTENIMIENTO Antes de utilizarla, todos los días o al comienzo de 2. Inserte los pines en los orificios en la parte superior cada turno, la máquina debe recibir una inspección del riel del rodillo (ambos lados) para evitar que visual y prueba funcional que incluye pero no se limita los rodillos vayan hacia adelante y bajen la a los siguientes: plataforma.
  • Page 16: Solución De Problemas

    CONTINUACIÓN DEL MANTENIMIENTO CADA SEIS MESES • Aplique lubricante de PTFE a todos los puntos de pivote, rodillos, rondana de empuje y casquillos. (Vea Diagramas 4-5) Diagrama 4 Diagrama 5 Resorte de Asistencia de Carga Mínima Resorte de Asistencia de Carga * Riel del rodillo superior removido para visibilidad.
  • Page 17: Données Techniques

    H-1820 1 800 295-5510 uline.ca POSITIONNEUR DE PALETTE DONNÉES TECHNIQUES Hauteur (abaissée) 9 ½ po Hauteur (élevée) 27 ¾ po Diamètre de la plateforme 43 ⁄ po Capacité de charge 4 500 lb Cadre de la base 36 x 36 po...
  • Page 18 SÉCURITÉ SUITE L'utilisateur qui dirige ou autorise une personne à • L'utilisation effective de la machine. Sous la utiliser la machine doit s'assurer que cette personne a direction d'un individu qualifié, la personne été : nouvellement formée doit utiliser la machine pendant une période suffisamment longue pour •...
  • Page 19: Emplacement Des Étiquettes

    SÉCURITÉ SUITE • L'opérateur doit immédiatement signaler à un • Il est interdit de modifier ou d'altérer la machine, superviseur tout problème ou dysfonctionnement de créer des structures s'y joignant ou de fixer qui se manifeste pendant le fonctionnement de des accessoires sur la machine ou le système de la machine.
  • Page 20: Caractéristiques

    CARACTÉRISTIQUES DESCRIPTION DESCRIPTION Roulement de l'anneau du rotateur Barre de liaison inférieure Axe d'articulation de l'anneau du rotateur et Manomètre de pression d'air rondelle de butée Soupape manuelle d'évacuation d'air Anneau du rotateur Tige de soupape Rouleau supérieur et chemin de roulement Soupape de surpression Butée inférieure Réservoir sous pression...
  • Page 21: Mise En Place

    CARACTÉRISTIQUES DU SYSTÈME D'AIR VUE LATÉRALE DESCRIPTION Accès à la tige de soupape Manomètre Soupape manuelle d'évacuation d'air Réservoir sous pression Actionneur Soupape de surpression Tuyau vers l'actionneur MISE EN PLACE Débarrassez la zone de tous les matériaux AVERTISSEMENT! Ne gonflez pas le système ARRÊT d'emballage et autres débris.
  • Page 22: Entretien

    FONCTIONNEMENT SUITE AVERTISSEMENT! Ne poussez pas/ne faites pas REMARQUE : N'insérez pas le chariot élévateur ARRÊT rouler une charge par-dessus le bord de la ou le gerbeur dans la structure de la base, au plateforme. Cela risque de faire rebondir risque d'endommager la machine.
  • Page 23 ENTRETIEN SUITE ENTRETIEN HEBDOMADAIRE AVERTISSEMENT! Ne vous placez pas sous la ARRÊT plateforme si celle-ci n'a pas été bloquée au • Inspectez les rouleaux supérieurs et inférieurs, les préalable pour éviter qu'elle ne s'abaisse. axes et les bagues des rouleaux, les ressorts de soutien pour charge minimale et les chemins de AVERTISSEMENT! L'air sous haute pression peut roulement.
  • Page 24: Dépannage

    ENTRETIEN SUITE ENTRETIEN TOUS LES SIX MOIS • Appliquez du lubrifiant PTFE sur tous les points de pivot, les rouleaux, la rondelle de butée et les roulements. (Voir Figures 4 et 5) Figure 4 Figure 5 Ressort de soutien pour charge minimale Ressort de soutien pour charge minimale * Le chemin de roulement supérieur a été...
